Oxygen Sensor: Locations

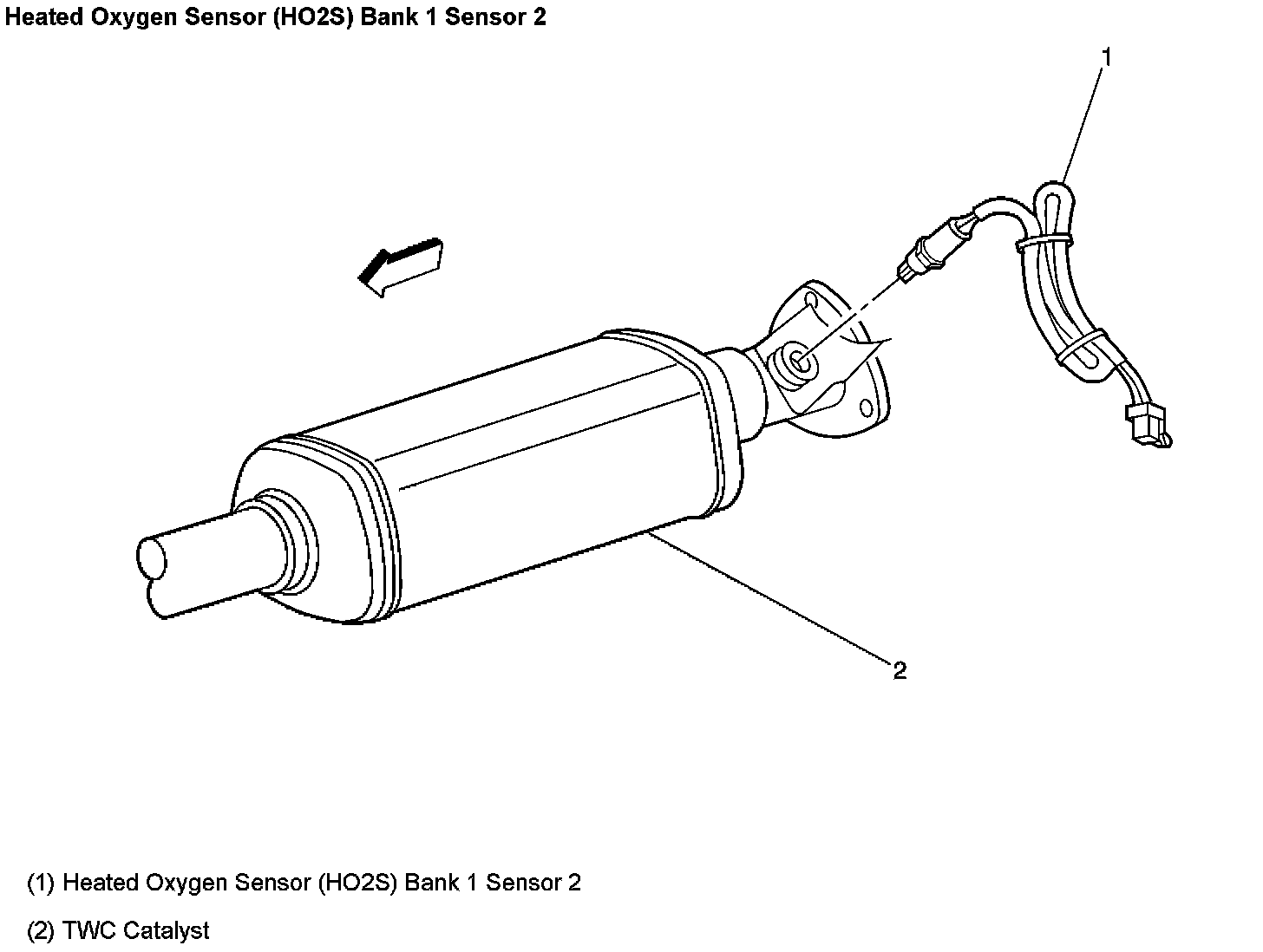

Heated Oxygen Sensor (HO2S) Bank 1 Sensor 2:

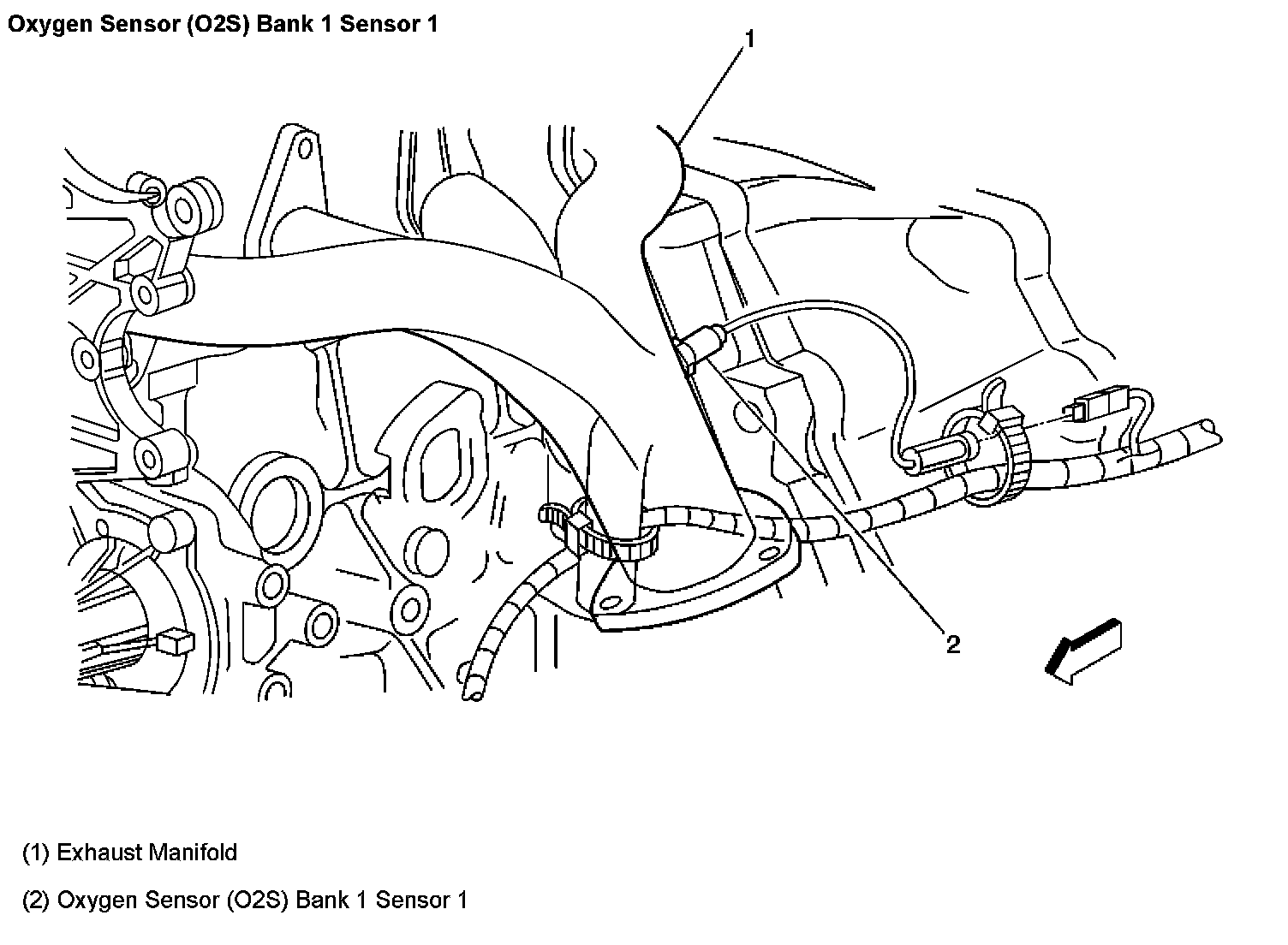

Oxygen Sensor (O2S) Bank 1 Sensor 1:



Transmission Range Switch (W/ A/T):



Manual Transmission:
