Entertainment Component Views

Fig 1: Instrument Panel Cluster Components

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Headlamp Switch
2	Instrument Panel Cluster (IPC)
3	Radio
4	Inflatable Restraint I/P Module
5	Auxiliary Power Outlet Front #2
6	Cigar Lighter
7	HVAC Control Module
8	Auxiliary Power Outlet Front #1
9	Noise Compensation Microphone
10	Ignition Switch

Fig 2: Driver Door Components (Premium Radio)

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Outside Rearview Mirror Switch
2	Speaker - LF Door Midrange
3	S501
4	C500
5	C501
6	S500
7	Outside Rearview Mirror - Driver
8	Speaker - LF Door
9	S502
10	Window Motor - Driver
11	Inflatable Restraint Side Impact Sensor (SIS) - Left
12	Door Latch Assembly - Driver

Fig 3: Passenger Door Components (Premium Radio)

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Speaker - RF Door Midrange
2	Door Latch Assembly - Passenger
3	Passenger Door
4	Inflatable Restraint Side Impact Sensor (SIS) - Right
5	Window Motor - Passenger
6	S602
7	Speaker - RF Door
8	Outside Rearview Mirror - Passenger
9	S600
10	C601
11	C600
12	S601

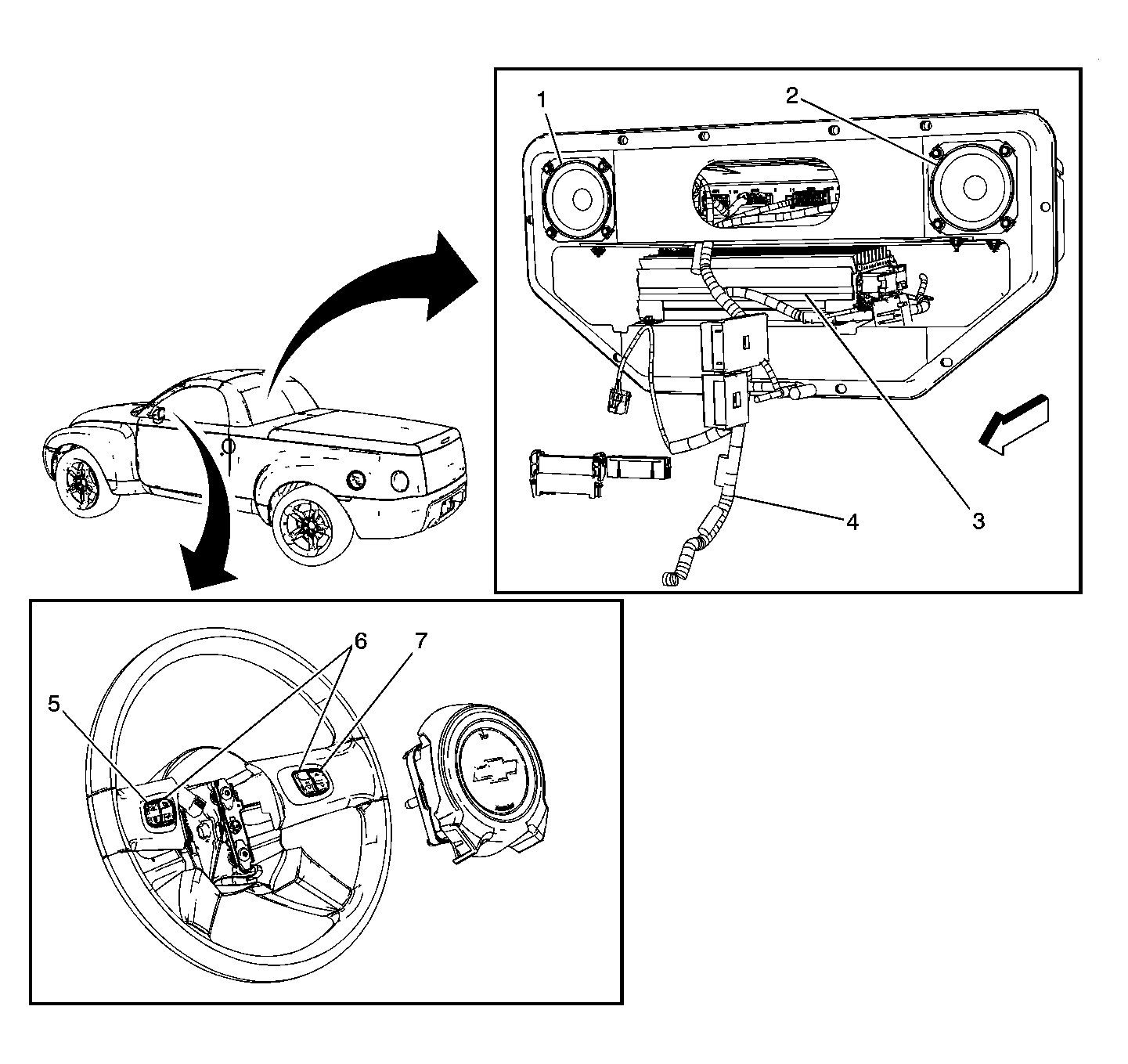

Fig 4: Rear Speakers and Audio Amplifier Components

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Speaker - RR
2	Speaker - LR
3	Audio Amplifier
4	Body Harness
5	Steering Wheel Controls - Left
6	Steering Wheel Controls Assembly
7	Steering Wheel Controls - Right
