Installation Procedure

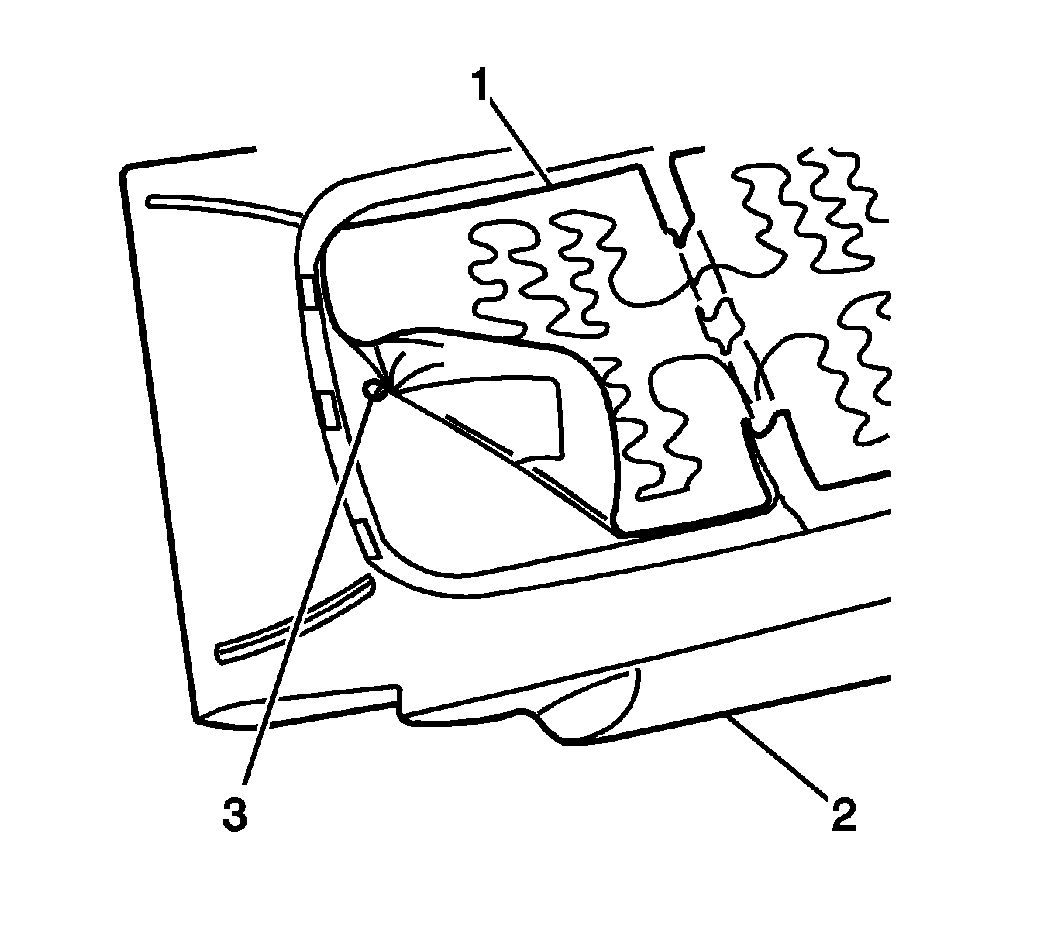

    Fig 1: View Of Seat Heater Element
    GM1293752Courtesy of GENERAL MOTORS CORP.
  1. Install the heater element electrical harness through the hole (3) in the pad.
  2. Install the adhesive-backed heater element (1) to the pad (2) by pressing in place.
    3. Fig 2: Hog Rings And Loop Fasteners
    GM828143Courtesy of GENERAL MOTORS CORP.
  3. Install the cover (2) to the cushion (3) with hog rings (1).
  4. Install the cover and cushion to the seat back assembly.
  5. Install the seat back cover tabs around the inside of the head restraint support.
  6. Install the seat back panel. Refer to Seat Back Panel Replacement - Front .
  7. Install the left and right seat back cushion side bolster panels. Refer to Seat Back Cushion-Side Bolster Panel Replacement .
    8. Fig 3: Identifying Seat Back Panel & Retaining Tabs
    GM1200378Courtesy of GENERAL MOTORS CORP.
  8. Install the seat back cover retaining tabs (2) along each side of the seat back panel (1).
  9. Install the seat back cover retaining tabs (3) along the bottom of the seat back panel.
    10. Fig 4: Identifying Seat Back Cover Tabs & Upper Seat Back Panel
    GM1200375Courtesy of GENERAL MOTORS CORP.
  10. Install the seat back cover tabs (1) around the upper seat back panel (2).
  11. Install the seat belt guide. Refer to Seat Belt Guide Replacement - Front .
  12. Install the seat back release handle. Refer to EZ Entry Seat Manual Release Knob Replacement .
  13. Install the chrome head restraint trim to the head rest. Refer to Chrome Head Restraint Trim Replacement .
  14. Install the seat in the vehicle. Refer to Seat Replacement .
