Memory Seats Schematics

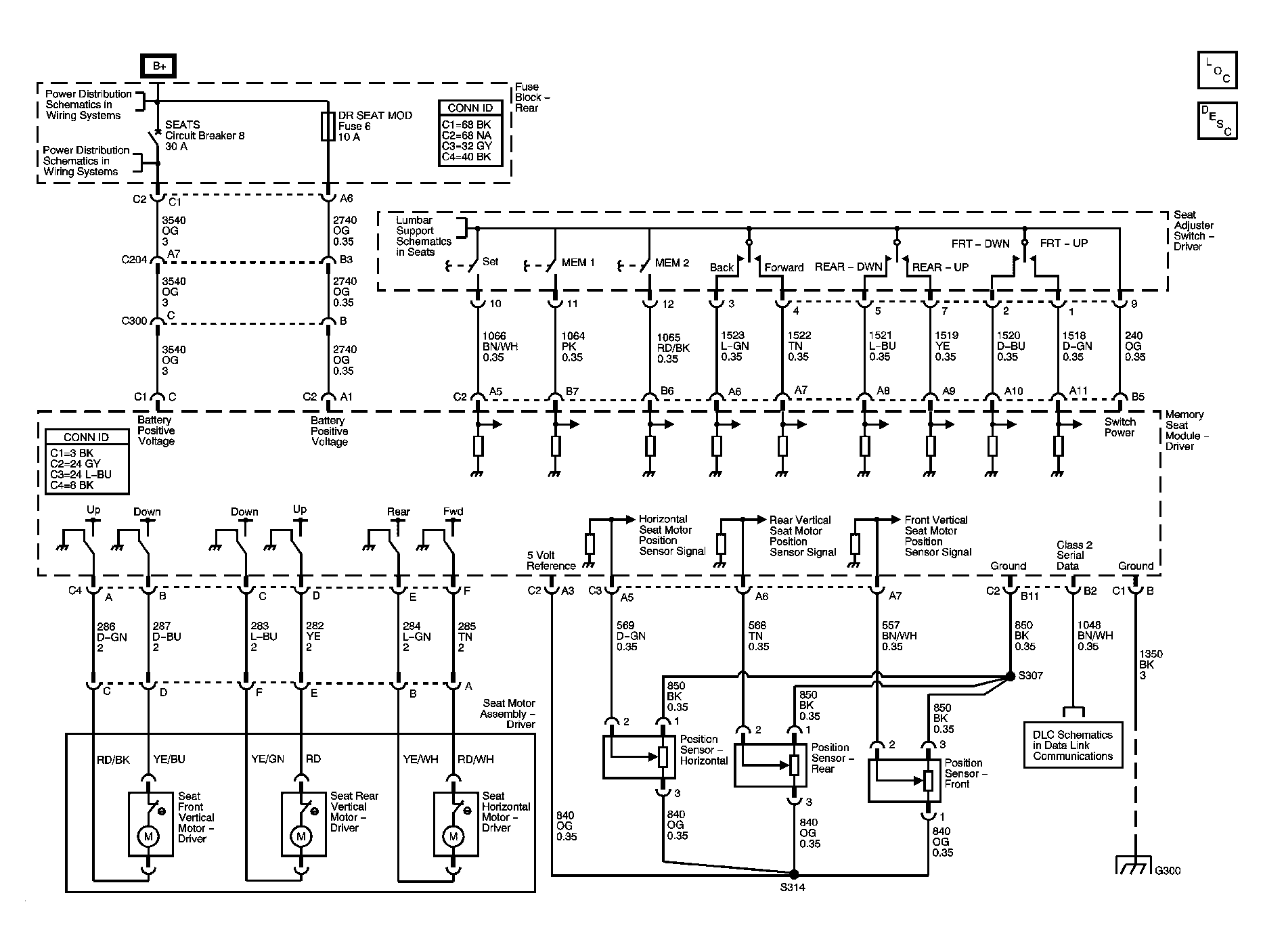

Fig 1: Driver 6-Way with Memory
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
