Power Seats Schematics

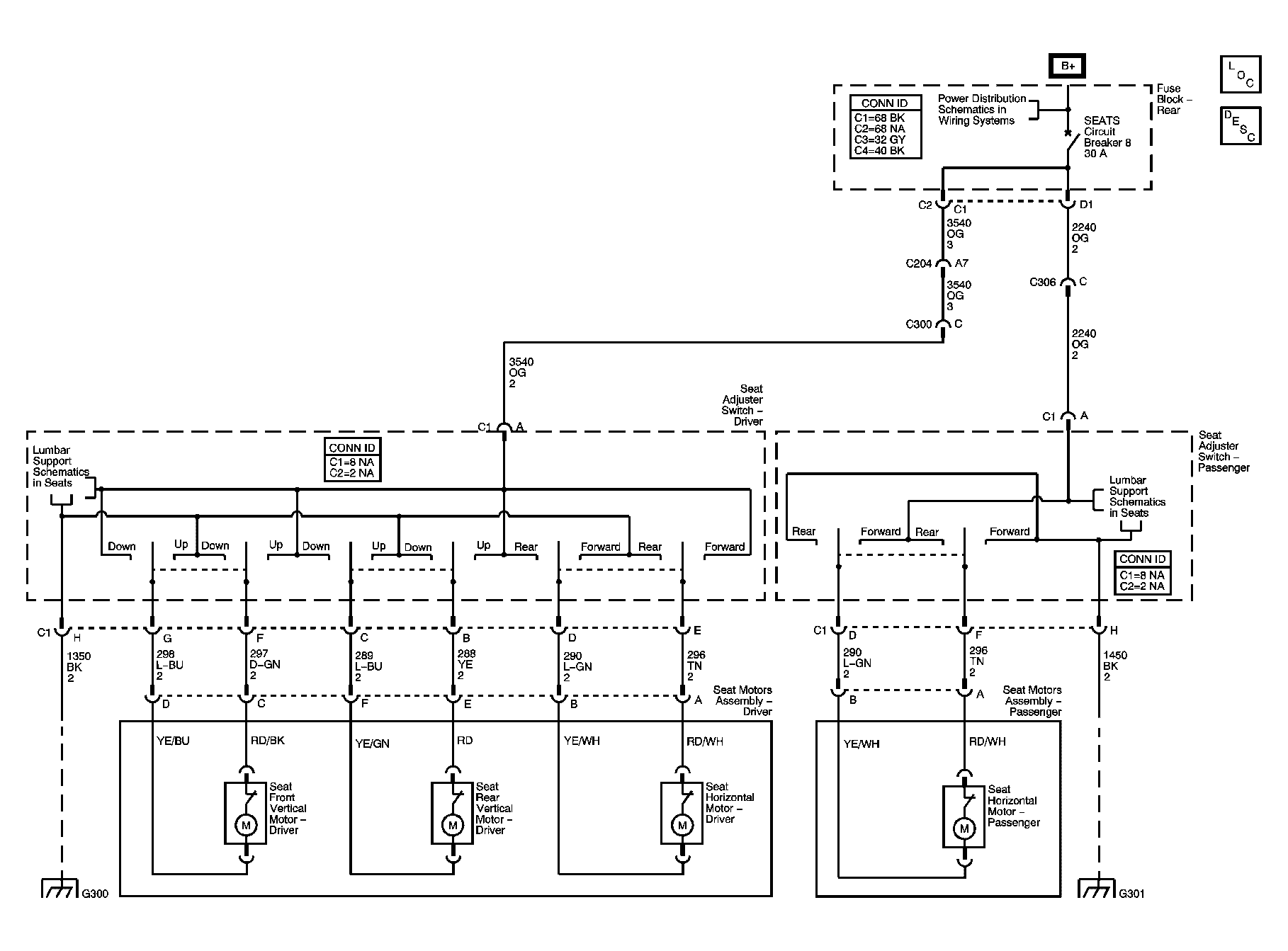

Fig 1: Driver 6-Way W/O Memory and Passenger 2-Way
Courtesy of GENERAL MOTORS CORP.
