Removal Procedure

    Fig 1: View of Door Lock Knob
    GM1335817Courtesy of GENERAL MOTORS CORP.
  1. Remove the door lock knob (1) by turning it counterclockwise.
    2. Fig 2: View of Door Handle Bezel
    GM1276297Courtesy of GENERAL MOTORS CORP.
  2. Using a flat-bladed plastic tool and gently pry to remove the door handle bezel.
    3. Fig 3: Identifying Pull Handle Bezel Fastener
    GM1276286Courtesy of GENERAL MOTORS CORP.
  3. Remove the pull handle bezel fastener.
    4. Fig 4: View of Pull Handle Bezel
    GM1150212Courtesy of GENERAL MOTORS CORP.
  4. Remove the pull handle bezel.
    5. Fig 5: View of Door Trim Panel to Door Fasteners
    GM1276282Courtesy of GENERAL MOTORS CORP.
  5. Remove the 2 fasteners that retain the door trim panel to the door.
  6. Use the J 38778  to release the plastic retainers around the door trim panel. See Special Tools .

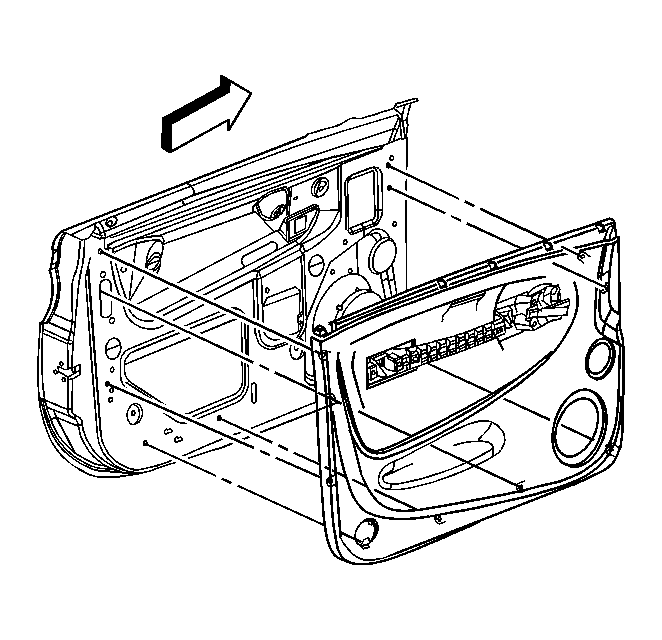

    7. Fig 6: View of Door Trim Panel
    GM1150264Courtesy of GENERAL MOTORS CORP.
  7. Lift up on the door trim panel to disengage the door trim panel clips to the door structure.
    8. Fig 7: View of Electrical Connector
    GM1335827Courtesy of GENERAL MOTORS CORP.
  8. Disconnect the electrical connector.
  9. Remove the door trim panel from the vehicle.
