Removal Procedure

  1. Remove the air cleaner assembly. Refer to Air Cleaner Assembly Replacement in Engine Controls - 4.8L, 5.3L, and 6.0L.
    2. Fig 1: Disconnecting/Connecting MAF Sensor Wire
    GM928982Courtesy of GENERAL MOTORS CORP.
  2. Disconnect the mass air flow (MAF) sensor wire (1) from the radiator support retainer clip.
  3. Disconnect the surge tank inlet hose assembly from the radiator support tabs.

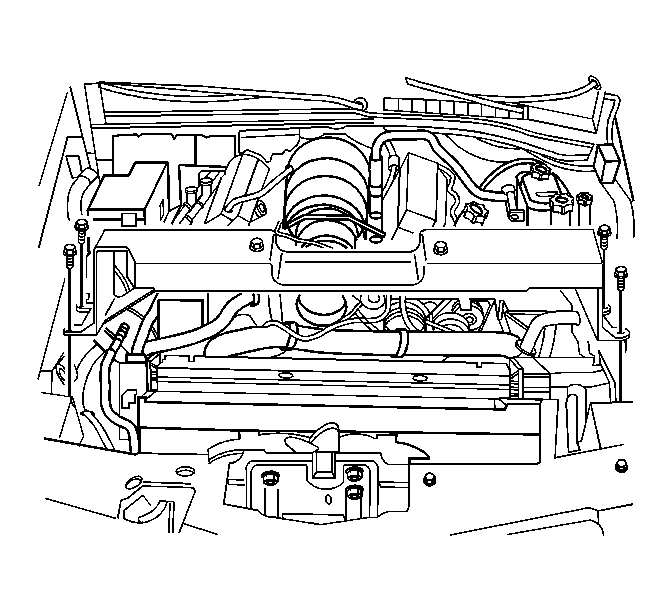

    4. Fig 2: Identifying Radiator Support Bolts
    GM928973Courtesy of GENERAL MOTORS CORP.
  4. Remove the radiator support bolts.
    5. IMPORTANT: Note the position of the radiator support in relationship to the fan shroud. This must be reassembled correctly in order to retain the fan shroud.
    Fig 3: Identifying Radiator Support
    GM928978Courtesy of GENERAL MOTORS CORP.
  5. Remove the radiator support.
