Engine Control Module

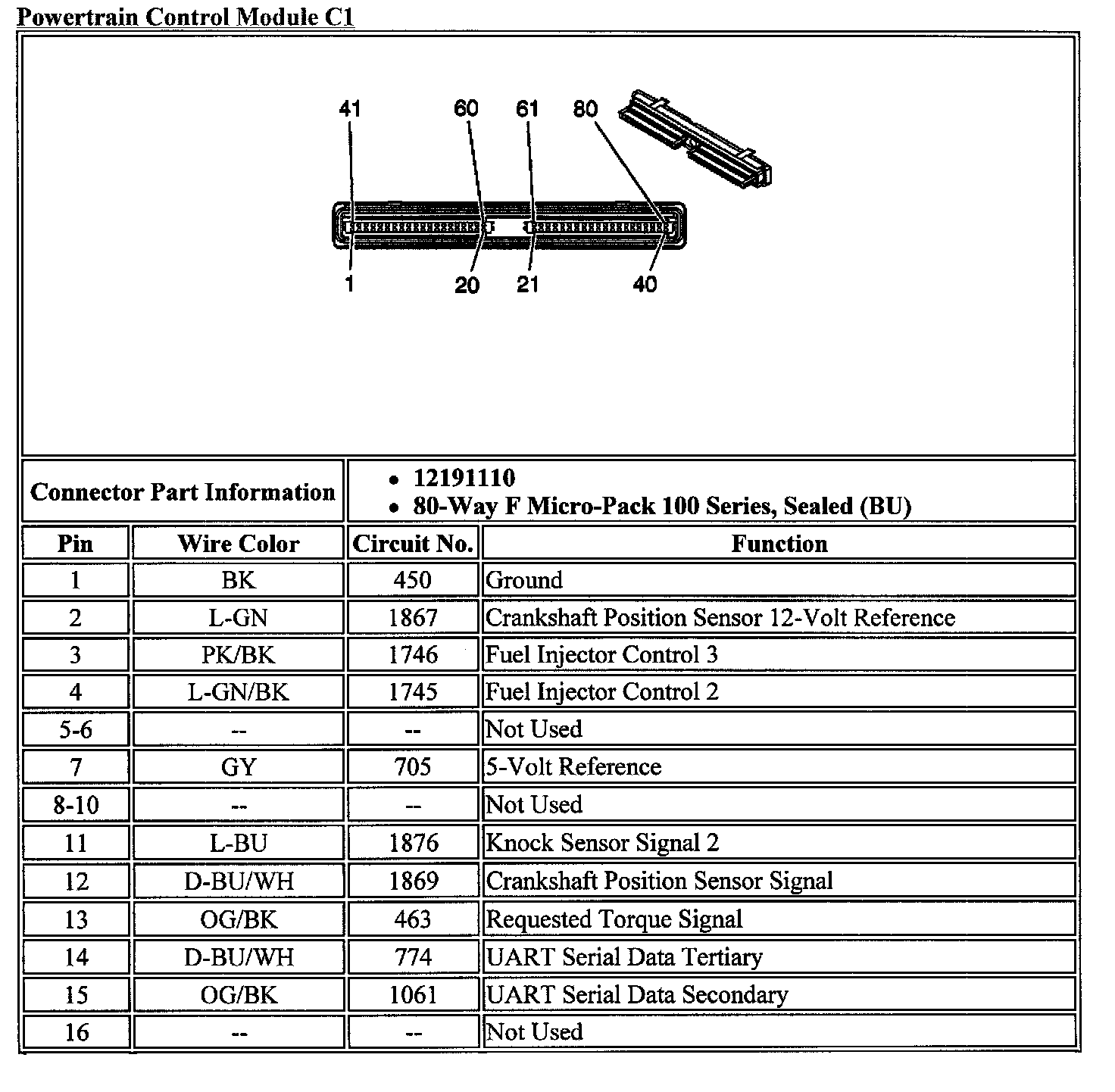

PCM Connector C1 (Part 1 Of 3):

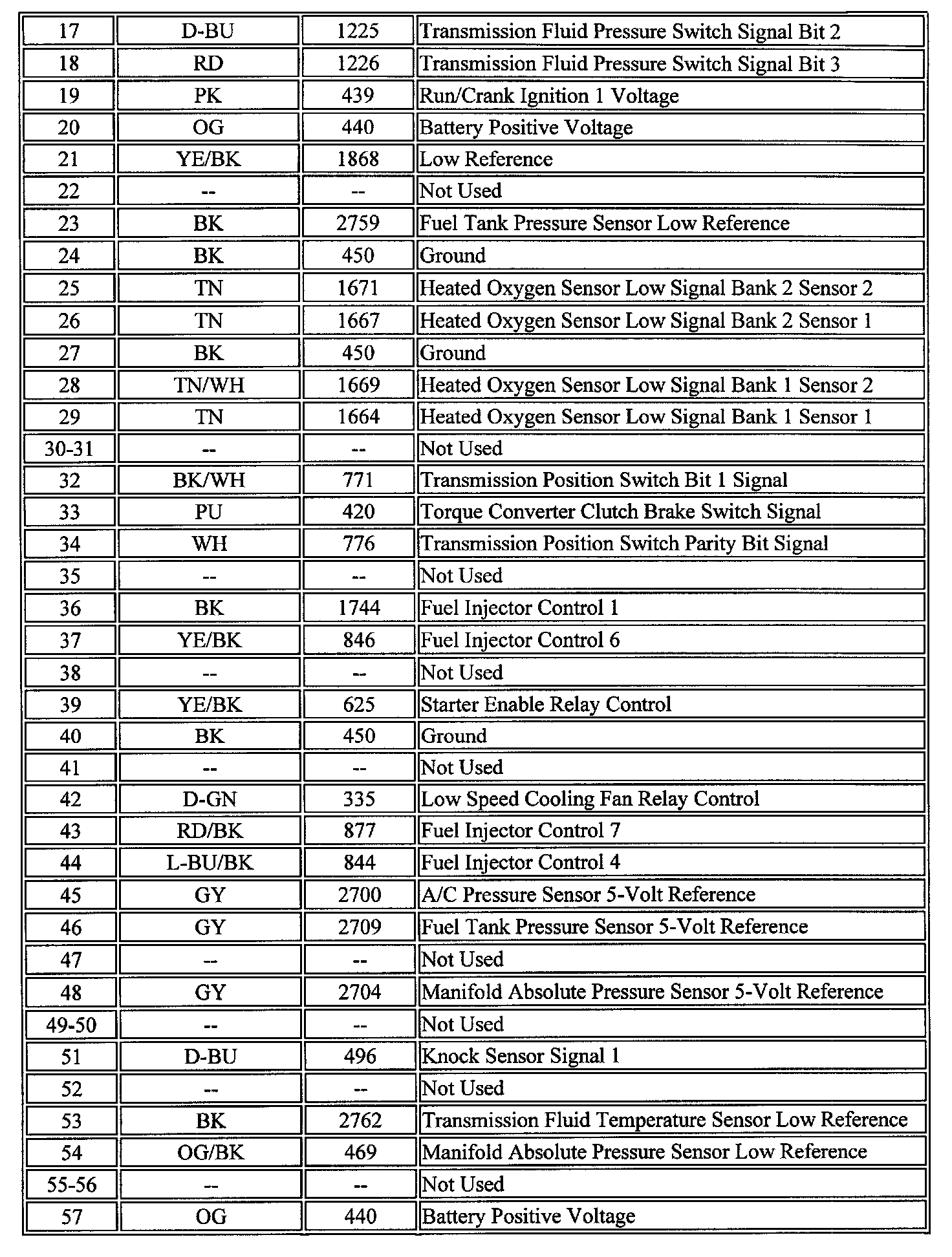

PCM Connector C1 (Part 2 Of 3):

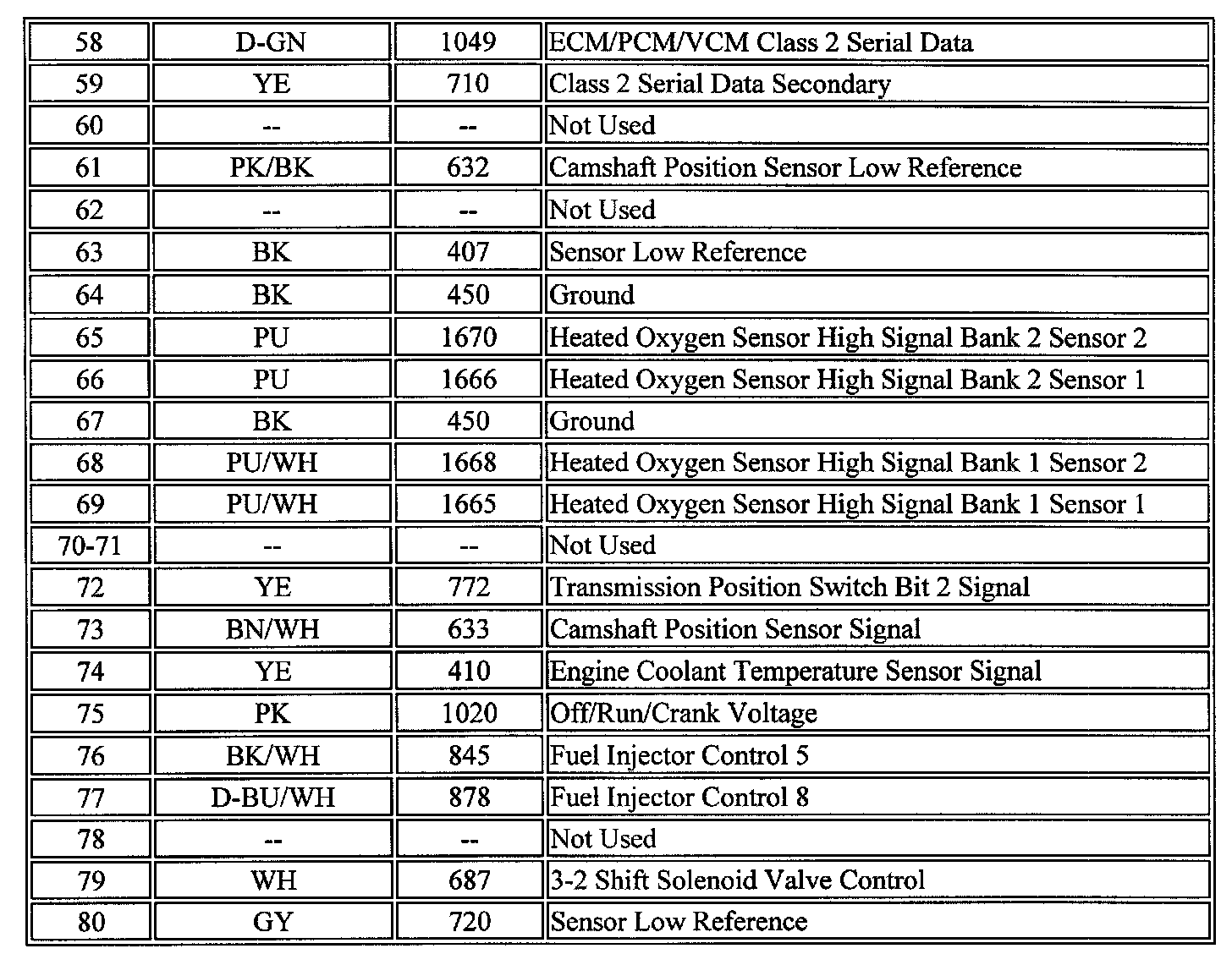

PCM Connector C1 (Part 3 Of 3):






PCM Connector C2 (Part 1 Of 3):

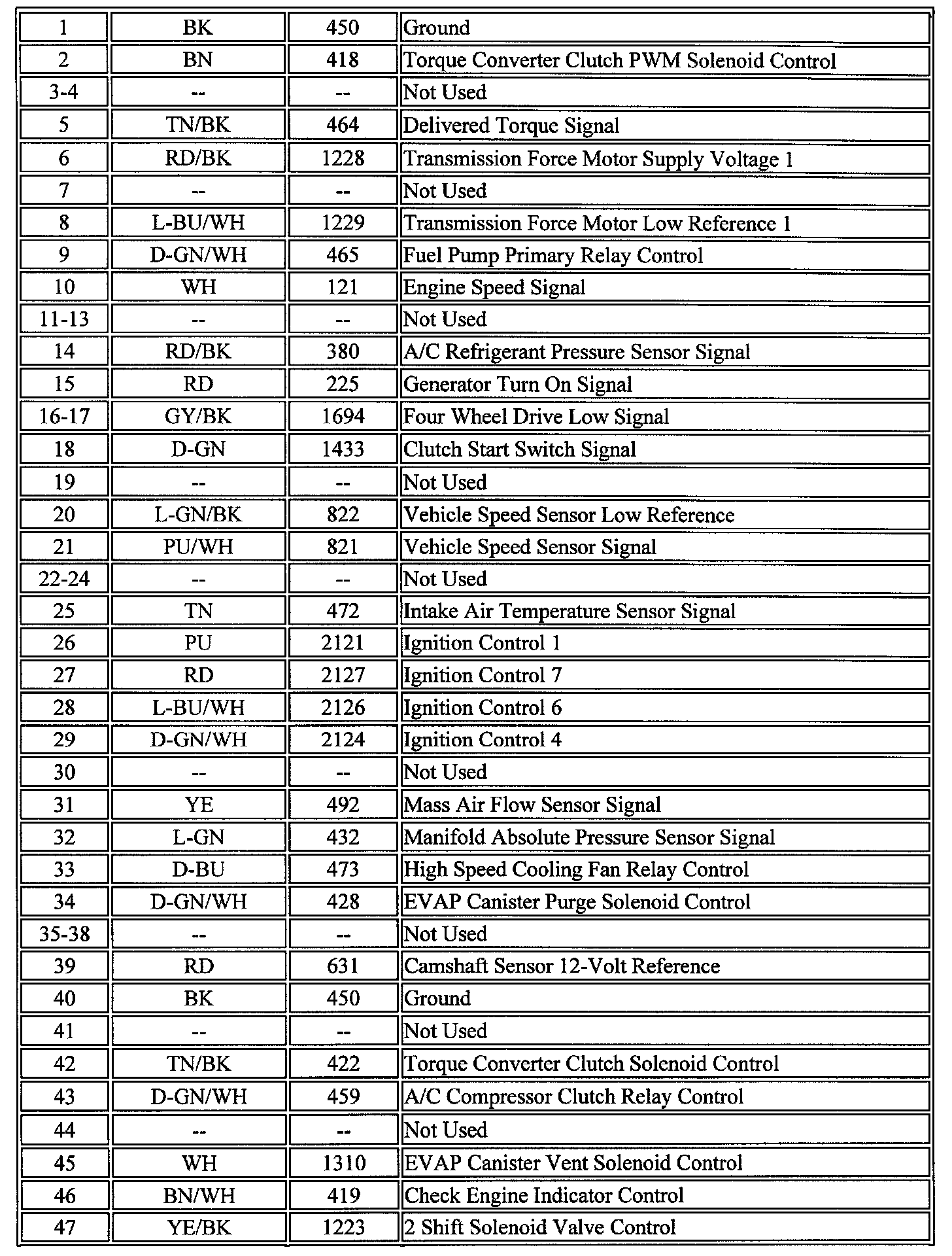

PCM Connector C2 (Part 2 Of 3):

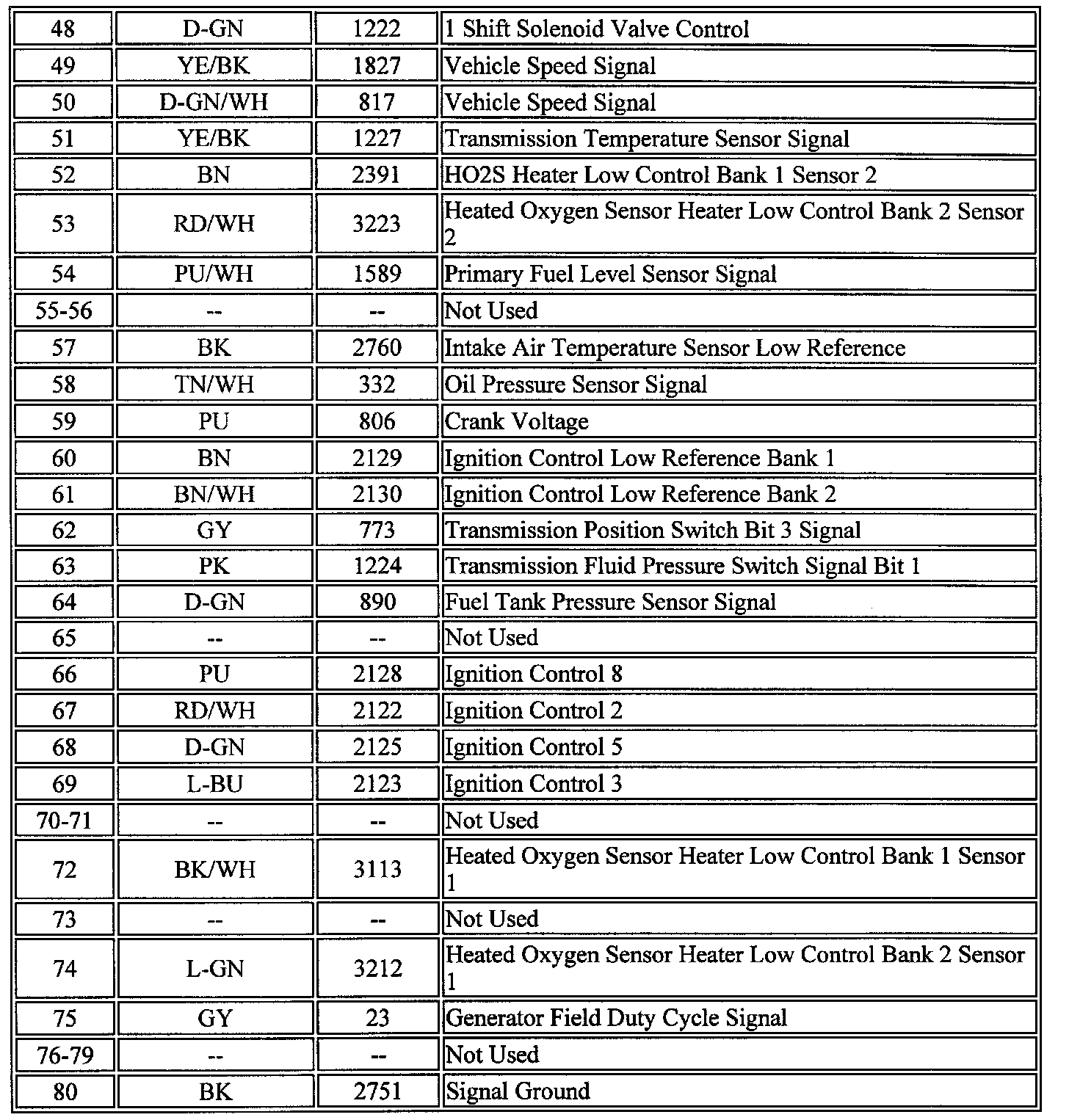

PCM Connector C2 (Part 3 Of 3):
