Home
>>
Chevrolet
>>
2003
>>
SSR V8-5.3L VIN P
>>
Repair and Diagnosis
>>
Power and Ground Distribution
>>
Fuse
>>
Locations
>>
Rear Fuse Block
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.
Rear Fuse Block

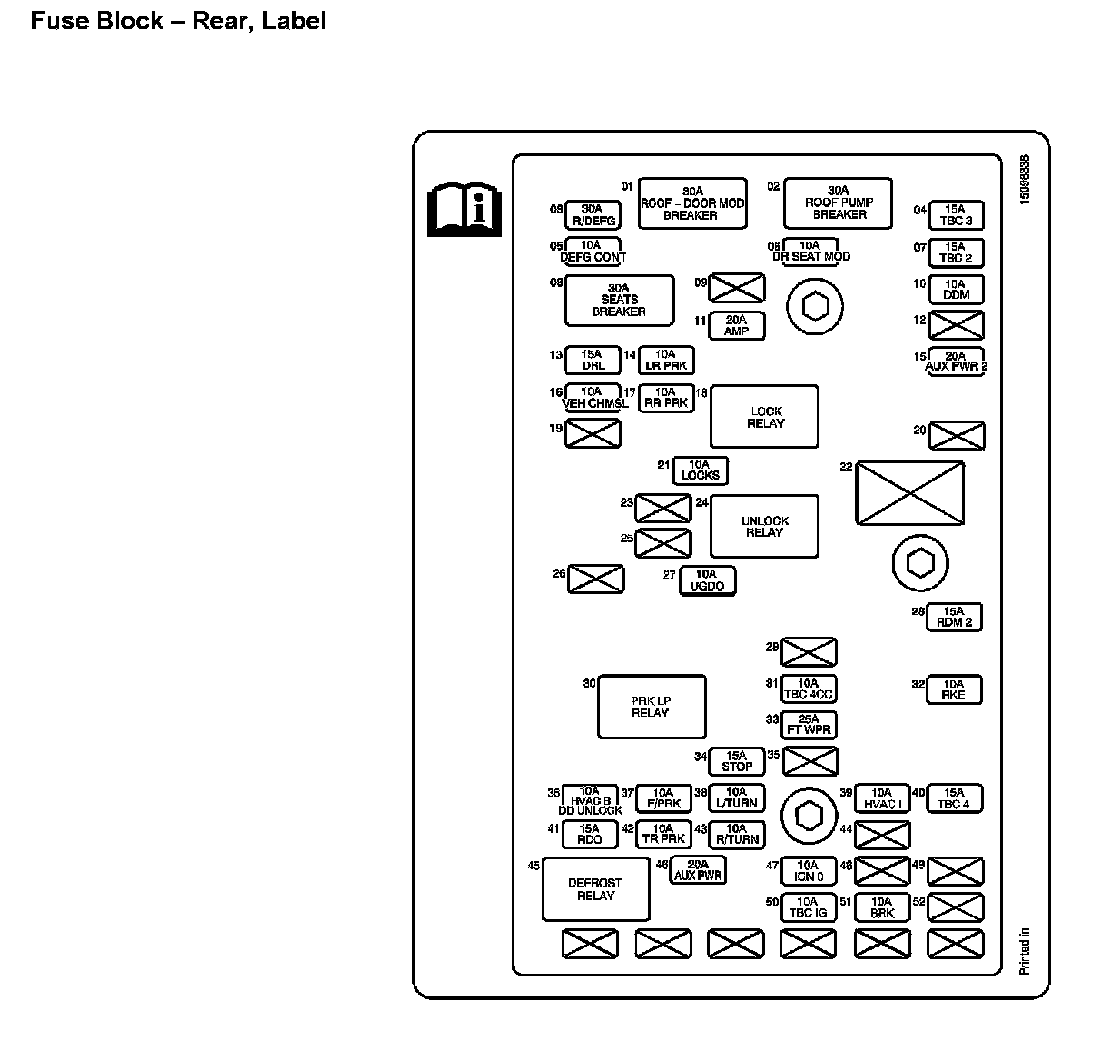

Location View:

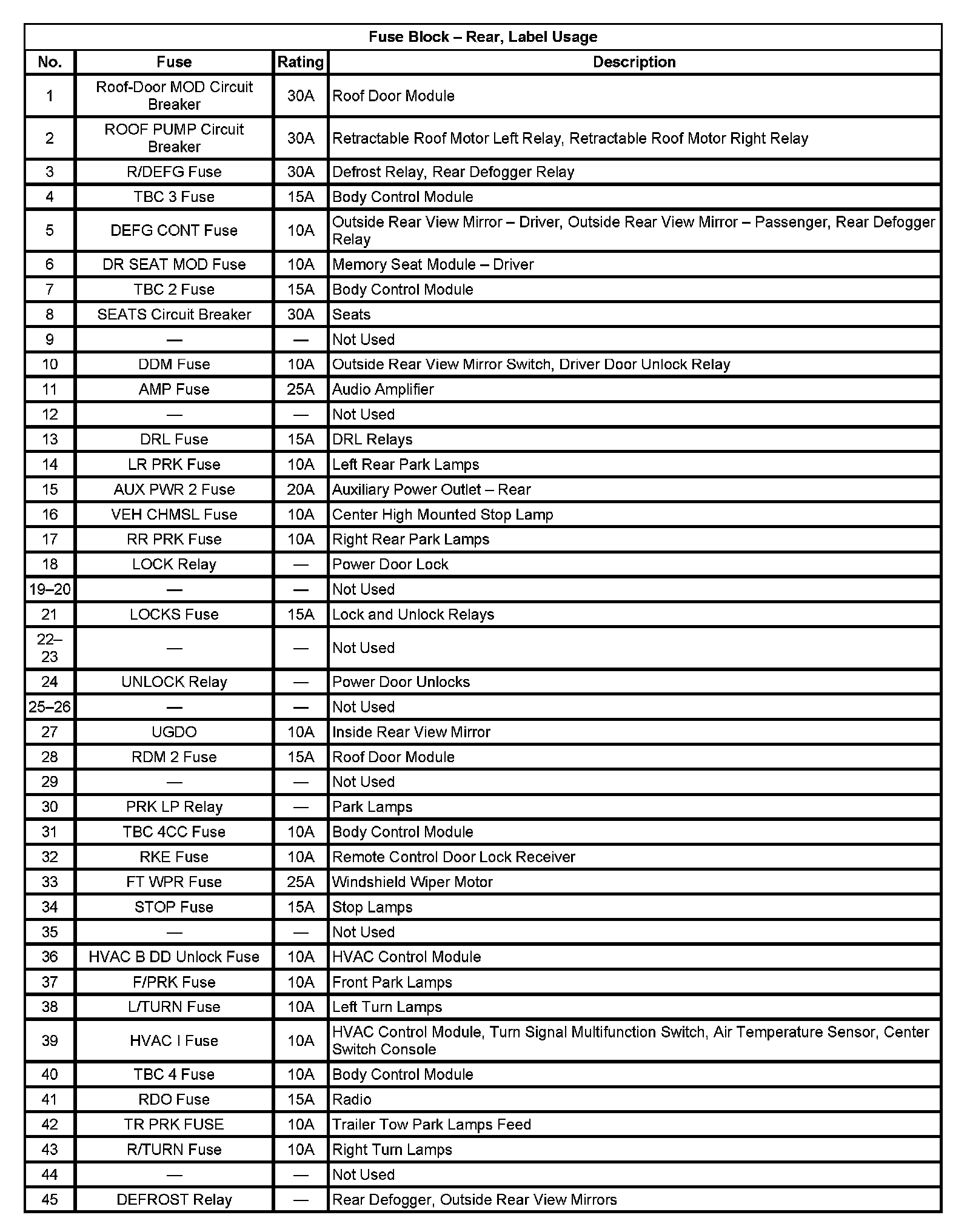

Application Table (Part 1):
Application Table (Part 2):

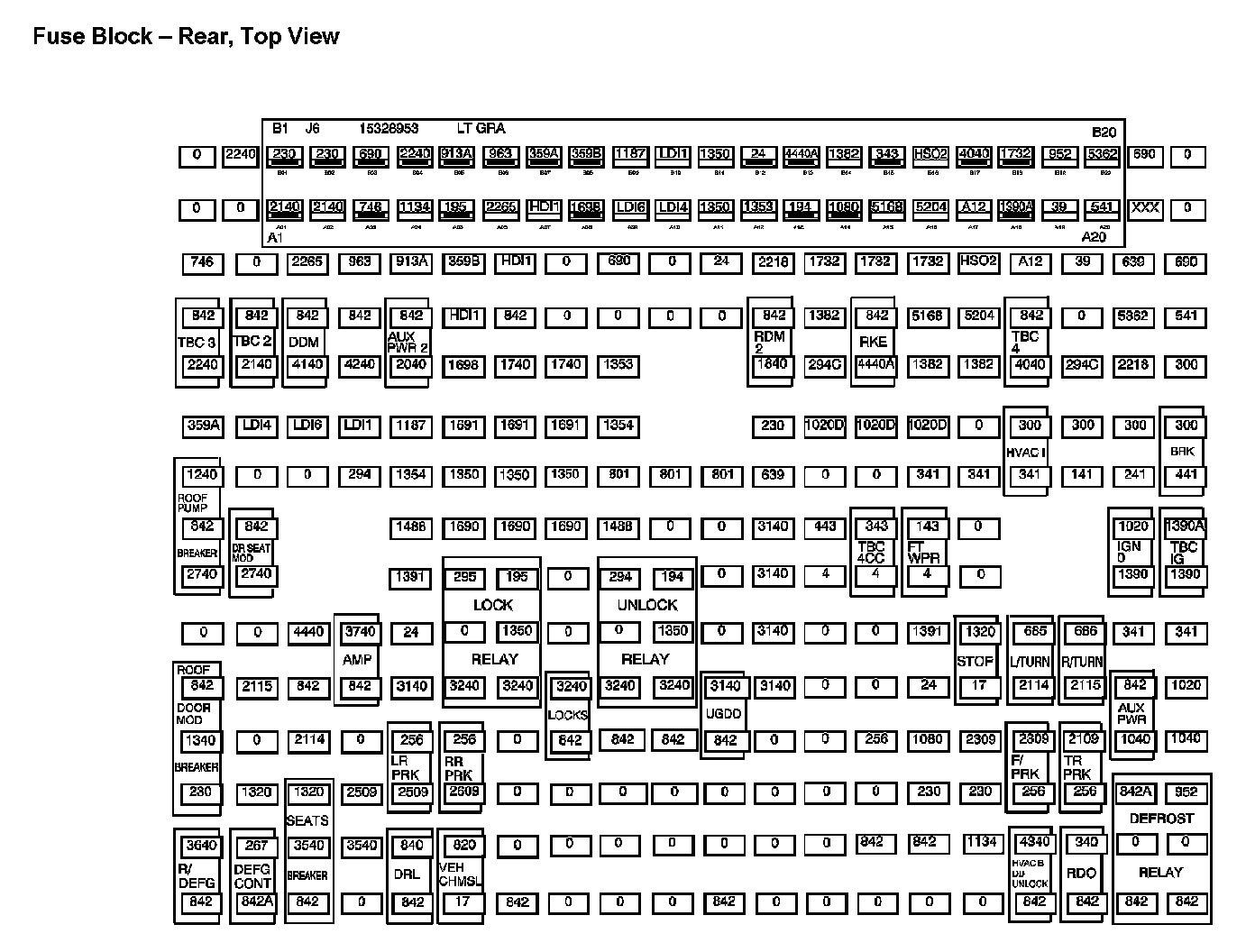

Location View:
Location View:
