Electronic Brake Control Module - C2 - 10/20 Series

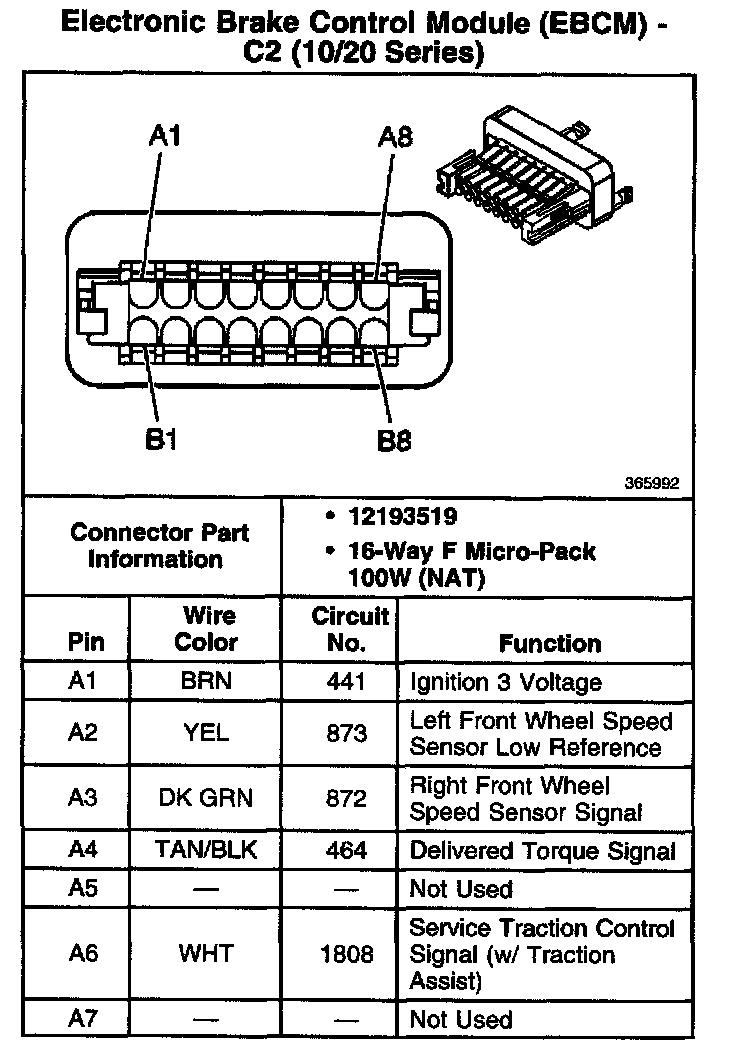

Electronic Brake Control Module (EBCM) - C2 (10/20 Series) Part I:

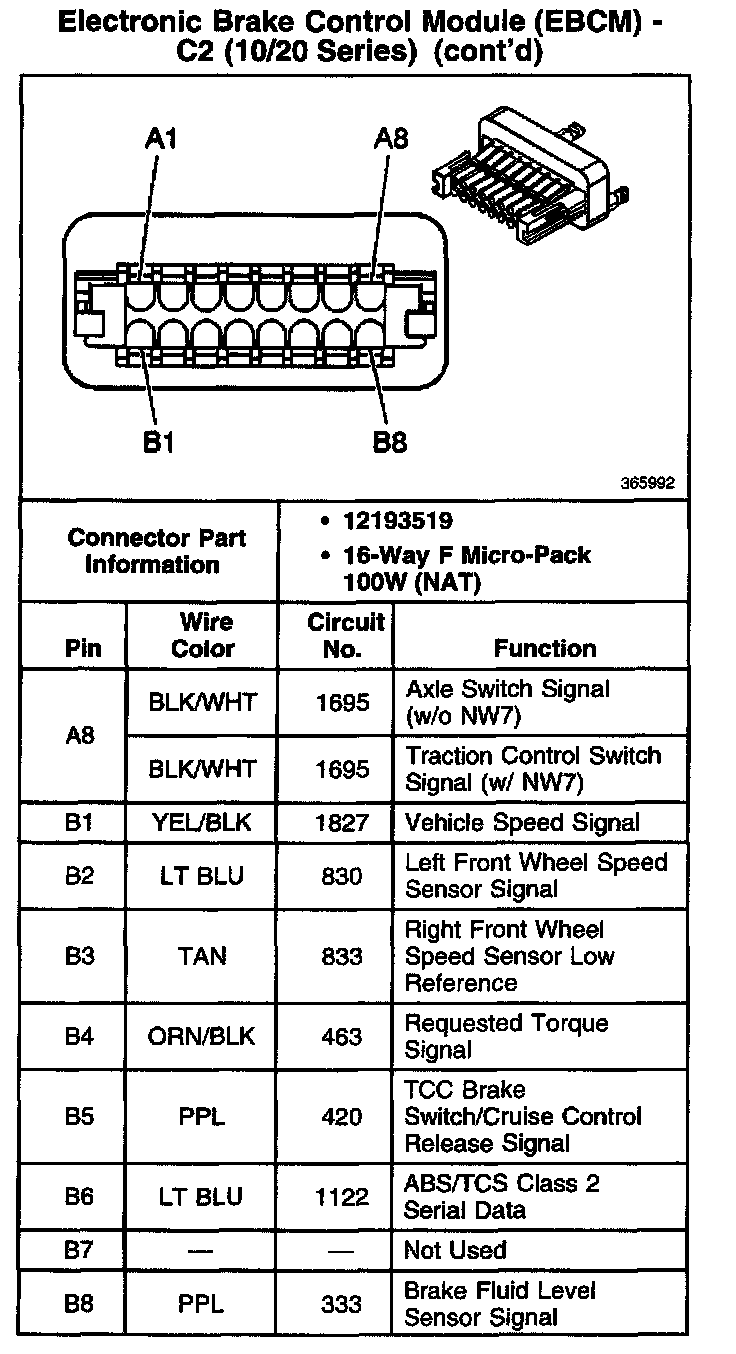

Electronic Brake Control Module (EBCM) - C2 (10/20 Series) (cont'd) Part II:
