Front Drive Axle

Front Drive Axle Disassembled Views

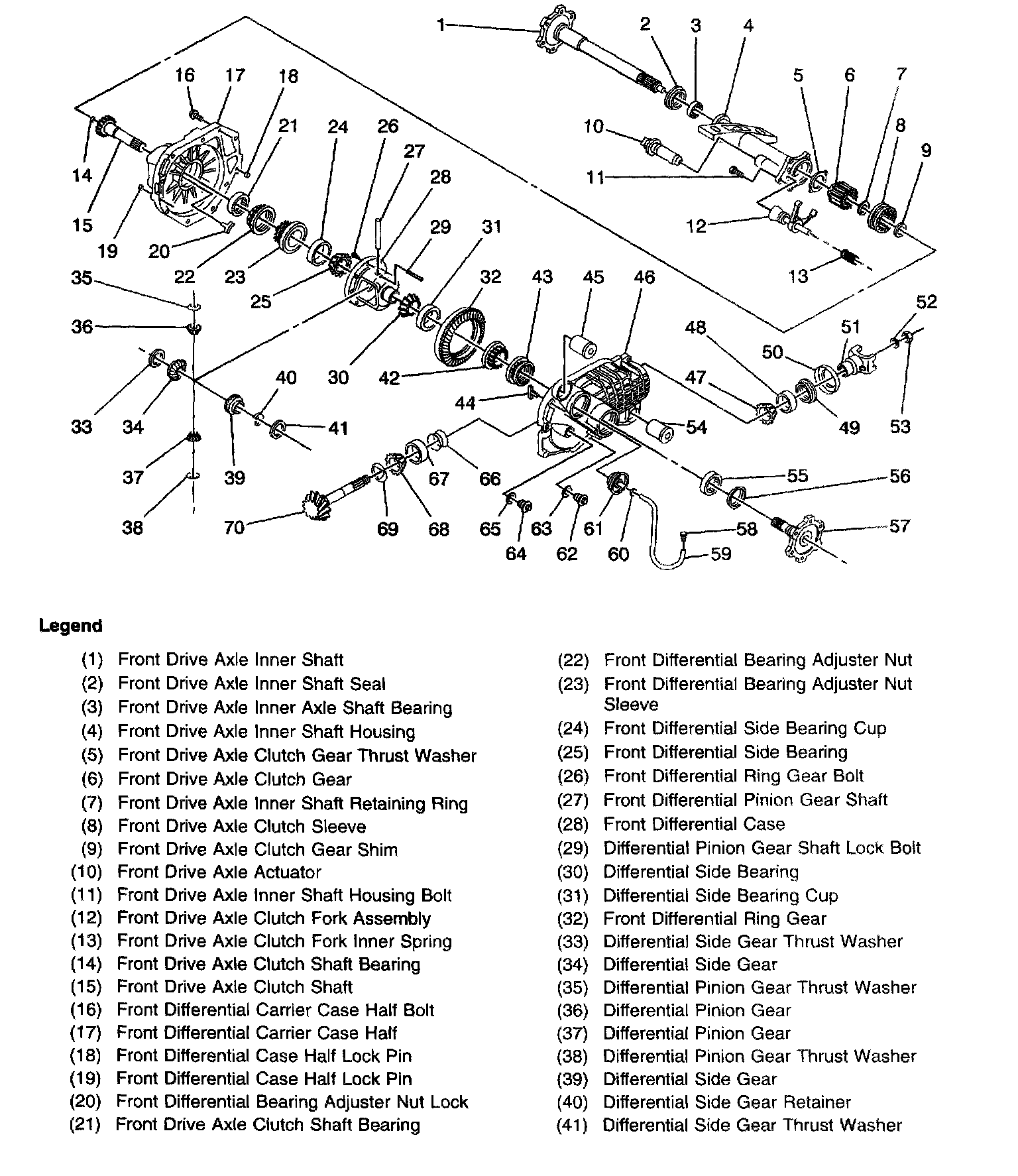

Front Drive Axle (8.25 inch) (S4WD)

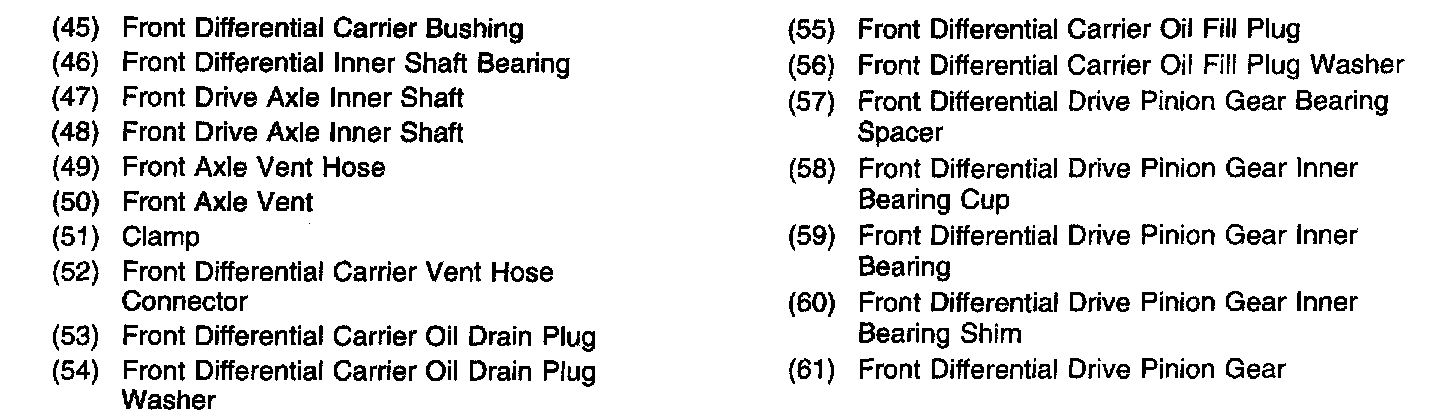

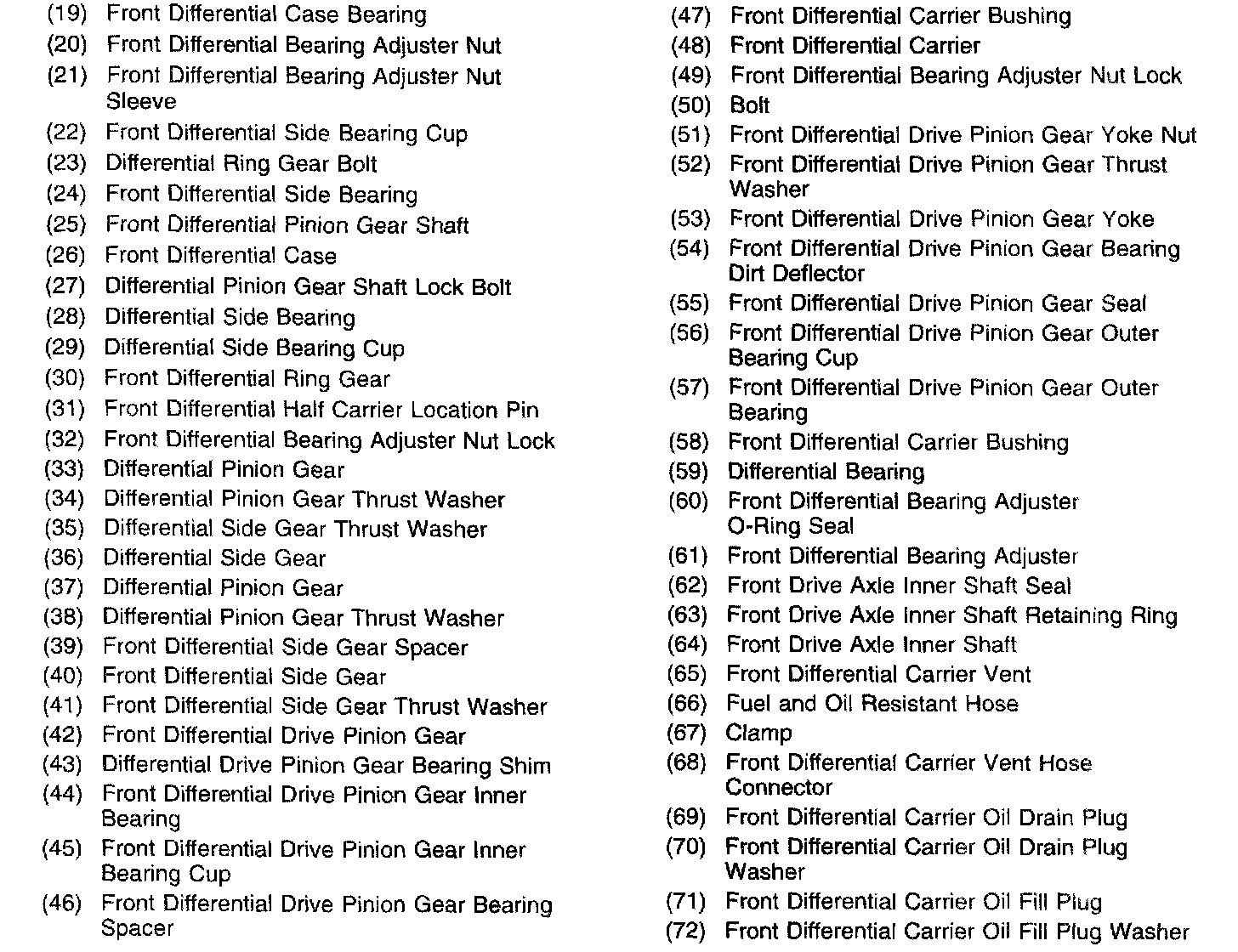

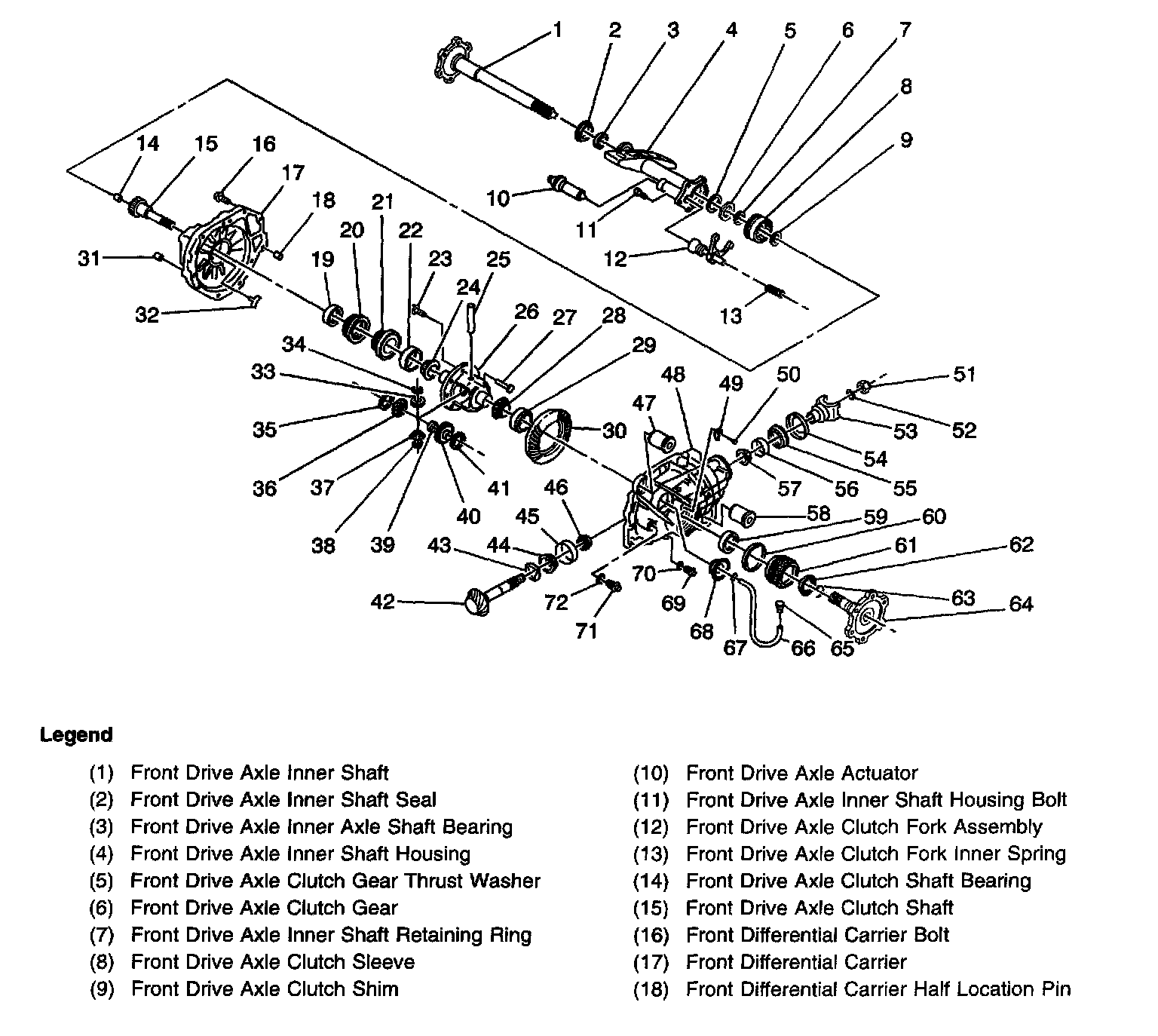

Front Drive Axle (8.25 inch) (F4WD)

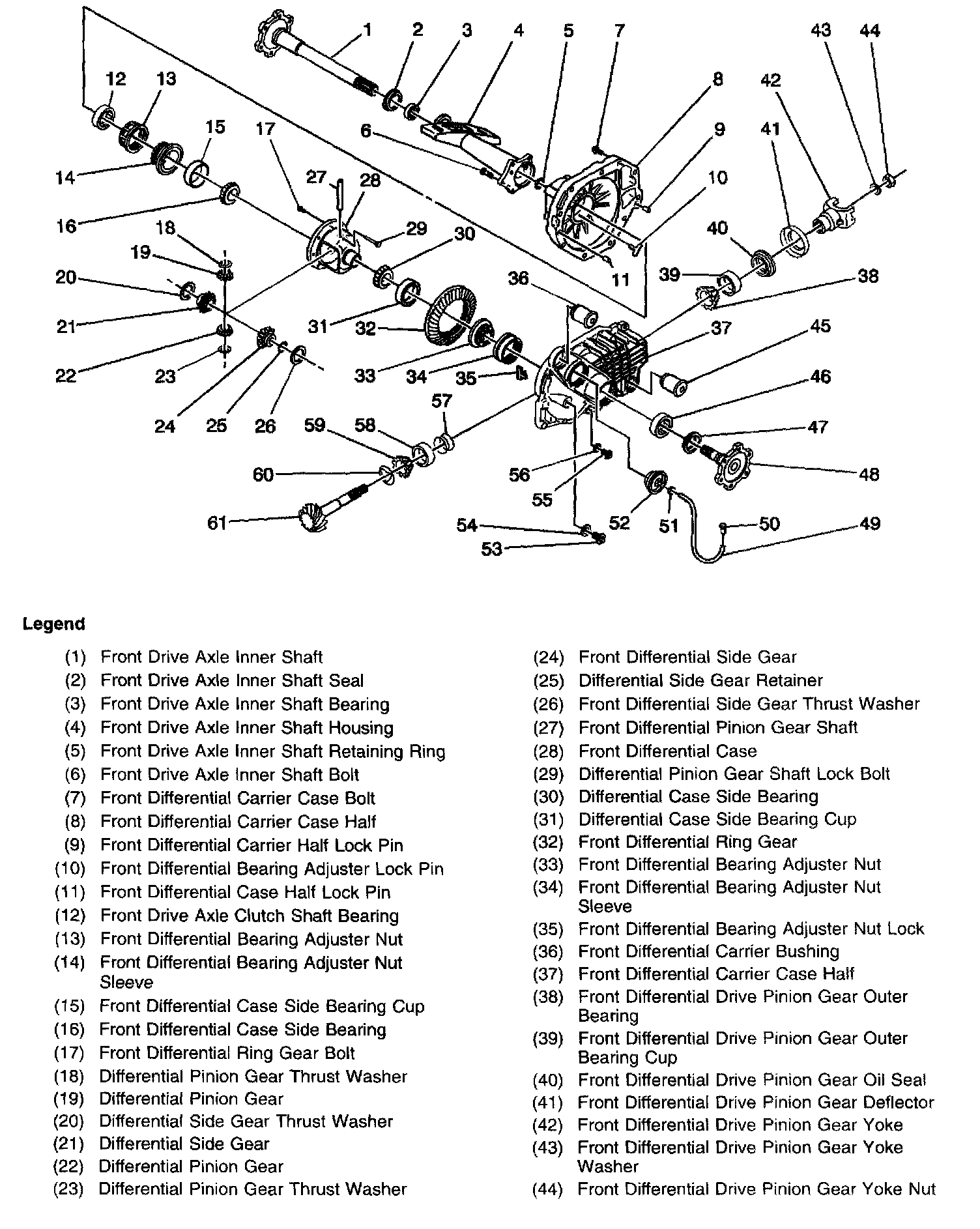

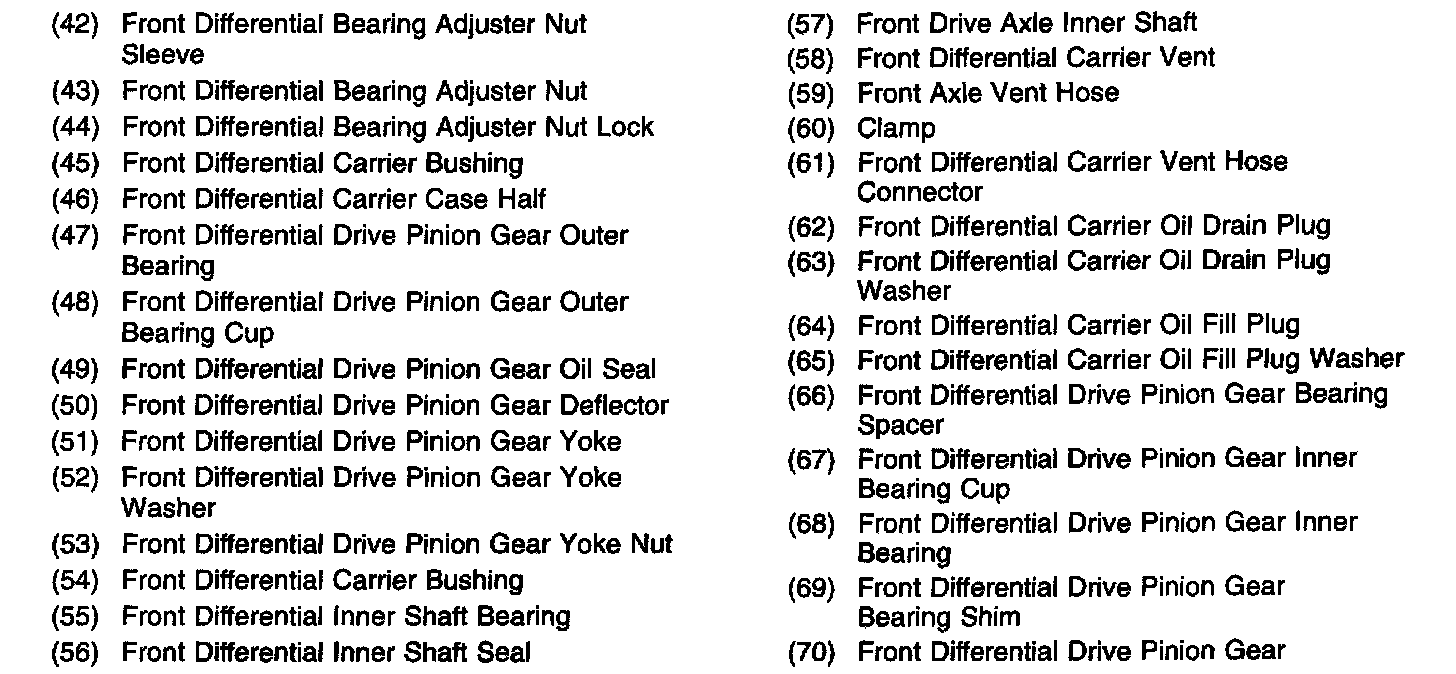

Front Drive Axle (9.25 inch)
