Bottom View

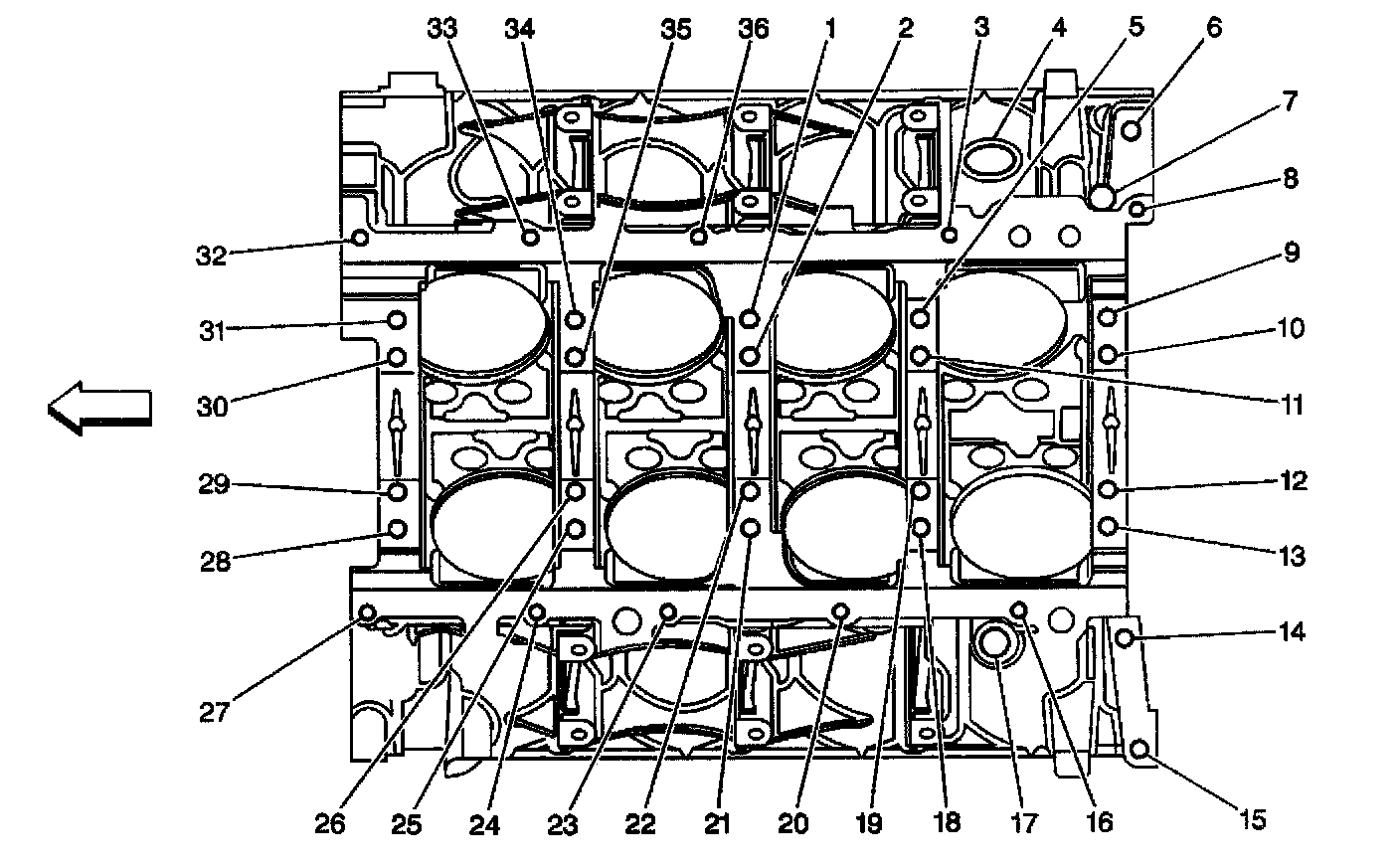

Engine Block-Bottom View / 1 Of 3:

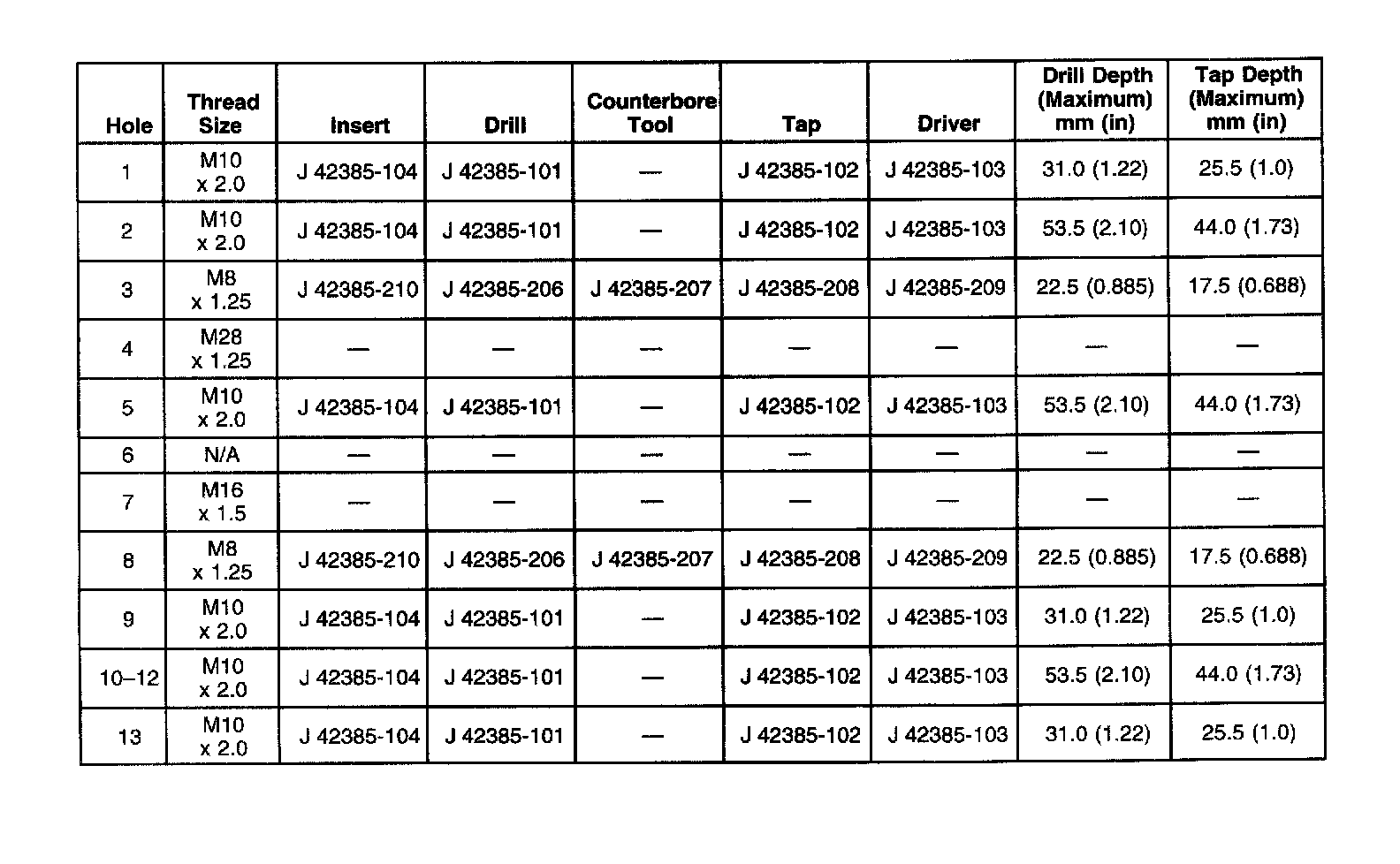

Engine Block-Bottom View / 2 Of 3:

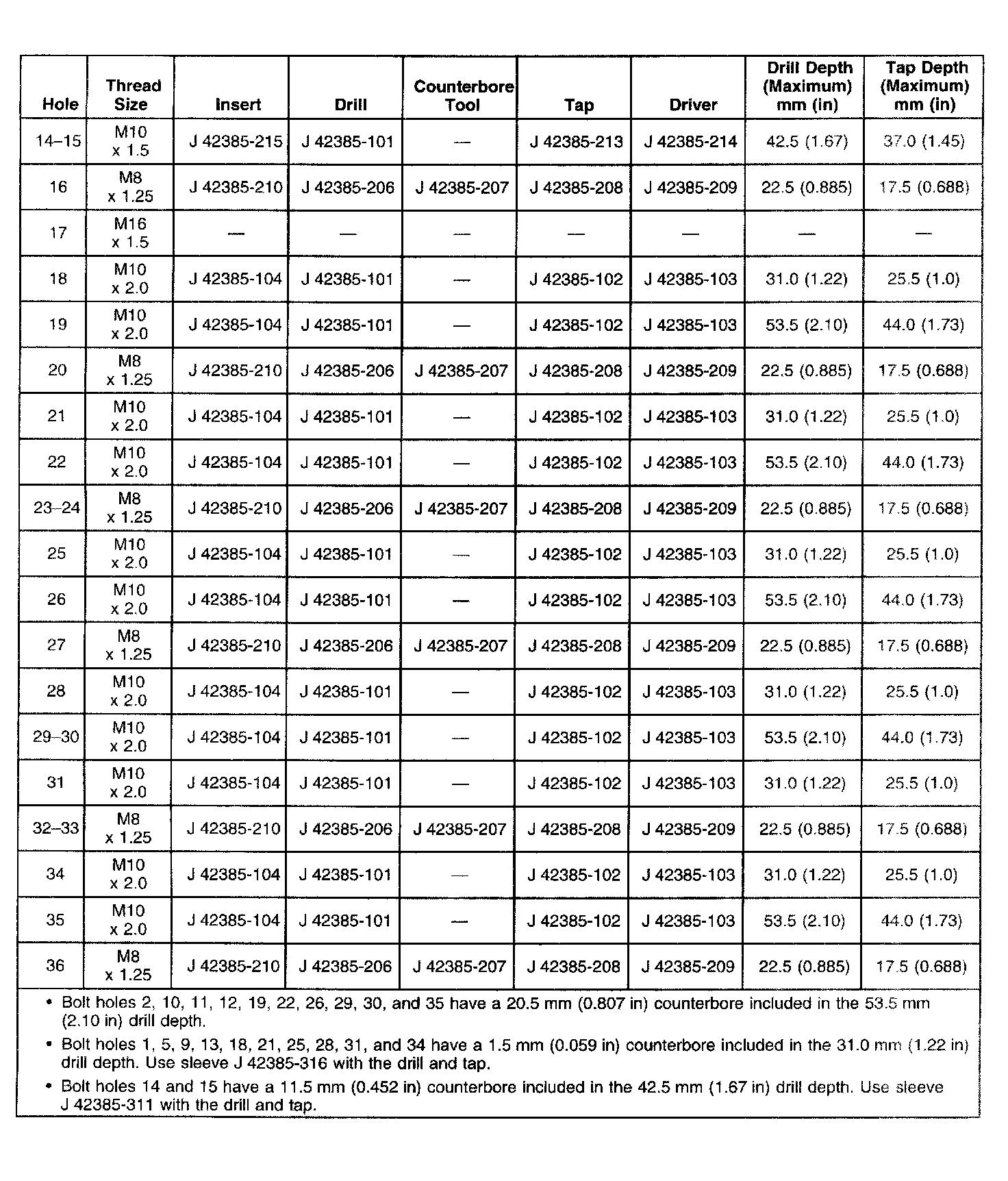

Engine Block-Bottom View / 3 Of 3:
