Left Side View

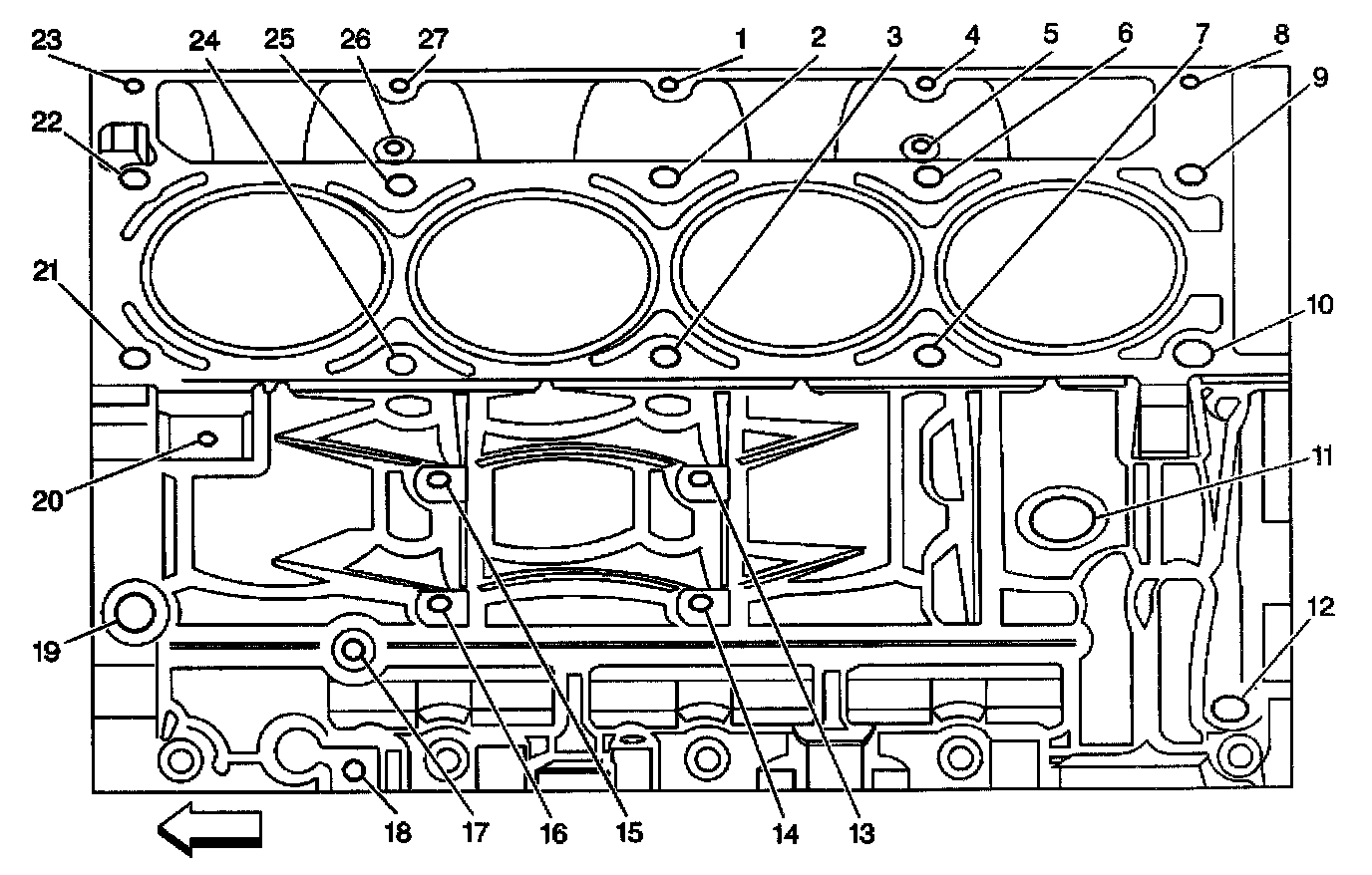

Engine Block - Left Side View / 1 Of 3:

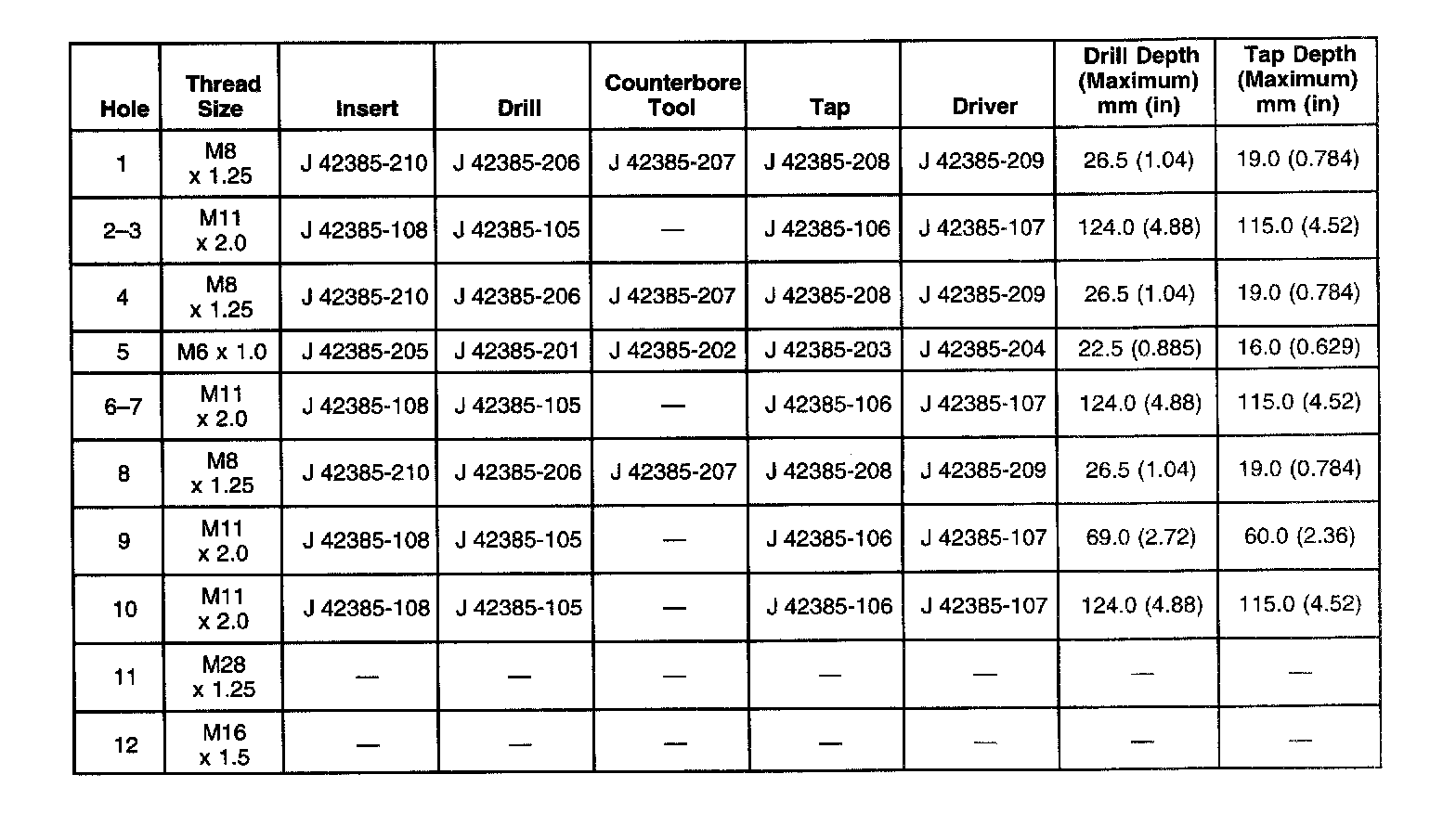

Engine Block - Left Side View / 2 Of 3:

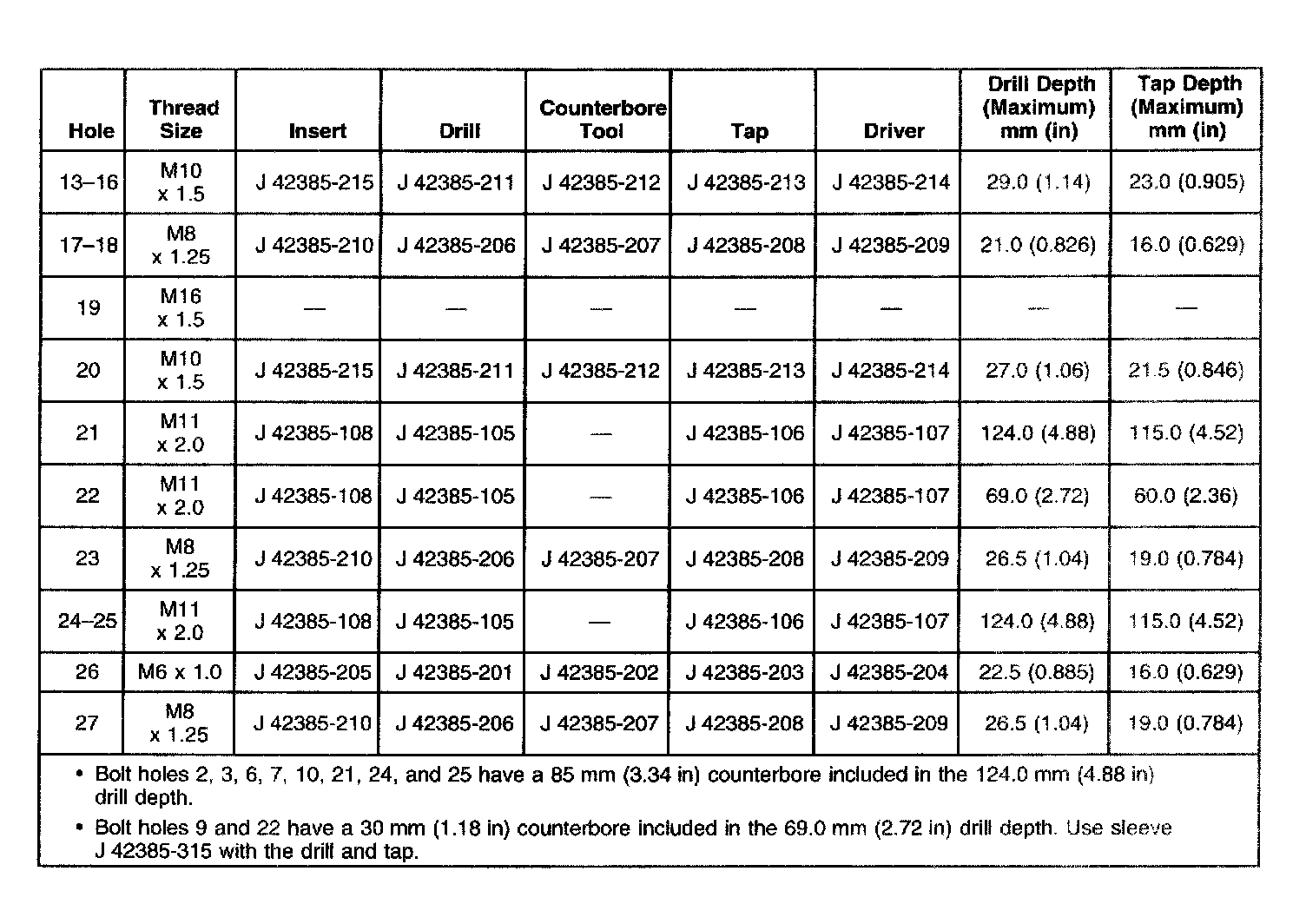

Engine Block - Left Side View / 3 Of 3:
