Scan Tool Data List - Powertrain Control Module (PCM)

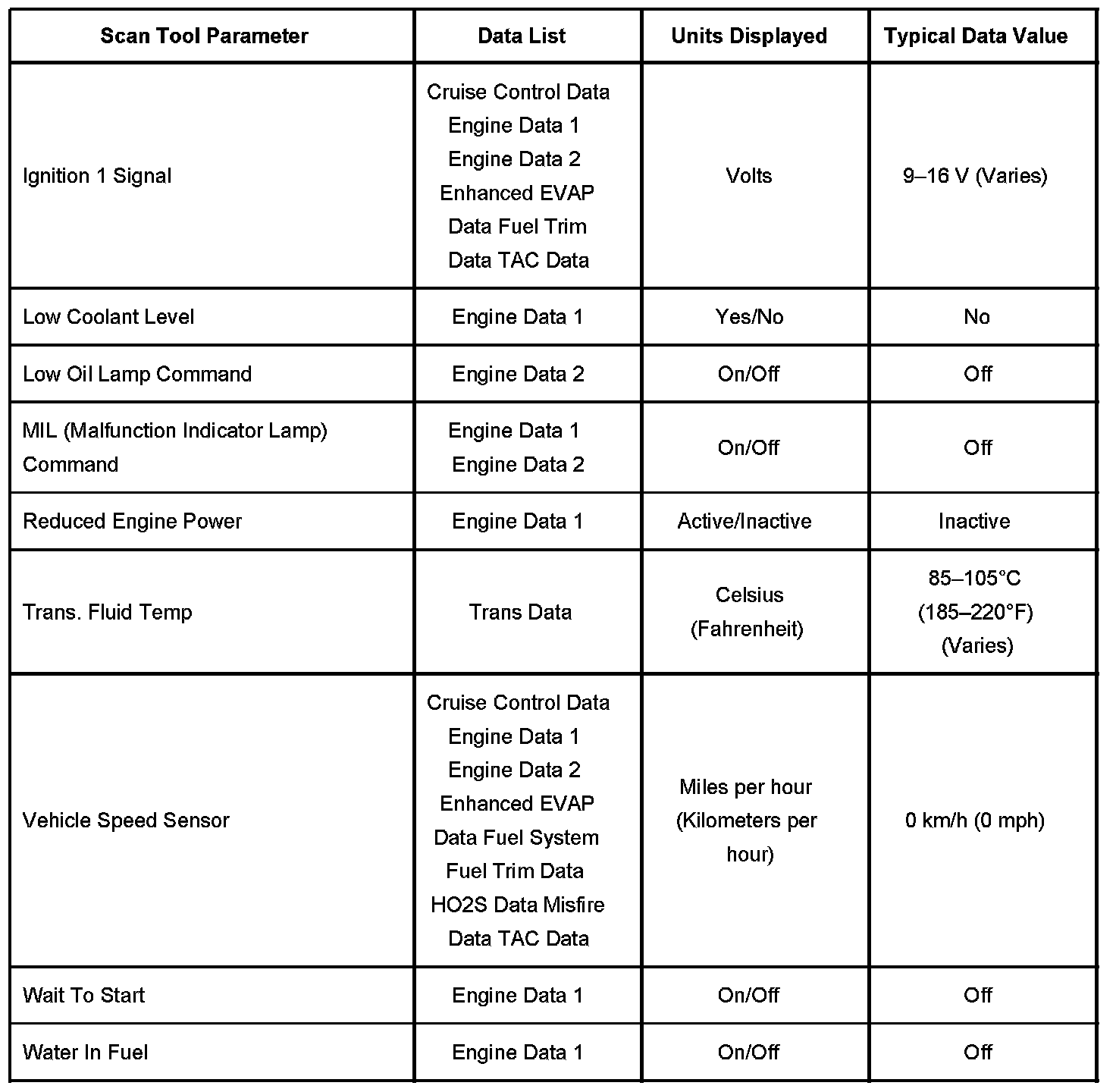

Powertrain Control Module (PCM) Part 1:

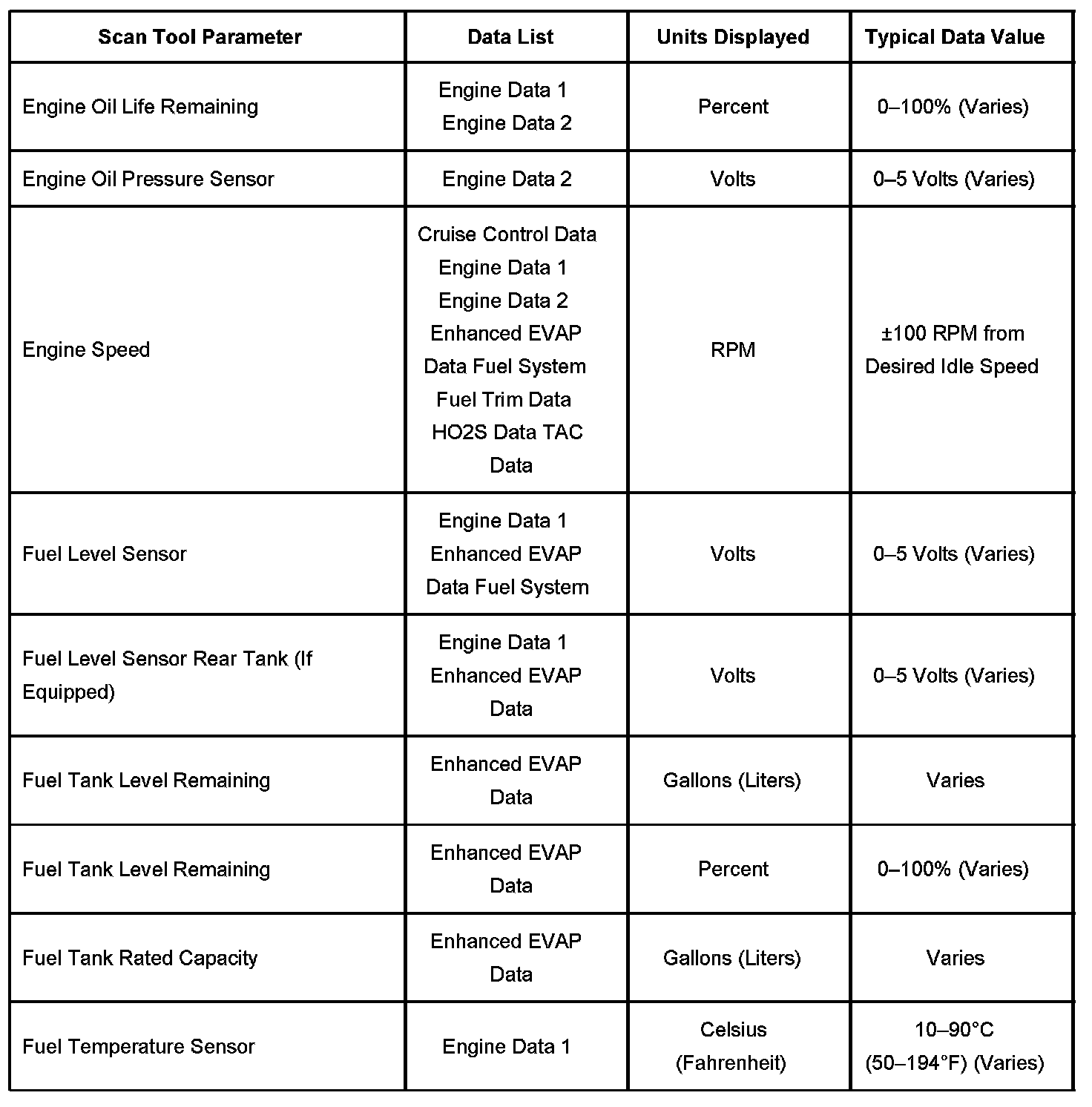

Powertrain Control Module (PCM) Part 2:



Powertrain Control Module (PCM) Part 3:
