MAF/Intake Air Temperature (IAT) Sensor

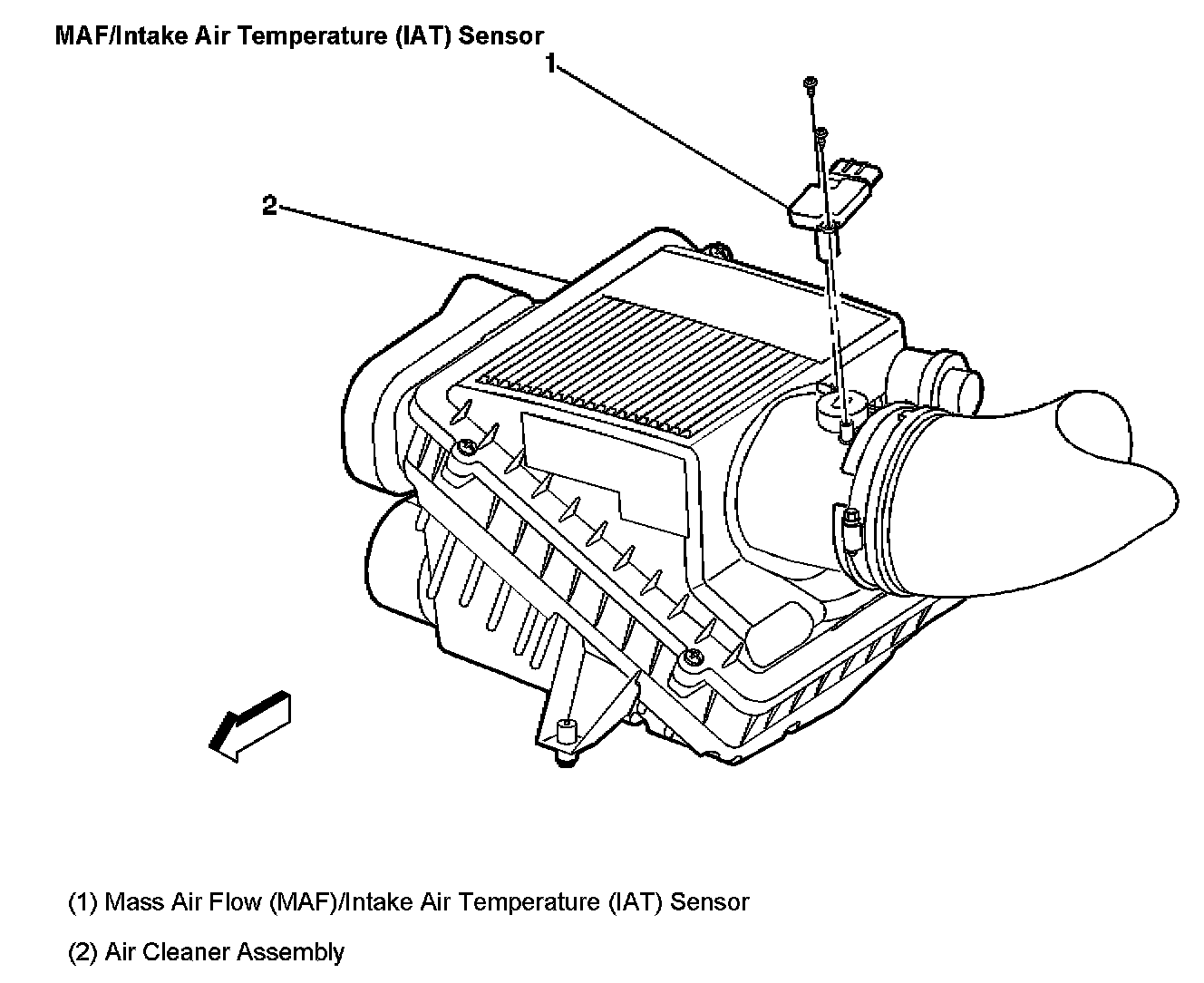

MAF/Intake Air Temperature (IAT) Sensor:

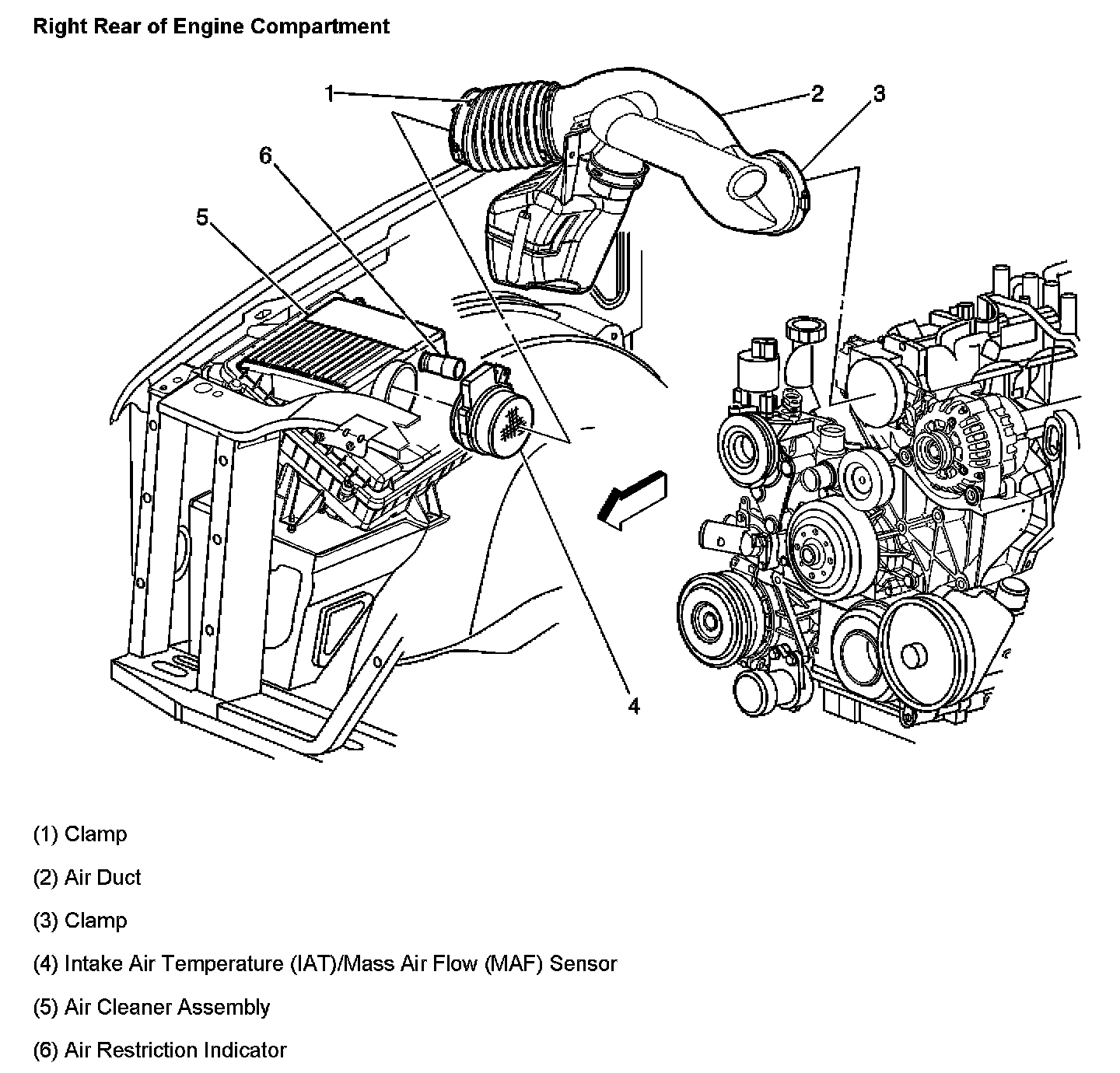

Right Rear Of Engine Compartment:
