Installation Procedure

  1. Clean the EBCM gasket and the BPMV surface with alcohol using a clean rag.
  2. Install the EBCM (2) to the BPMV (4).
    NOTE: Refer to FASTENER NOTICE in Cautions and Notices.
  3. Install the four screws (1) that attaches the EBCM (2) to BPMV (4).

    Tighten

    1. Tighten the four screws to 5 N.m (44 lb in).

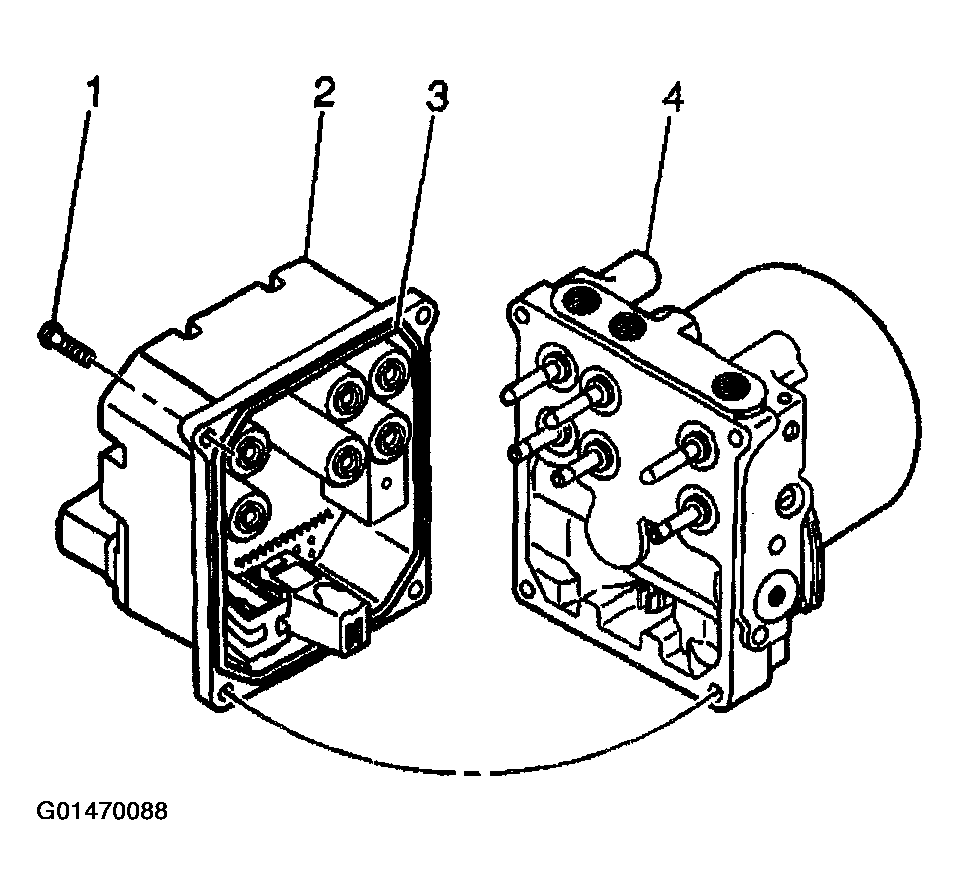

    Fig 1: Installing EBCM To BPMV
    G01470088Courtesy of GENERAL MOTORS CORP.
  4. Connect the EBCM harness connector (2).
  5. Push down lock tab and then move sliding connector cover back in the home position to lock.

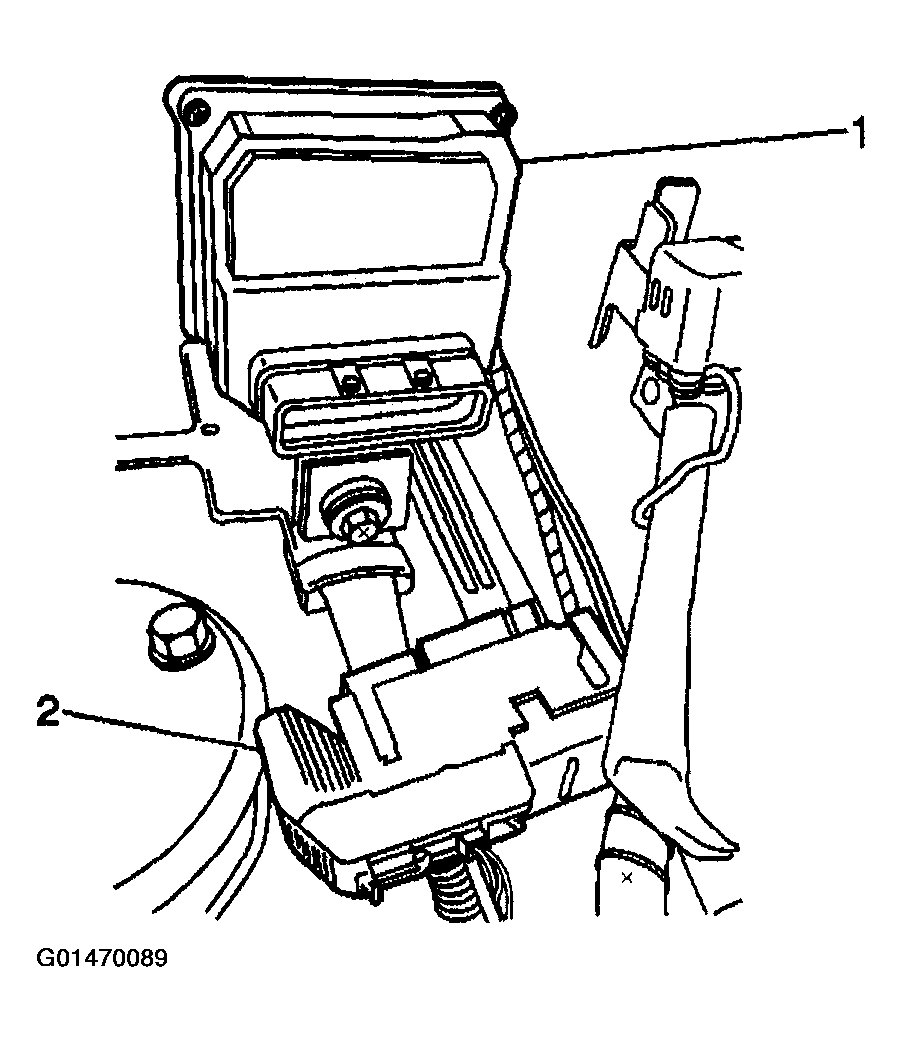

    Fig 2: Connecting EBCM Harness Connector
    G01470089Courtesy of GENERAL MOTORS CORP.
  6. Push the CPA (2) back into place.
  7. Perform DIAGNOSTIC SYSTEM CHECK - ABS .

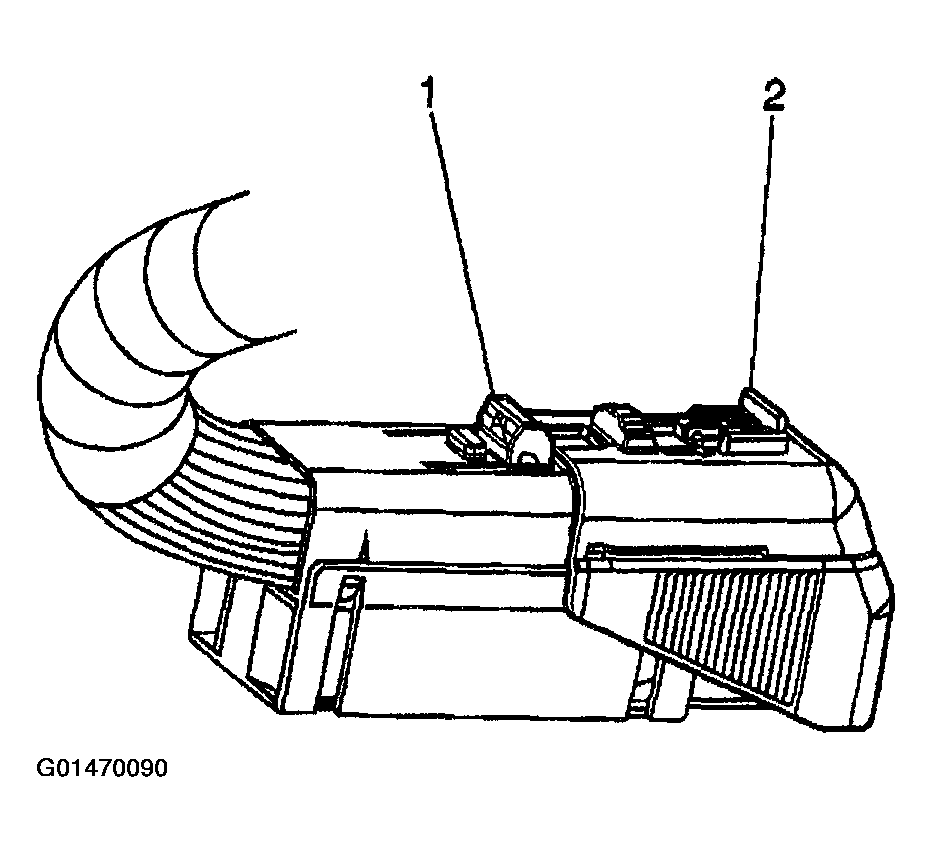

    Fig 3: Pushing CPA Back Into Place
    G01470090Courtesy of GENERAL MOTORS CORP.
