Installation Procedure

  1. Install the accelerometer (1) to the vehicle.
    NOTE: Refer to FASTENER NOTICE in Cautions and Notices.
  2. Install the two bolts (2) that retain the accelerometer.

    Tighten

    1. Tighten the two accelerometer bolts to 16 N.m (12 lb ft).

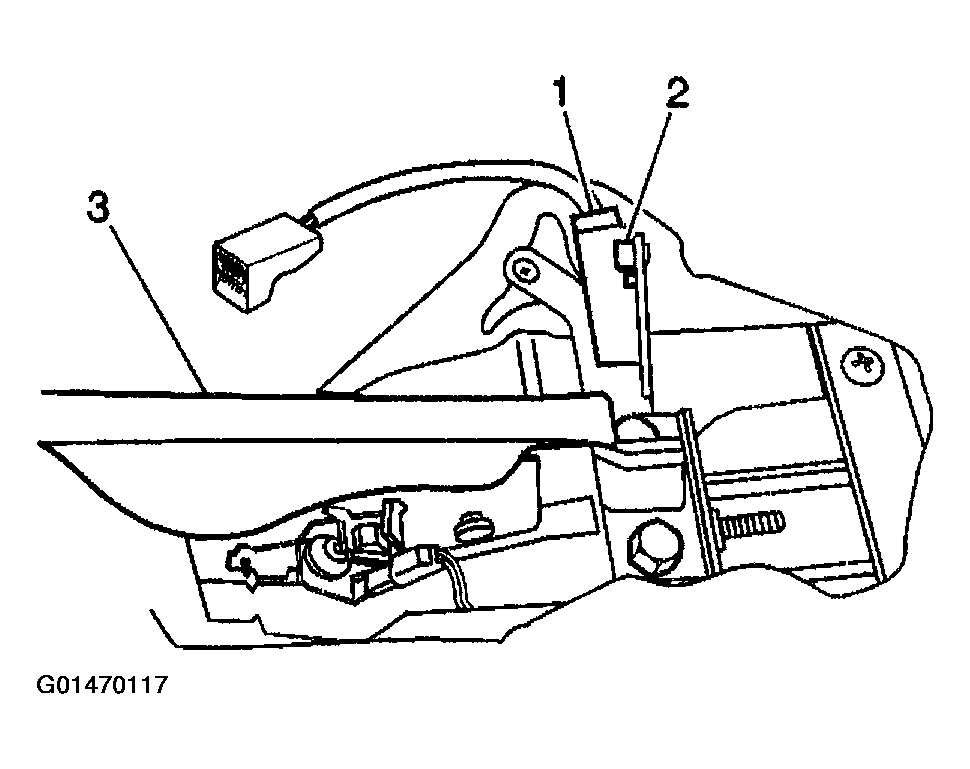

    Fig 1: Installing Accelerometer To Vehicle
    G01470117Courtesy of GENERAL MOTORS CORP.
  3. Connect the accelerometer electrical connector (2).

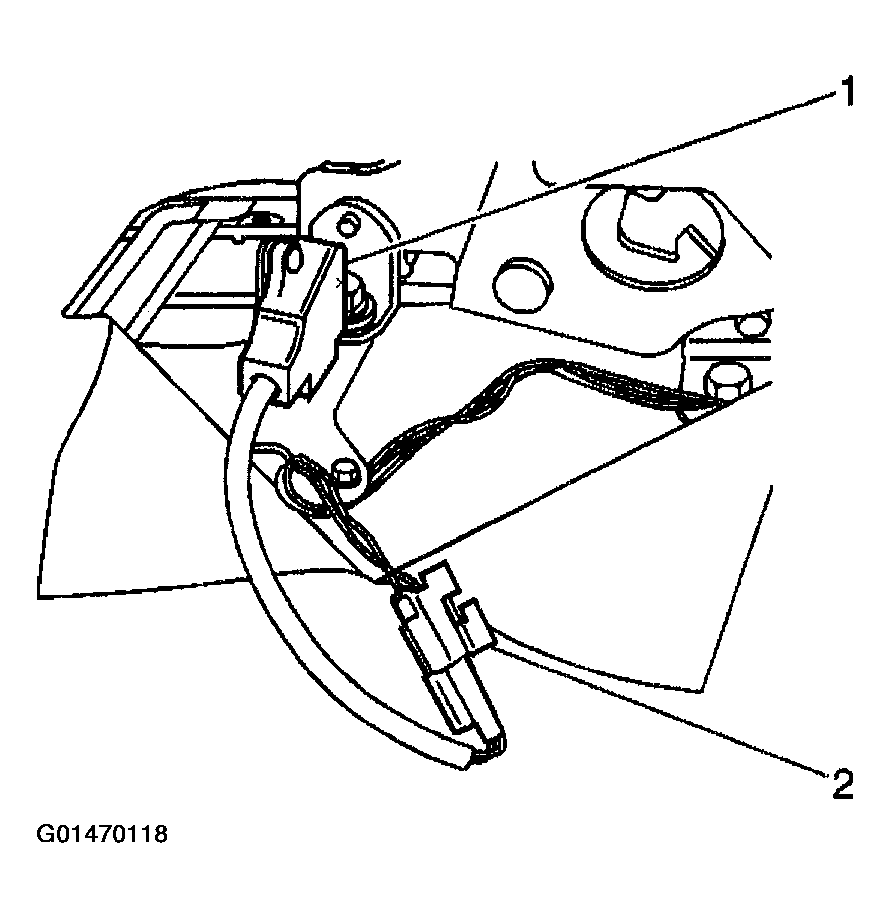

    Fig 2: Connecting Accelerometer Electrical Connector
    G01470118Courtesy of GENERAL MOTORS CORP.
  4. Install the parking brake lever bezel (1).
  5. Install the parking brake lever bezel attaching screws (2).
  6. Perform DIAGNOSTIC SYSTEM CHECK - ABS .

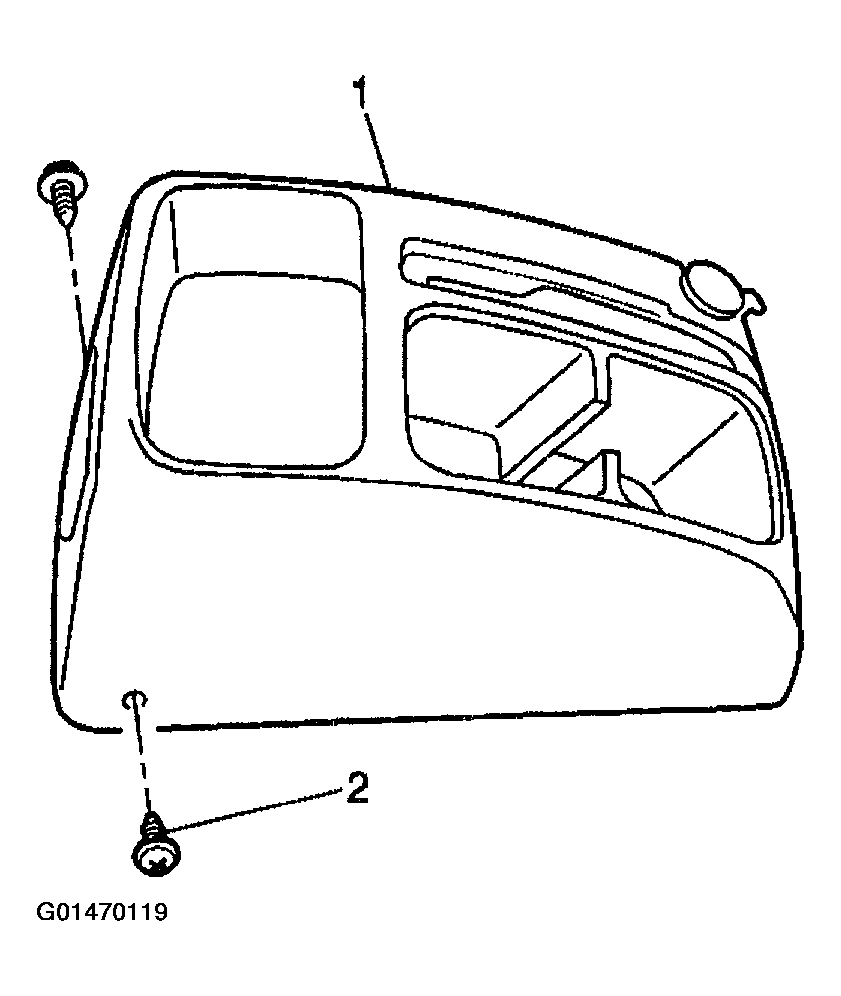

    Fig 3: Parking Brake Lever Bezel
    G01470119Courtesy of GENERAL MOTORS CORP.
