Steering Gear Disassembled View

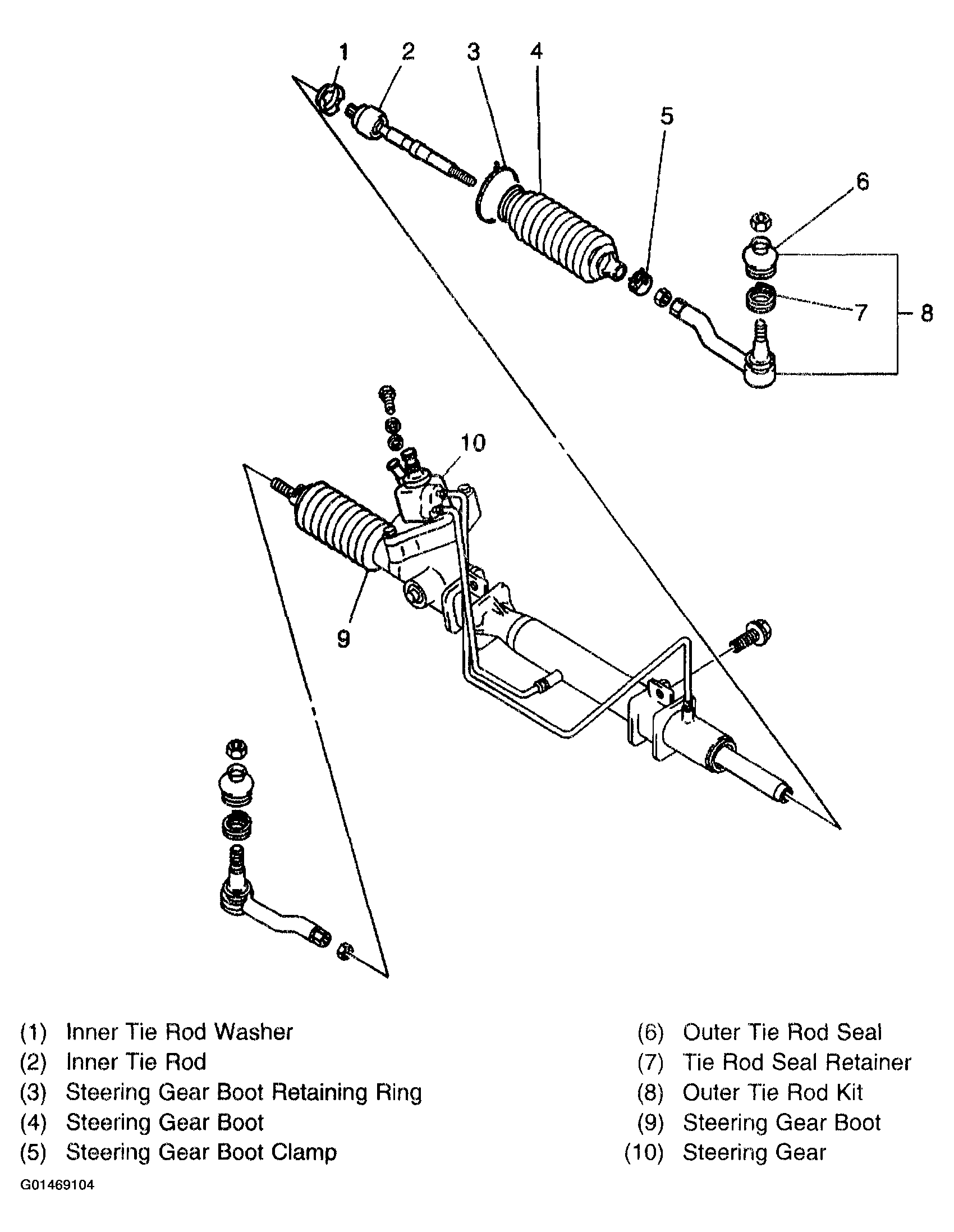

Fig 1: Disassembling View Of Steering Gear
Courtesy of GENERAL MOTORS CORP.
