Installation Procedure

  1. Install the front wheel speed sensor assembly (1) to the steering knuckle (2).
    NOTE: Refer to FASTENER NOTICE in Cautions and Notices.
  2. Install the retaining bolt (3).

    Tighten

    1. Tighten the retaining bolt to 7.8 N.m (69 lb in).
  3. Connect the front wheel speed sensor electrical connector.
  4. Lower the vehicle.
  5. Perform DIAGNOSTIC SYSTEM CHECK - ABS .

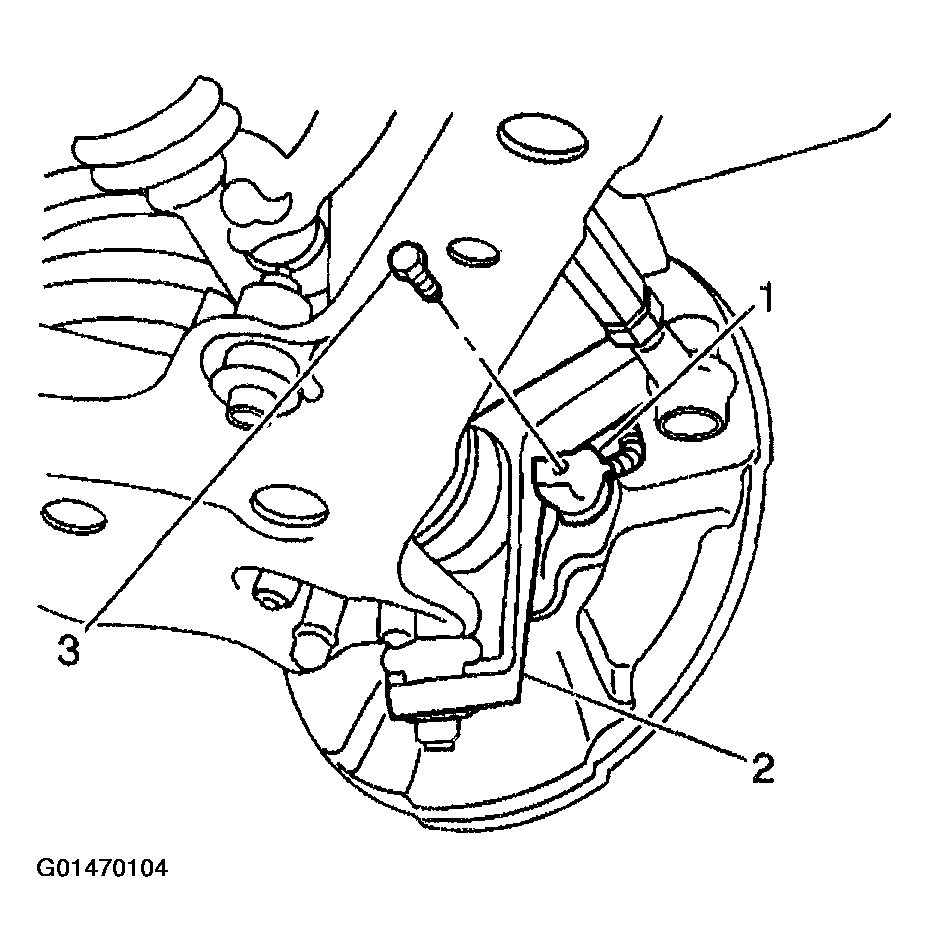

    Fig 1: Installing Front Wheel Speed Sensor Assembly To Steering Knuckle (Front)
    G01470104Courtesy of GENERAL MOTORS CORP.
