Engine 1.6L Components

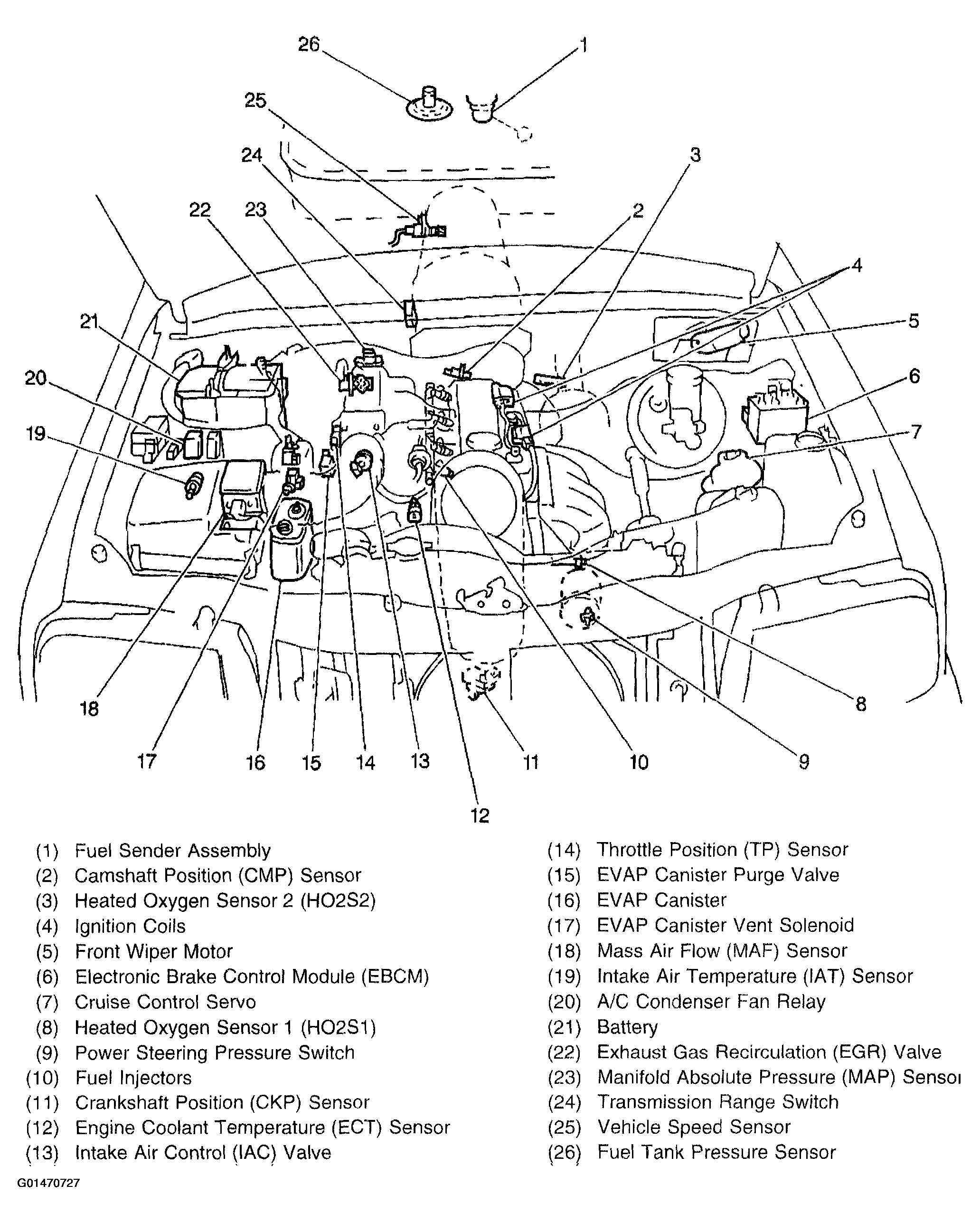

Fig 1: Locating Engine 1.6L Components
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
