ABS Connector End Views: Accelerometer

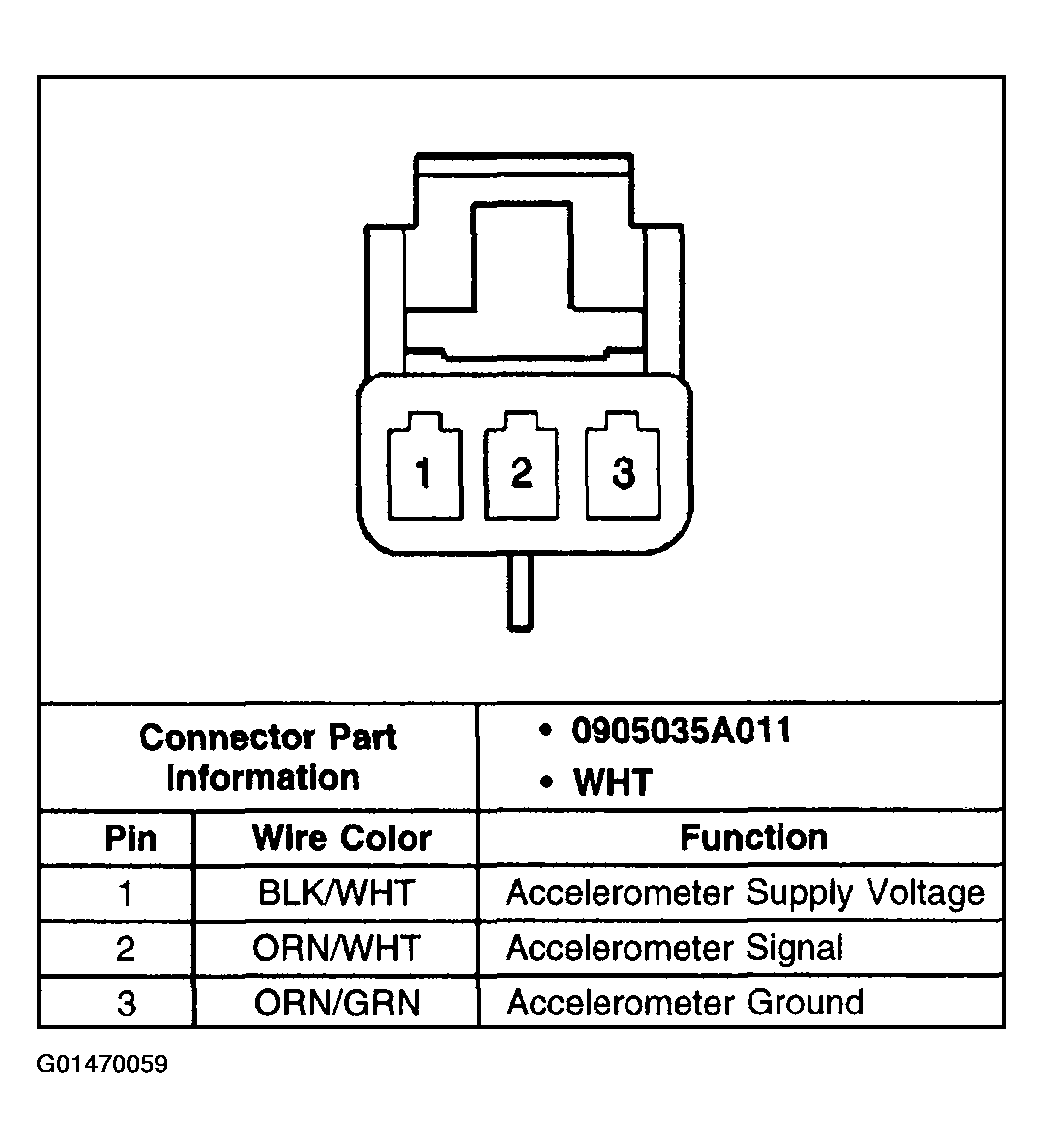

Fig 1: Accelerometer

G01470059

Courtesy of GENERAL MOTORS CORP.
