Instrument Panel Views

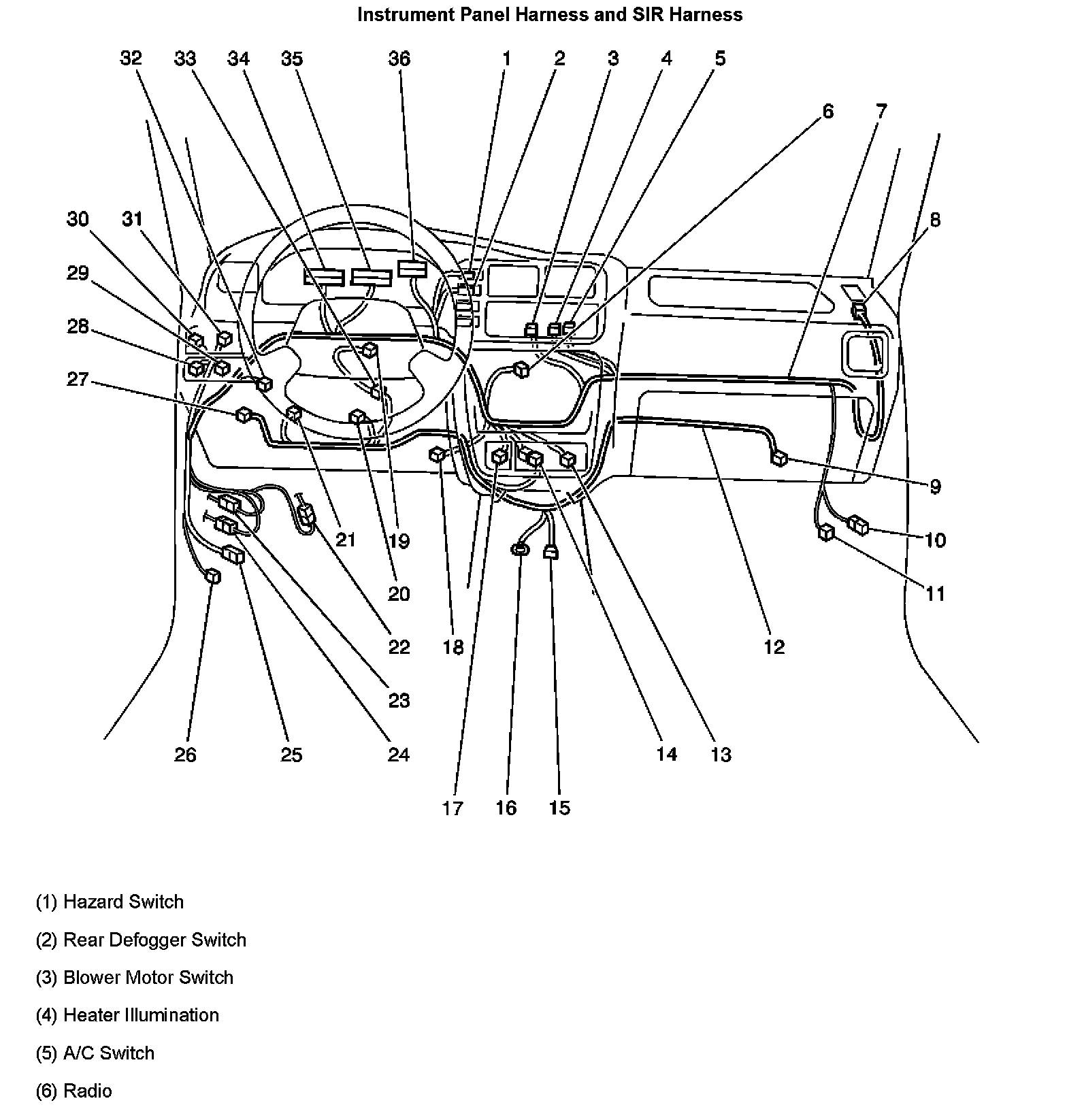

Instrument Panel Harness And SIR Harness Part 1:

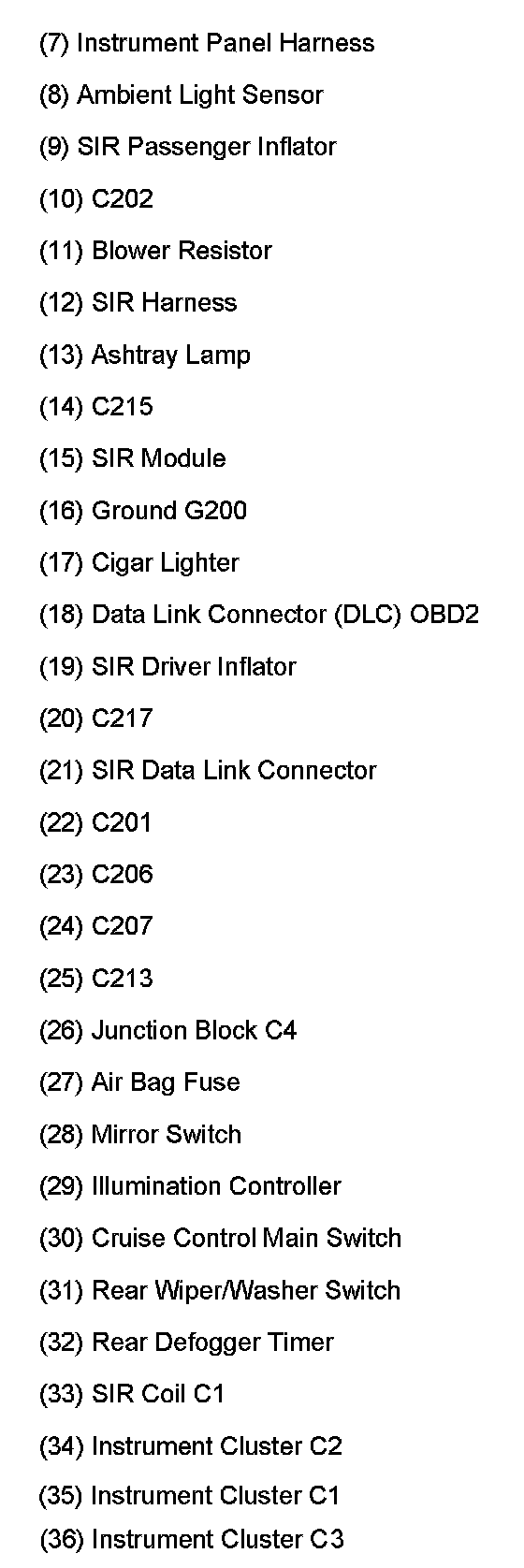

Instrument Panel Harness And SIR Harness Part 2:
