Installation Procedure

  1. Connect the security indicator lamp electrical connector to the security indicator lamp.
  2. Install the security indicator lamp to the instrument panel upper trim:
    1. Insert the lamp.
    2. Rotate the lamp clockwise to approximately 1/4 turn.
  3. Install the instrument panel upper trim. Refer to TRIM PAD REPLACEMENT - INSTRUMENT PANEL (I/P) UPPER  in Instrument Panel, Gages and Console.

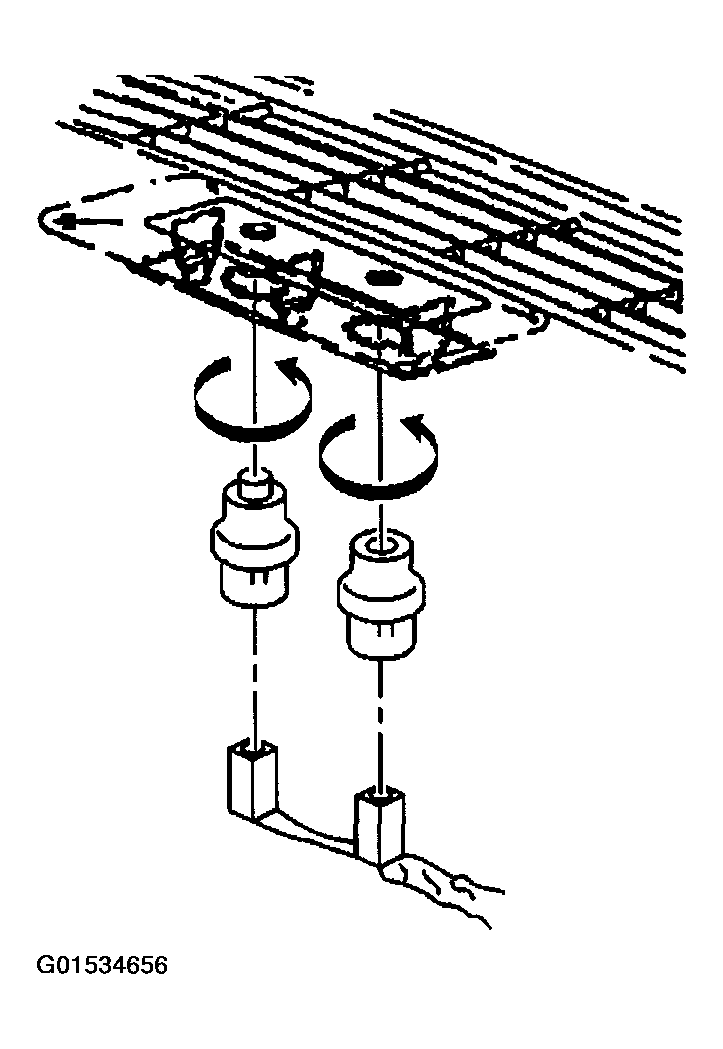

    Fig 1: Installing Security Indicator Lamp To Instrument Panel Upper Trim
    G01534656Courtesy of GENERAL MOTORS CORP.
