Installation Procedure

  1. Position the assist step to the assist step brackets.
  2. install the assist step nuts and hand tighten.
  3. Align the ends of the assist step bar 10 mm from the rocker panel.

    Tighten

    Tighten the assist step nuts to 10 N.m (89 lb in).

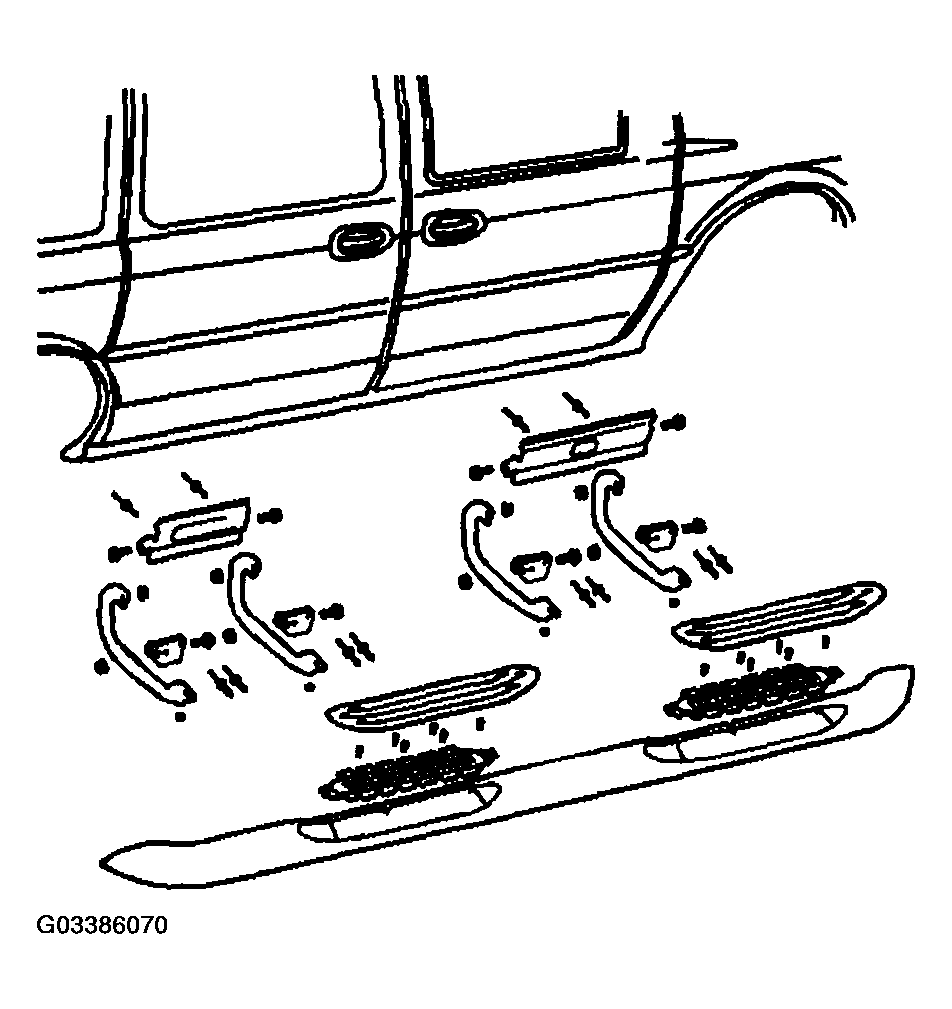

    Fig 1: Installing Assist Step
    G03386070Courtesy of GENERAL MOTORS CORP.
