Installation Procedure

  1. Install the battery tray.
    NOTE: Refer to FASTENER NOTICE in Cautions and Notices.
  2. Install the battery tray bolts.

    Tighten

    Tighten the battery tray bolts to 10 N.m (89 lb in).

  3. Install the battery. Refer to BATTERY REPLACEMENT   .

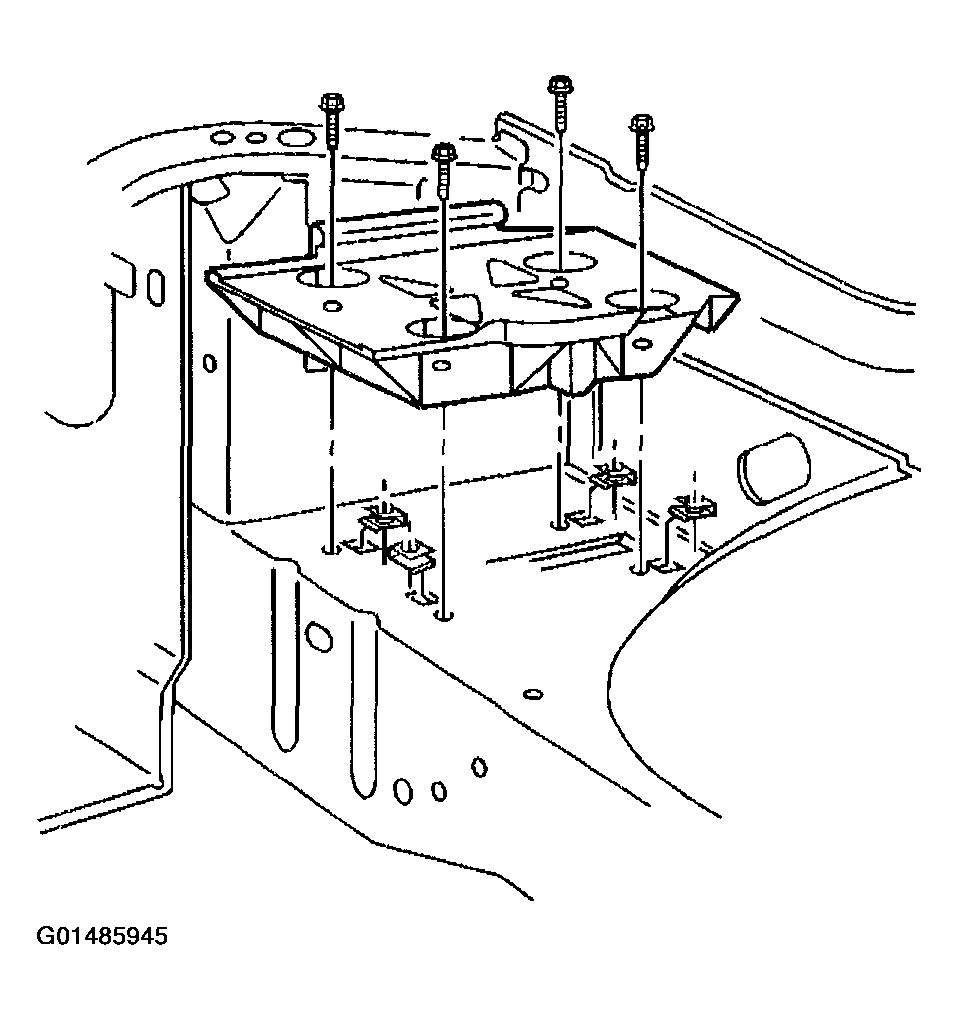

    Fig 1: Installing Battery Tray
    G01485945Courtesy of GENERAL MOTORS CORP.
