Installation Procedure

  1. Install the exhaust muffler heat shield to the vehicle with new rivets.
  2. Install the exhaust system muffler. Refer to MUFFLER REPLACEMENT   .
  3. Lower the vehicle.

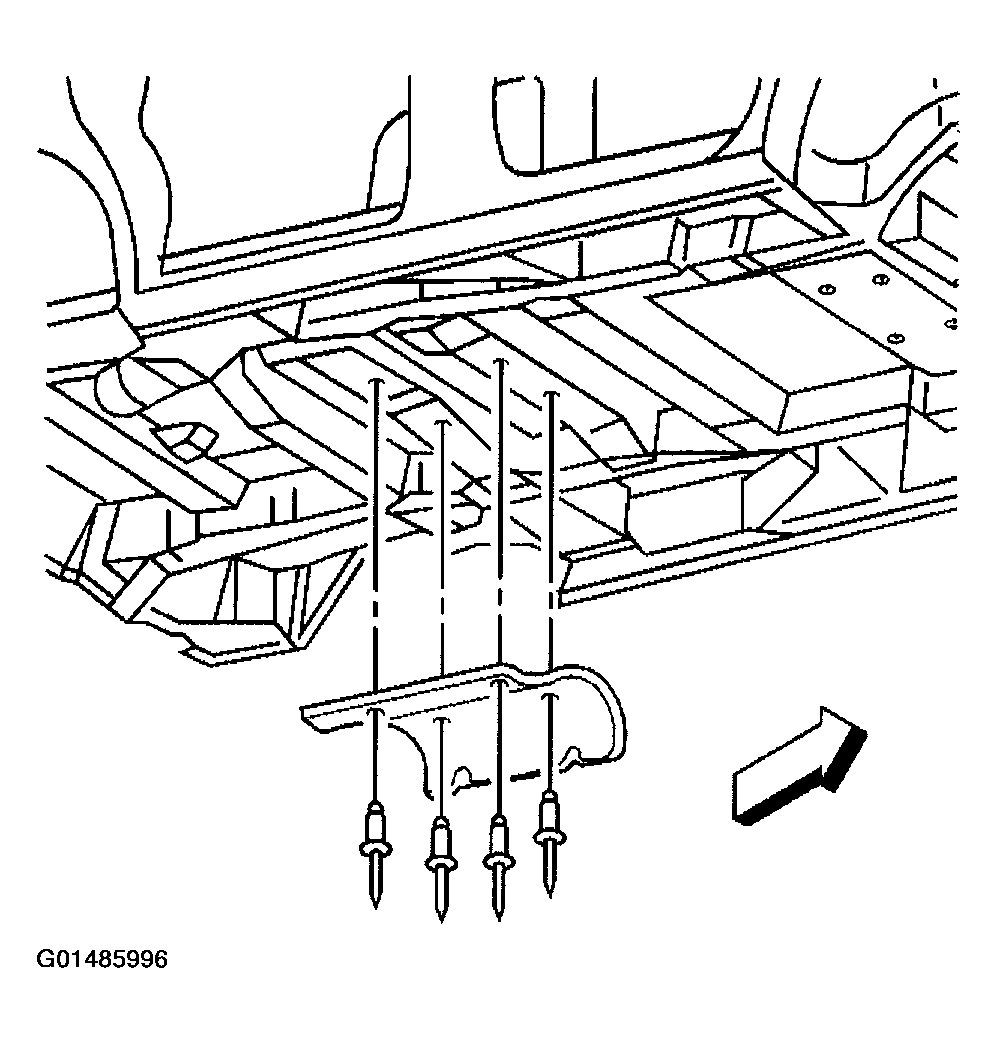

    Fig 1: Removing Exhaust Muffler Heat Shield From Vehicle
    G01485996Courtesy of GENERAL MOTORS CORP.
