Fuse Block Underhood Connector End View

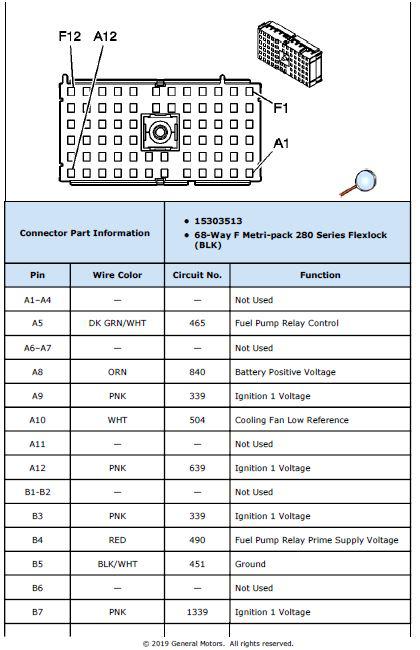

Fig 1: Fuse Block Underhood Connector End View 1 of 9
G00582490Courtesy of GENERAL MOTORS CORP.

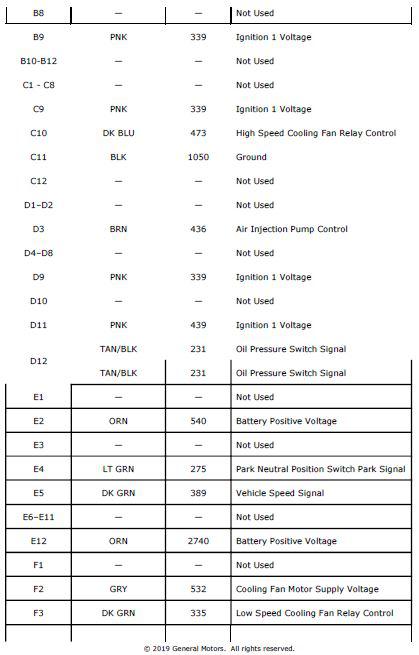

Fig 2: Fuse Block Underhood Connector End View 2 of 9
G00582651Courtesy of GENERAL MOTORS CORP.

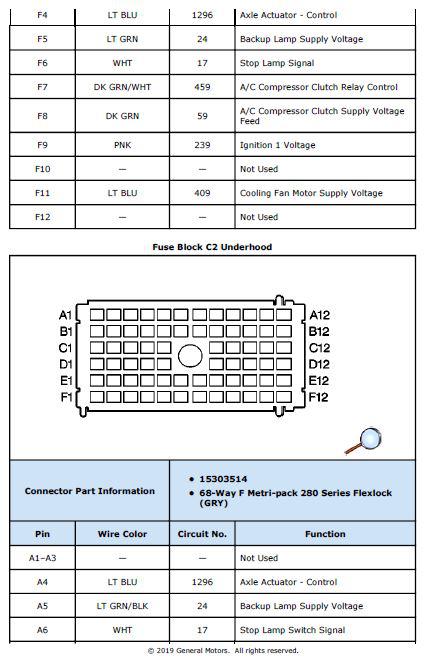

Fig 3: Fuse Block Underhood Connector End View 3 of 9
G00582652Courtesy of GENERAL MOTORS CORP.

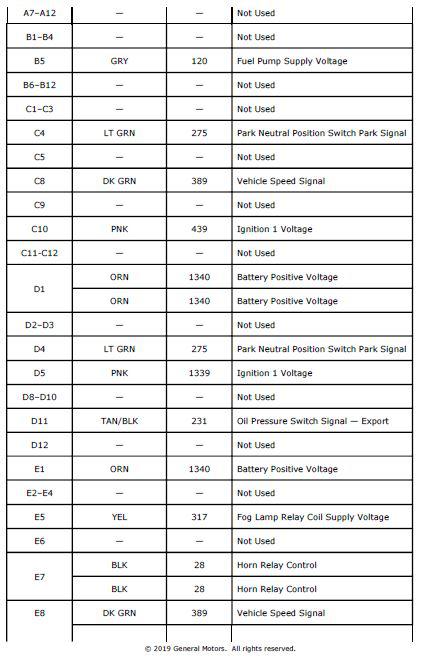

Fig 4: Fuse Block Underhood Connector End View 4 of 9
G00582653Courtesy of GENERAL MOTORS CORP.

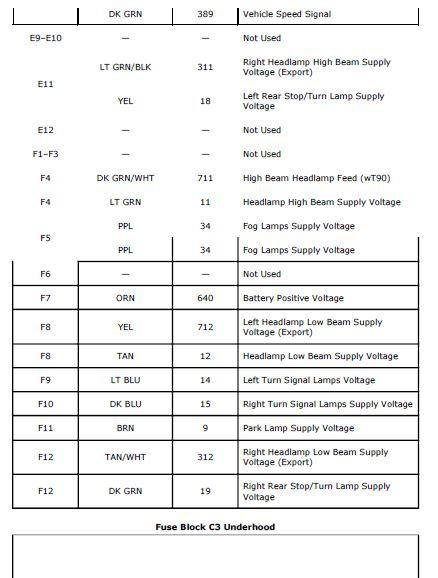

Fig 5: Fuse Block Underhood Connector End View 5 of 9
G00582654Courtesy of GENERAL MOTORS CORP.

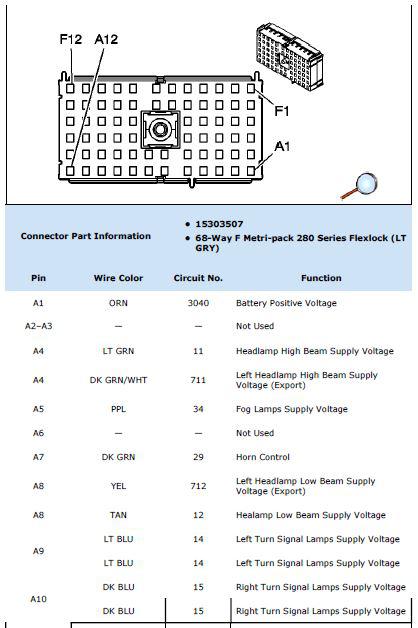

Fig 6: Fuse Block Underhood Connector End View 6 of 9
G00582655Courtesy of GENERAL MOTORS CORP.

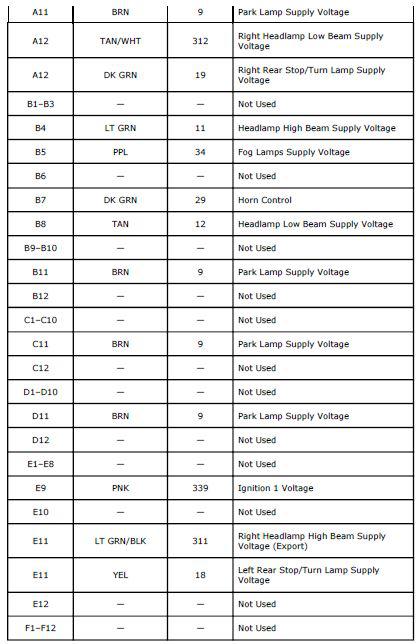

Fig 7: Fuse Block Underhood Connector End View 7 of 9
G00582656Courtesy of GENERAL MOTORS CORP.
Fig 8: Fuse Block Underhood Connector End View 8 of 9
G00582657Courtesy of GENERAL MOTORS CORP.

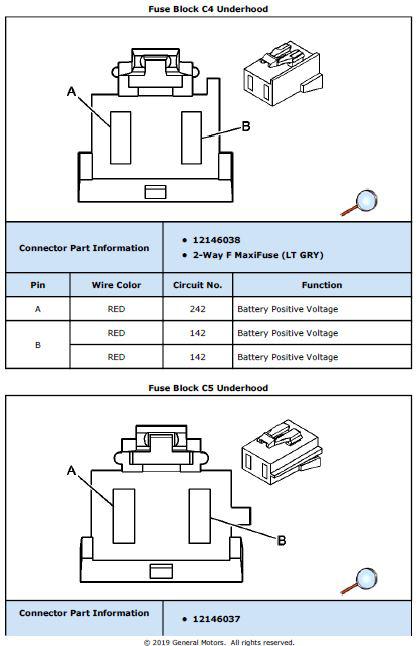

Fig 9: Fuse Block Underhood Connector End View 9 of 9
G00582657Courtesy of GENERAL MOTORS CORP.
