Removal Procedure

  1. Raise and support the vehicle.
  2. If the vehicle is equipped with all wheel drive, remove the right side engine splash shield in order to access the heat shield. Refer to SPLASH SHIELD REPLACEMENT - ENGINE  in Body Front End.

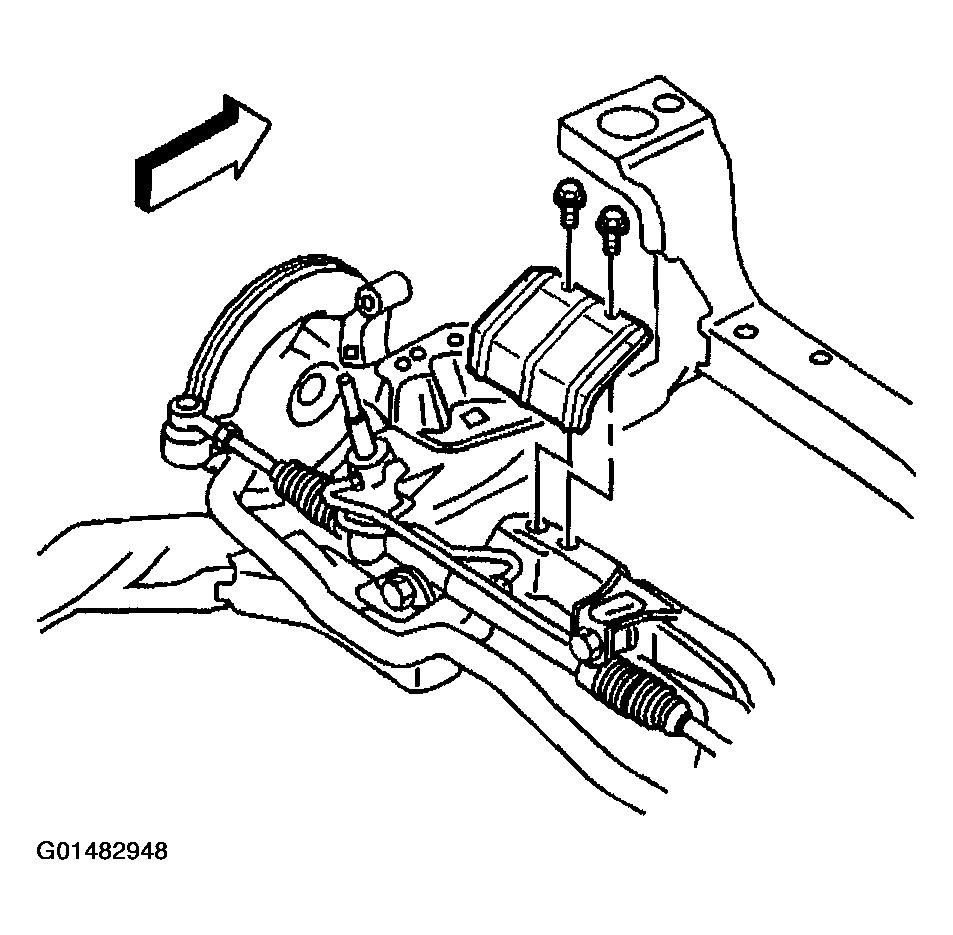

    Fig 1: Replacing Power Steering Gear Heat Shield
    G01482948Courtesy of GENERAL MOTORS CORP.
  3. Remove the steering gear heat shield bolts.
  4. Remove the steering gear heat shield.

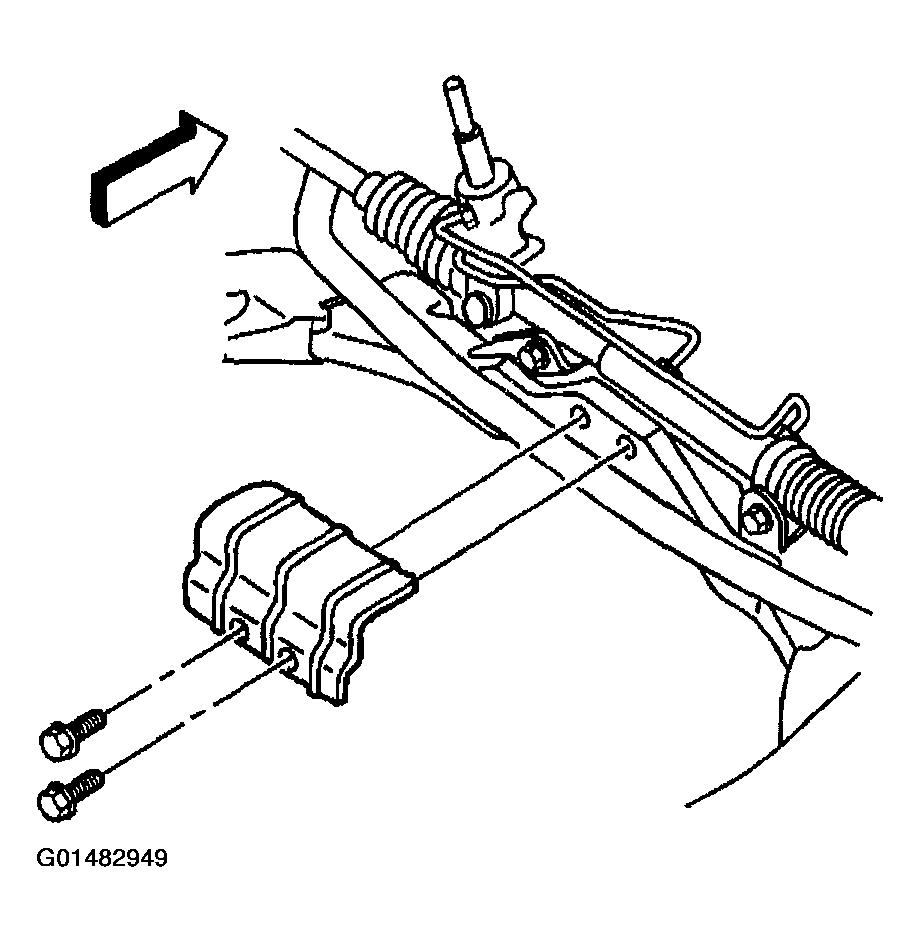

    Fig 2: Removing Steering Gear Heat Shield Bolts
    G01482949Courtesy of GENERAL MOTORS CORP.
