Installation Procedure

  1. Align the armrest (3) to the front door panel.

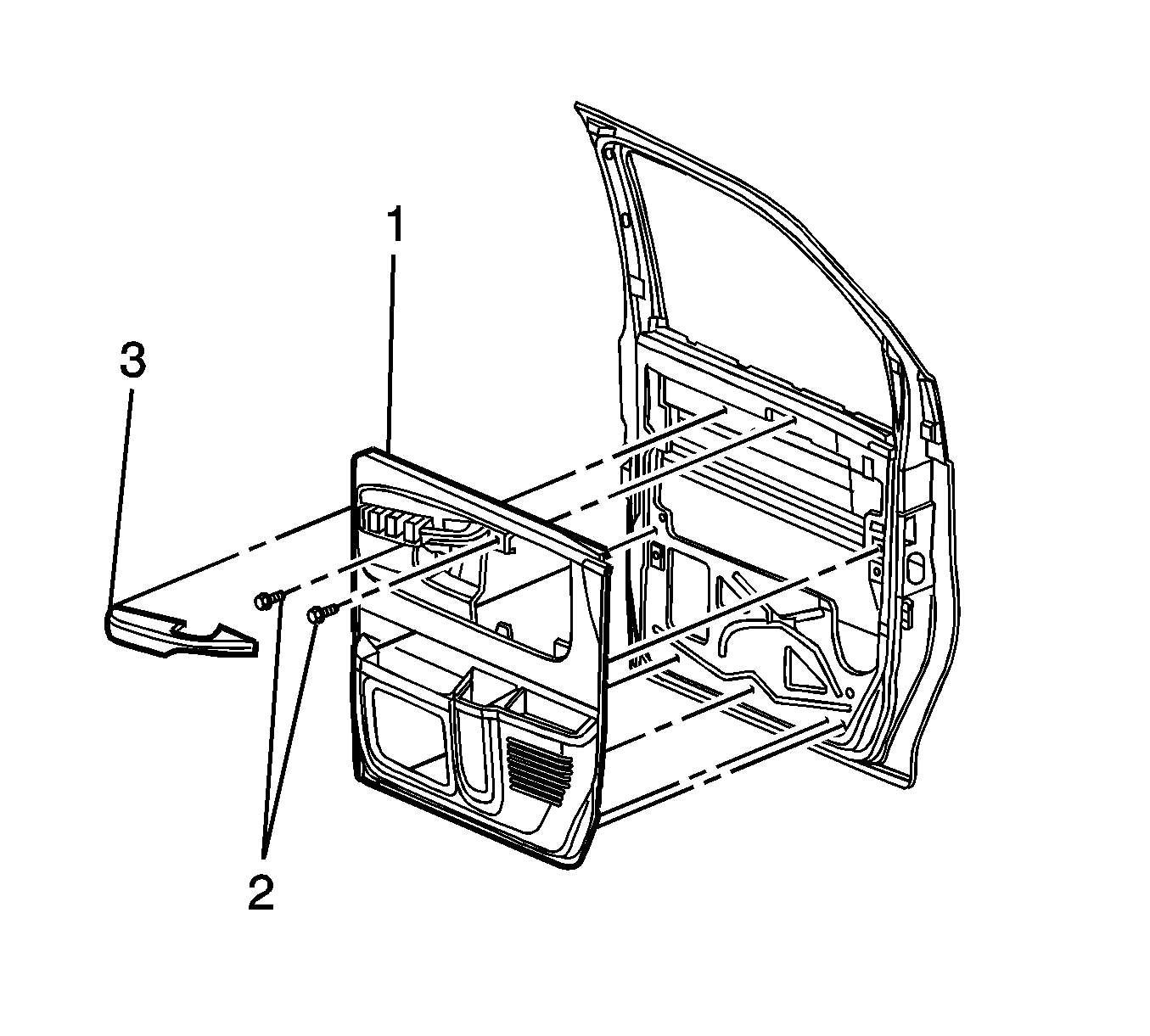

    2. Fig 1: Armrest, Door Trim Panel Screws & Door Trim Panel
    GM879678Courtesy of GENERAL MOTORS CORP.
  2. Press the armrest (3) towards the door trim panel in order to engage the armrest clips.
