Ground Distribution Schematics

Fig 1: SP101 Schematic

GM1221760

Courtesy of GENERAL MOTORS CORP.

Fig 2: SP102 Schematic

GM1221762

Courtesy of GENERAL MOTORS CORP.

Fig 3: SP103 Schematic

GM1221768

Courtesy of GENERAL MOTORS CORP.

Fig 4: SP201 Schematic

GM1221771

Courtesy of GENERAL MOTORS CORP.

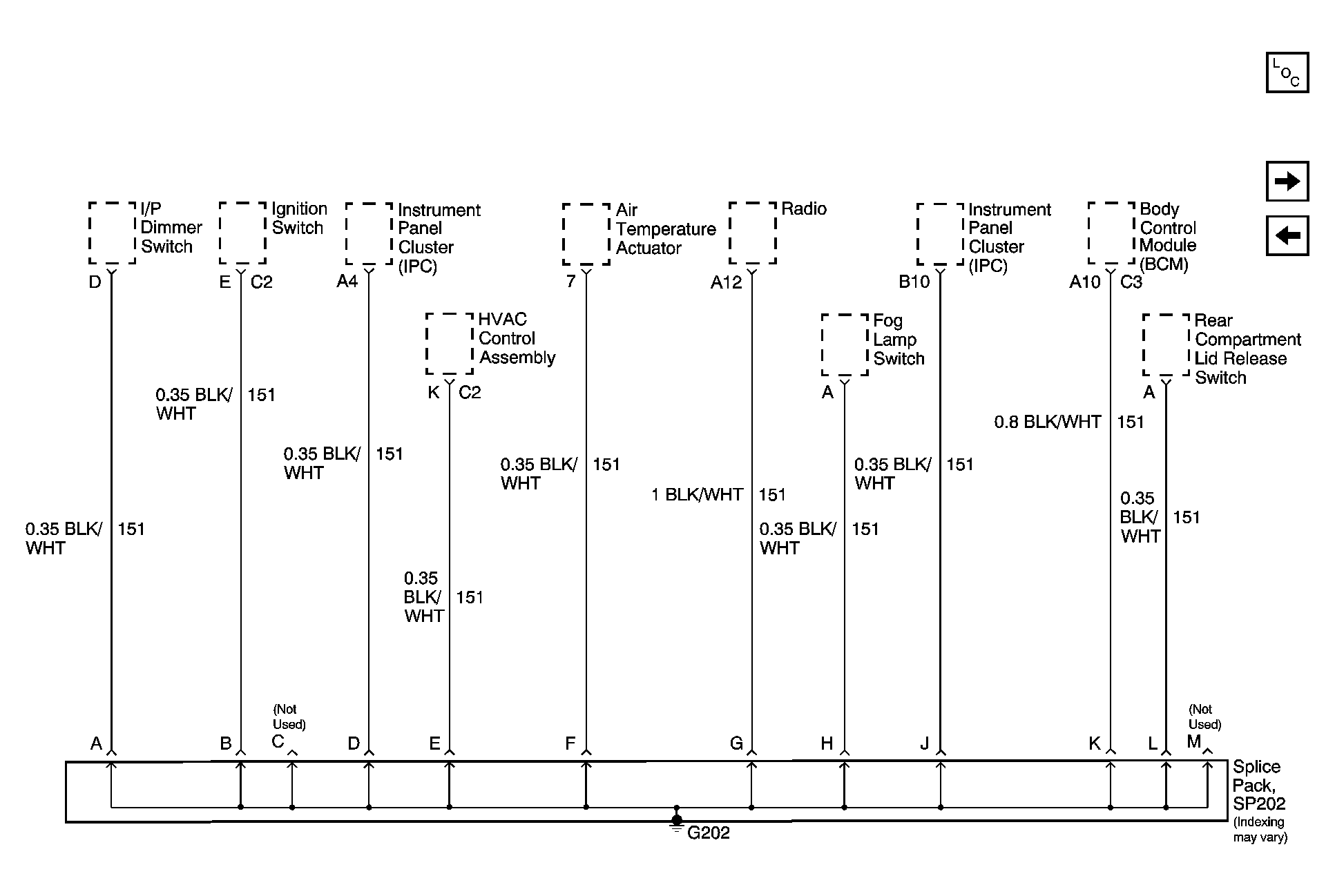

Fig 5: SP202 Schematic

GM781401

Courtesy of GENERAL MOTORS CORP.

Fig 6: SP203 Schematic

GM781402

Courtesy of GENERAL MOTORS CORP.

Fig 7: SP301 Schematic

GM781403

Courtesy of GENERAL MOTORS CORP.

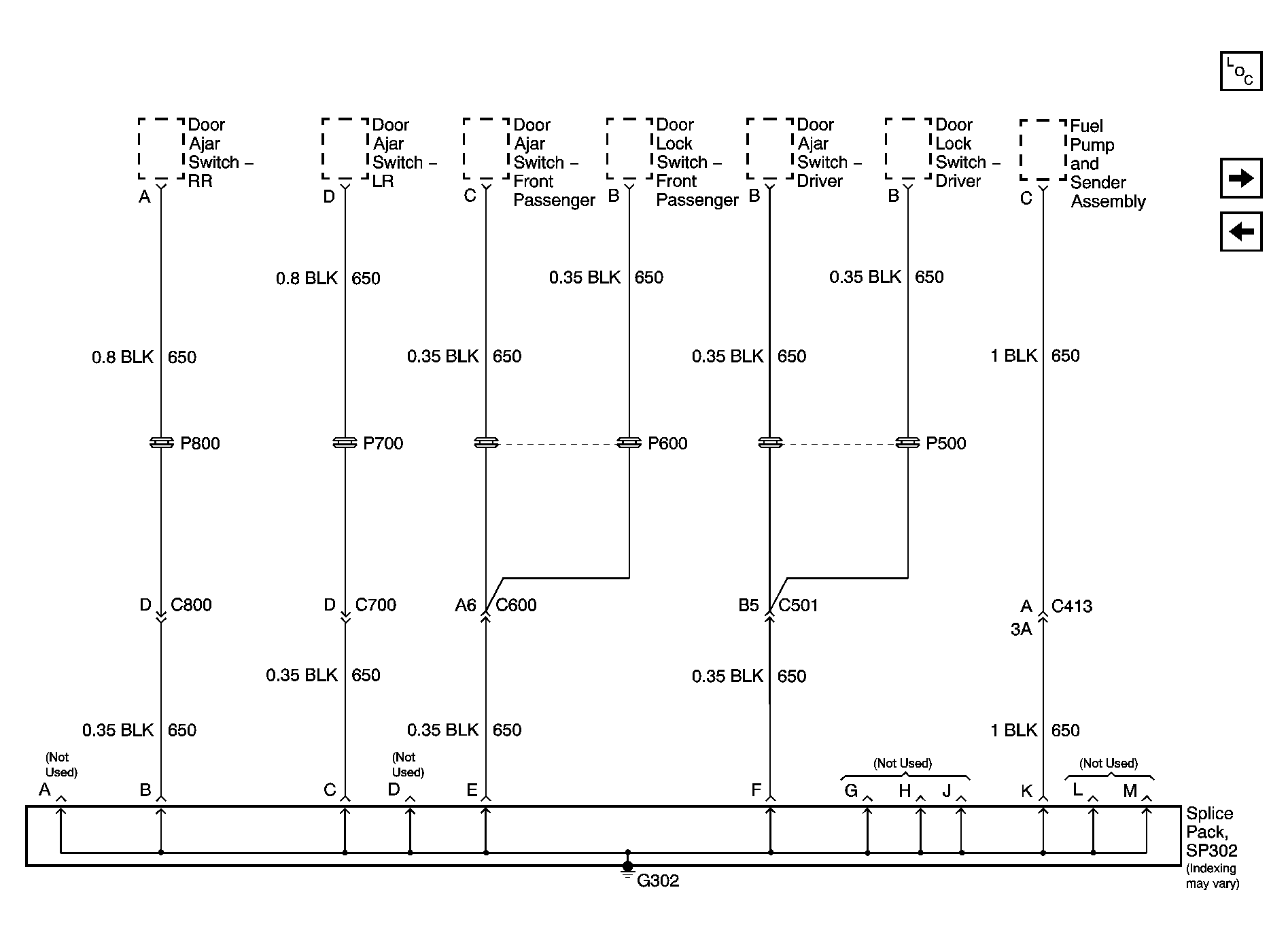

Fig 8: SP302 Schematic

GM1221779

Courtesy of GENERAL MOTORS CORP.

Fig 9: SP401 Schematic

GM1221782

Courtesy of GENERAL MOTORS CORP.

Fig 10: SP402 Schematic

GM781408

Courtesy of GENERAL MOTORS CORP.
