Power Seat Systems Component Views

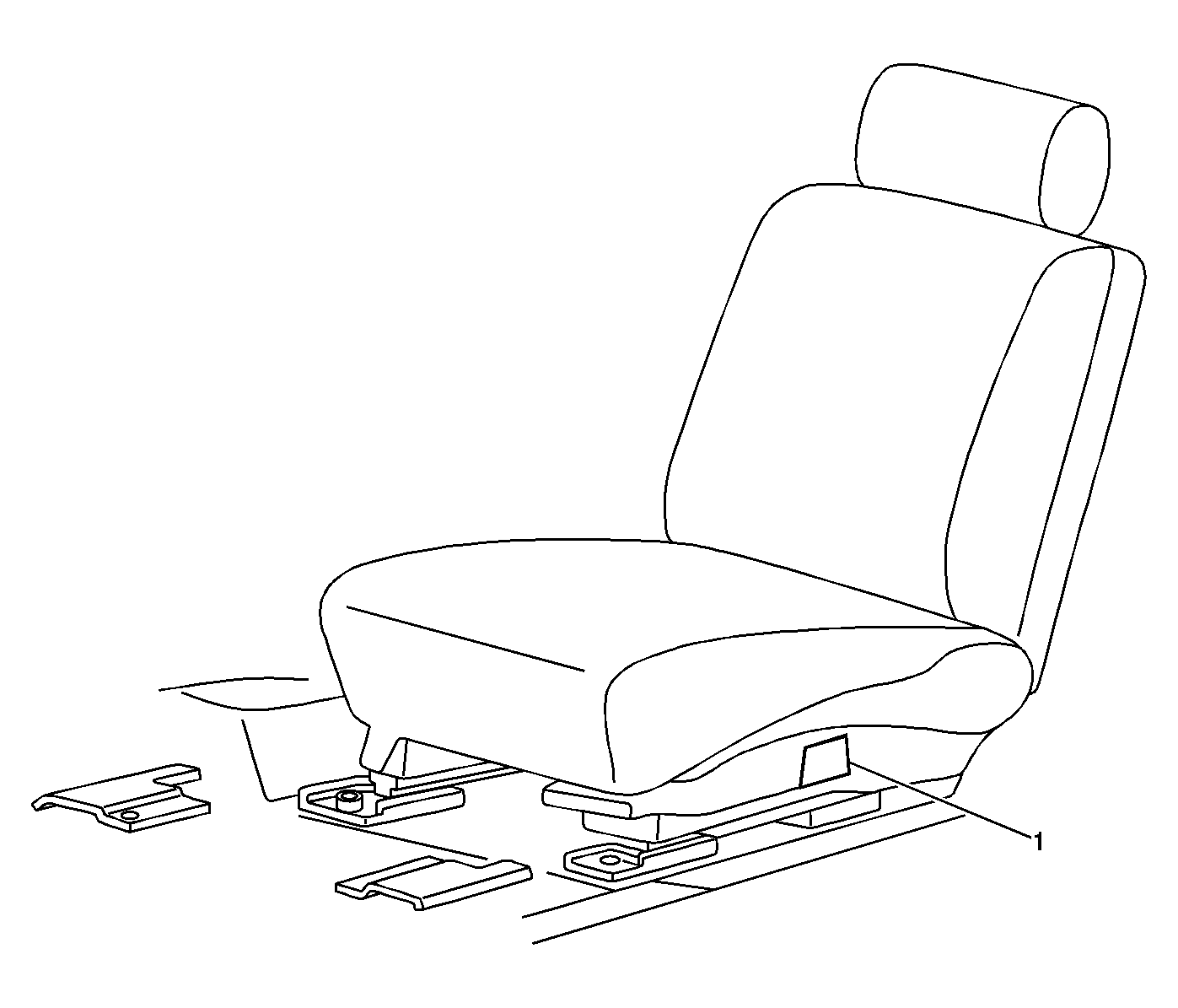

Fig 1: Driver Seat Component View
GM793115Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Seat Adjuster Switch

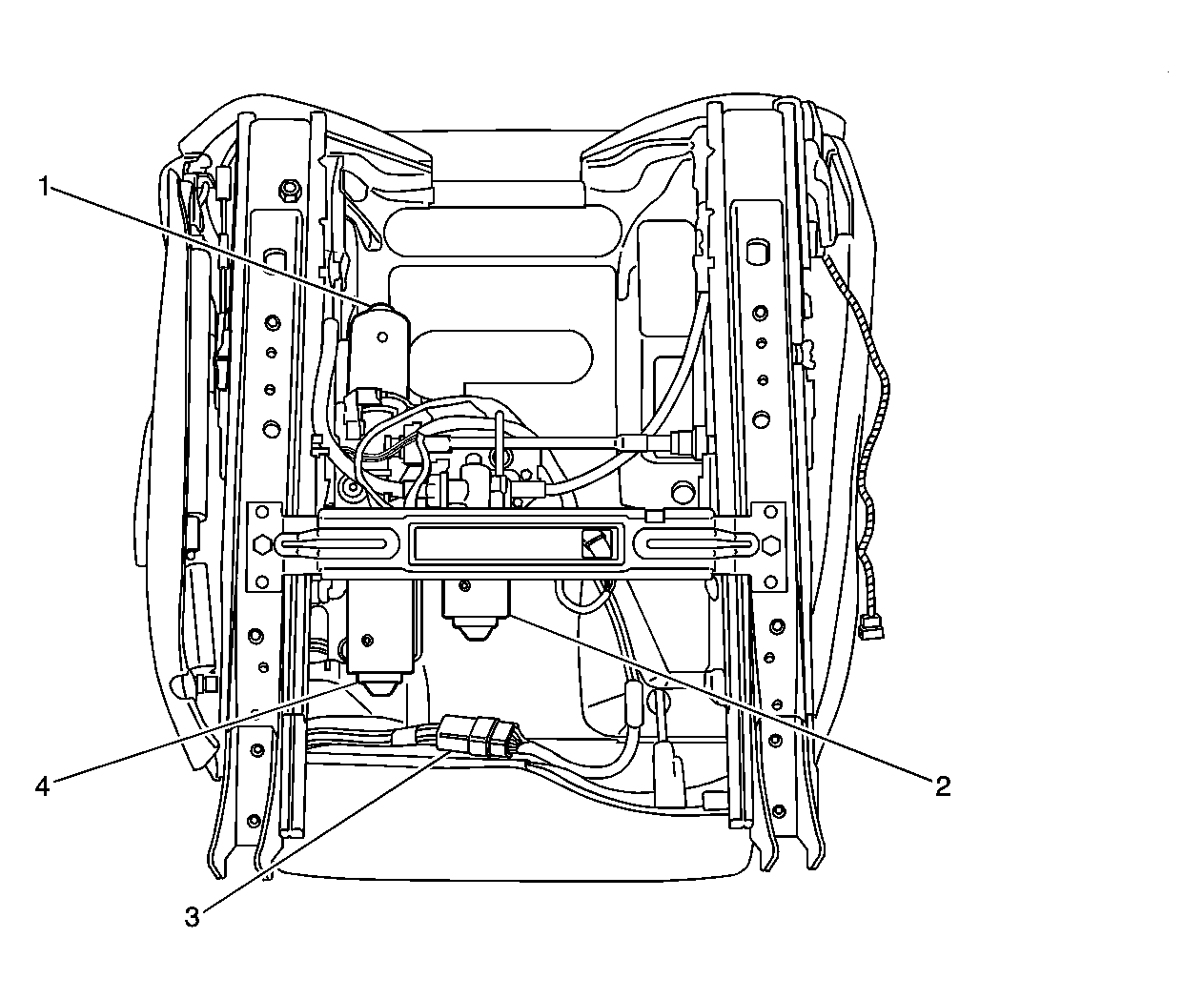

Fig 2: Under The Left Front Seat Component View
GM806753Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Seat Horizontal Motor
2 Seat Rear Vertical Motor
3 Seat Belt Switch Connector
4 Seat Front Vertical Motor
