Removal Procedure

WARNING: This page is about a different car, the 2004 Pontiac Grand Am and 2004 Oldsmobile Alero. However, it is still accessible from the selected car via links, so may be relevant.

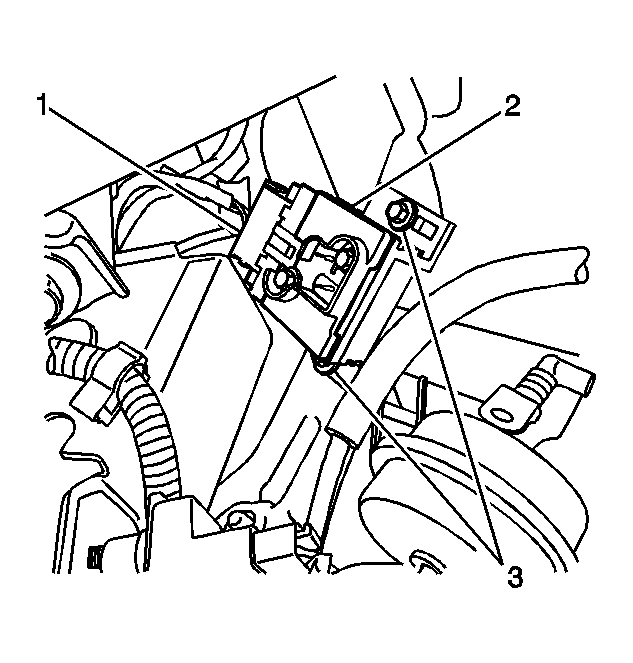

    Fig 1: View Of I/P Dimmer Module, Electrical Connector & Bolts
    GM818055Courtesy of GENERAL MOTORS CORP.
  1. Remove the left closeout/insulator panel. Refer to Closeout/Insulator Panel Replacement - Left (Outboard) or Closeout/Insulator Panel Replacement - Left (Inboard) in Instrument Panel, Gages, and Console.
  2. Remove the I/P dimmer module bolts (3).
  3. Remove the I/P dimmer module (2) from the HVAC bracket.
  4. Disconnect the electrical connector (1) from the I/P dimmer module (2).
