Enabling Procedure

WARNING: This page is about a different car, the 2004 Pontiac Grand Am and 2004 Oldsmobile Alero. However, it is still accessible from the selected car via links, so may be relevant.

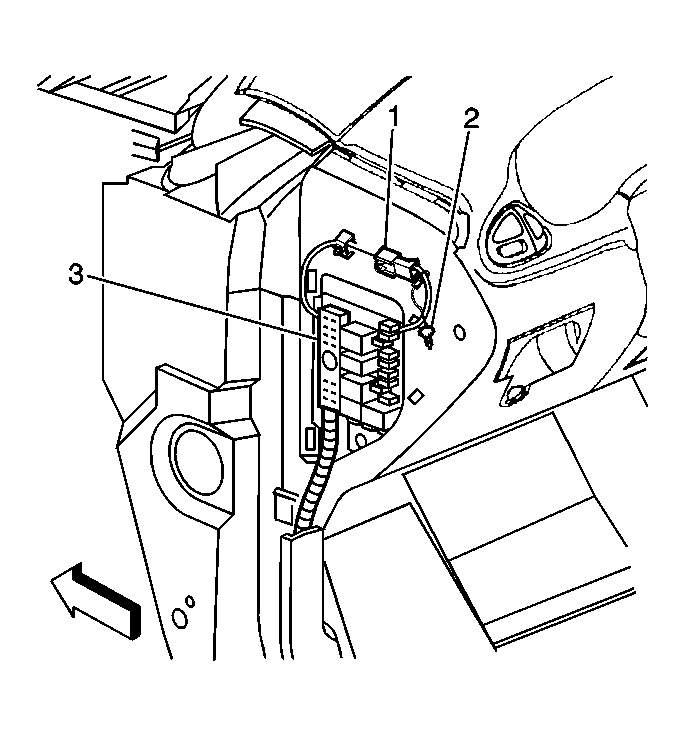

    Fig 1: View Of LH Fuse/Relay Panel
    GM241289Courtesy of GENERAL MOTORS CORP.
  1. Remove the key from the ignition switch.
  2. Connect the inflatable restraint steering wheel module coil connector (1) located above the LH I/P wiring harness junction block.
  3. Install the CPA (2) to the steering wheel module coil connector (1).
  4. Install the AIR BAG Fuse to the LH I/P wiring harness junction block (3).
  5. Install the LH I/P wiring harness junction block access panel.
  6. Staying well away from both air bags, turn ON the ignition.
    1. The AIR BAG indicator will flash seven times.
    2. The AIR BAG indicator will then turn OFF.
  7. Perform Diagnostic System Check - SIR  if the AIR BAG indicator does not operate as described.
