Installation Procedure

WARNING: This page is about a different car, the 2004 Pontiac Grand Am and 2004 Oldsmobile Alero. However, it is still accessible from the selected car via links, so may be relevant.

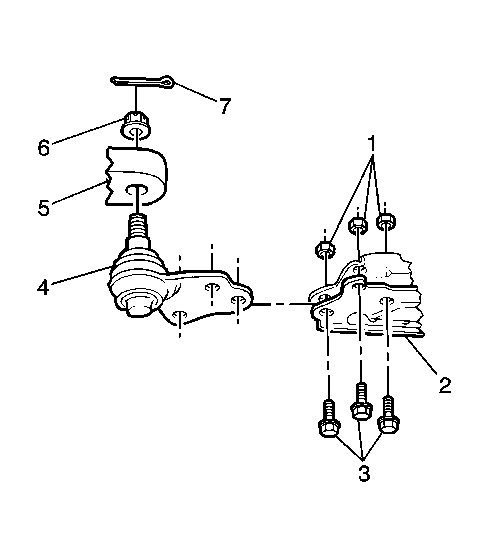

    Fig 1: Installing Ball Joint, Bolts & Nuts
    GM165250Courtesy of GENERAL MOTORS CORP.
  1. Install the ball joint (4) in the control arm (2).
  2. Install the three ball joint bolts (3) and nuts (1) as shown on the instruction sheet in the ball joint kit. Tighten the ball joint bolts to specifications found in the ball joint kit.
  3. Install the lower control arm. Refer to Lower Control Arm Replacement .
