Power and Grounding Component Views

WARNING: This page is about a different car, the 2004 Pontiac Grand Am and 2004 Oldsmobile Alero. However, it is still accessible from the selected car via links, so may be relevant.
Fig 1: Left Front Side Of Engine Compartment Component View
GM820051Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 G104
2 Battery

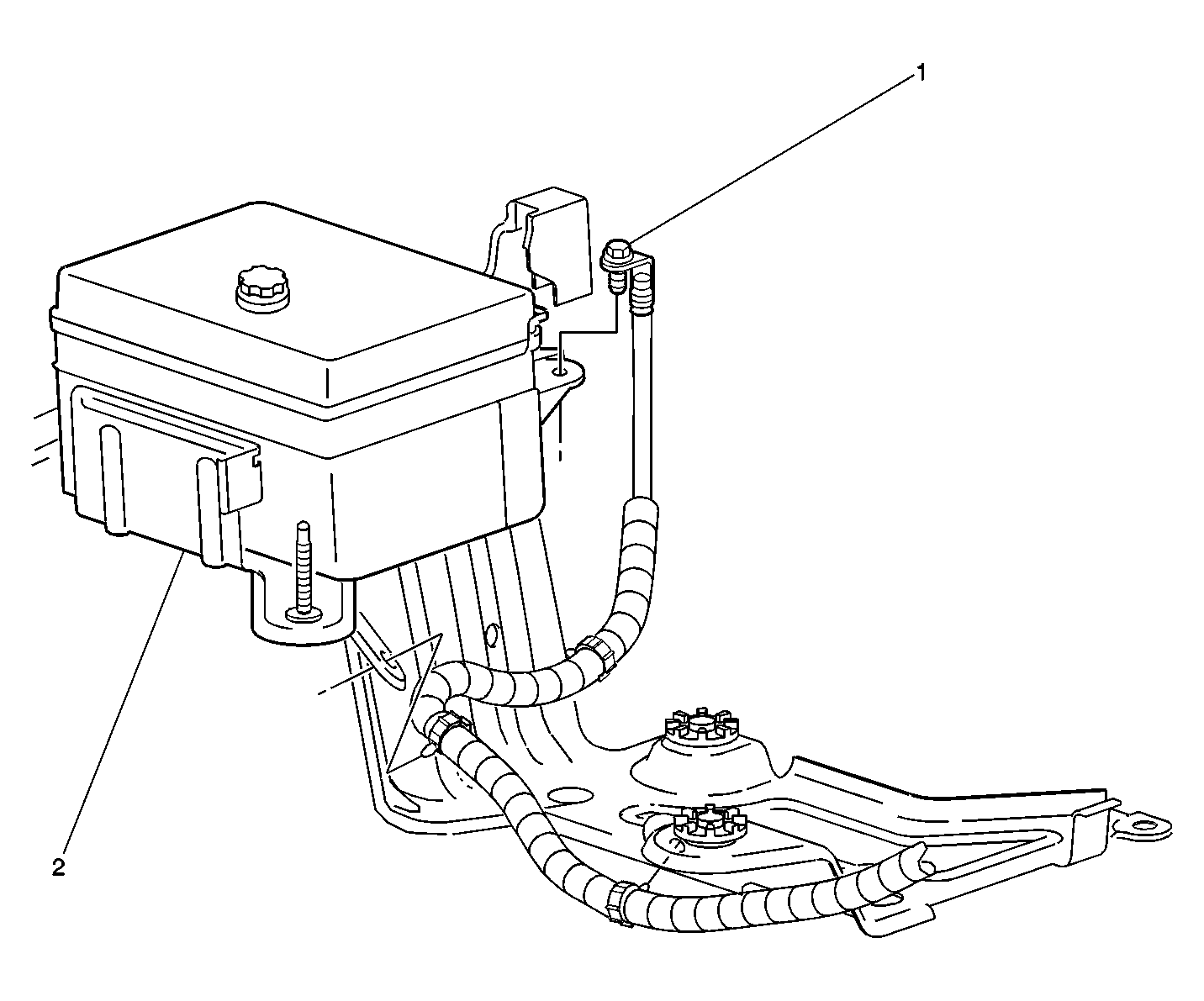

Fig 2: Left Rear Side Of The Engine Compartment Component View
GM264417Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Remote Battery Stud
2 Fuse Block - Underhood

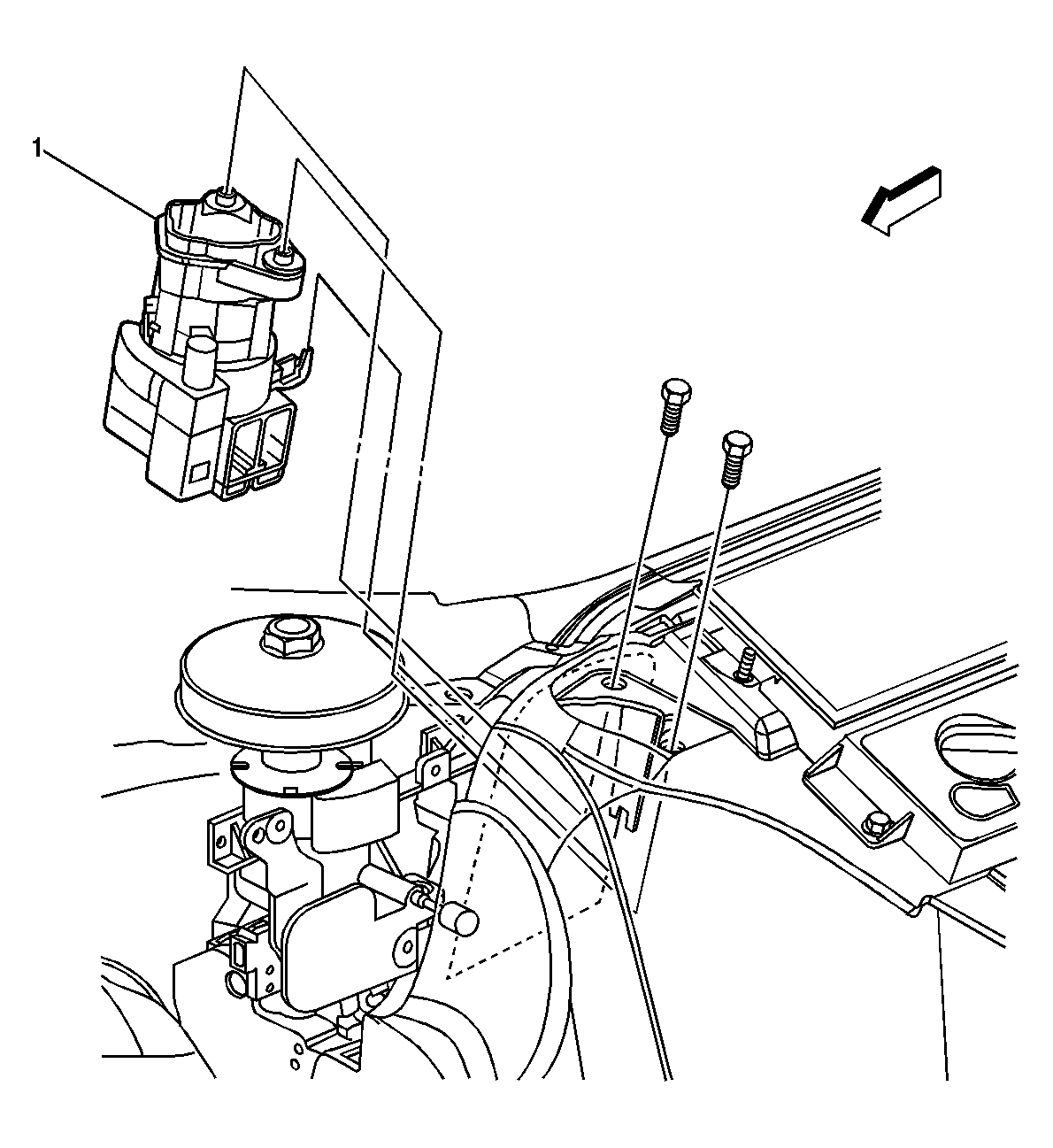

Fig 3: Left Front Of Instrument Panel Component View
GM820728Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Ignition Switch
Fig 4: Left Side Of Instrument Panel Component View
GM328110Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Horn Switch
2 Inflatable Restraint Steering Wheel Module Connector
3 G201
4 G202
5 Fuse Block - Left I/P
Fig 5: I/P Harness - RH Component View
GM728841Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Blower Motor Resistor Assembly Connector
2 Blower Motor
3 Fuse Block - Right I/P, C1 and C2
4 Inflatable Restraint I/P Module Connector
5 Splice Pack, SP203
6 G203
7 Body Control Module (BCM)
8 Blower Motor Resistor Assembly
Fig 6: Top Right Side Of The I/P Component View
GM264438Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 I/P Harness
2 I/P Compartment Lamp/Switch
3 Air Temperature Actuator Connector
4 Cigar Lighter Connector
5 I/P Compartment Lamp (Oldsmobile only)
6 Accessory Power Outlet Connector (Oldsmobile only)
7 HVAC Control Assembly Connectors
Fig 7: Instrument Panel Component View
GM747979Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Turn Signal/Multifunction Switch
2 Ignition Switch
3 Traction Control Switch (Pontiac)
4 Hazard Switch
5 Cigar Lighter
6 Steering Wheel Controls - Right
7 Cruise Control ON/OFF Switch
8 Steering Wheel Controls - Left
9 Fog Lamp Switch
10 I/P Dimmer Switch
11 Turn Signal/Multifunction Switch
12 Instrument Panel Cluster (IPC)

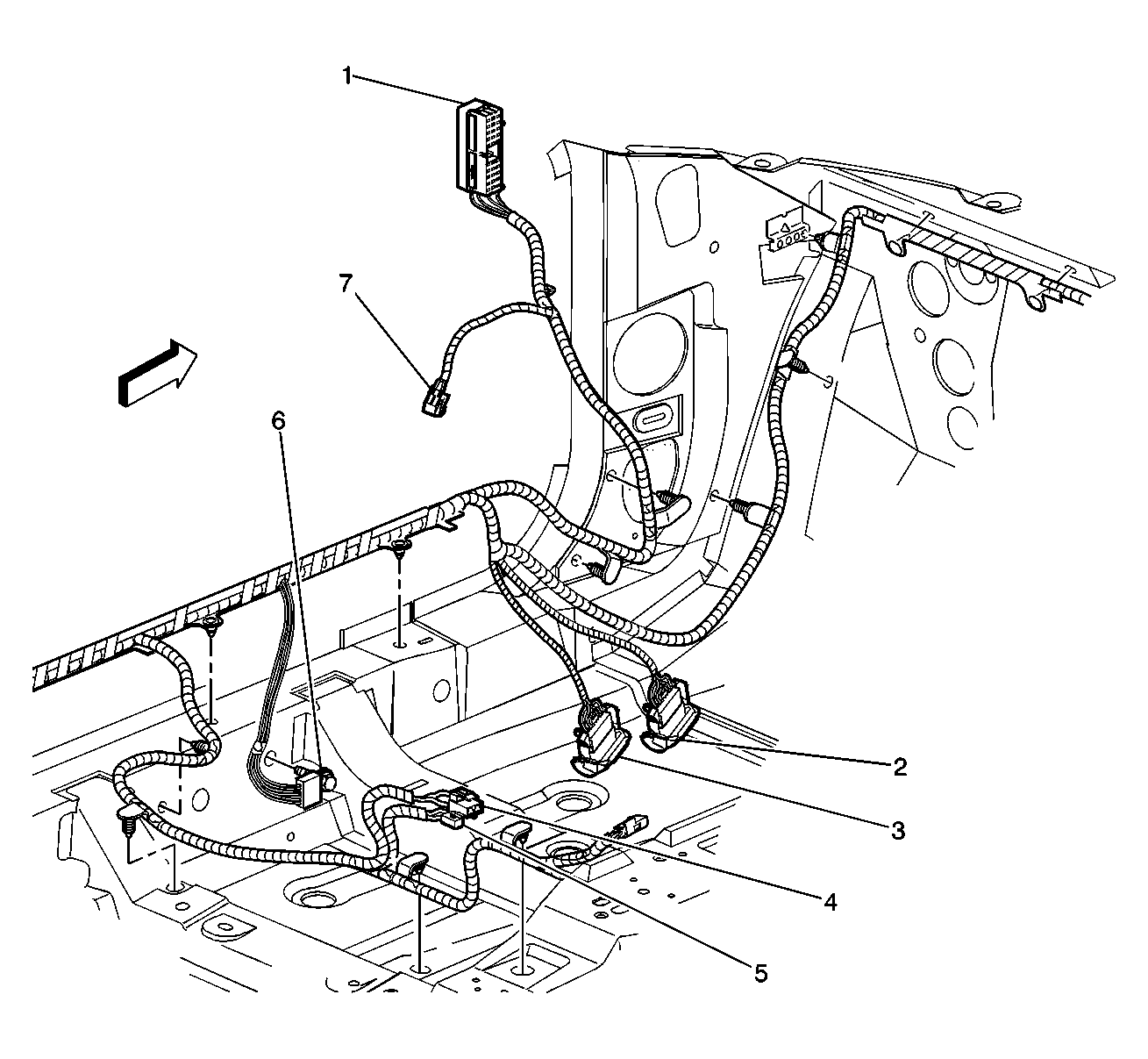

Fig 8: Left Side Of Passenger Compartment Component View
GM328234Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Fuse Block - Left IP, C3
2 C500
3 C501
4 C306
5 Seat Belt Switch Connector
6 G301
7 C300
