SIR Component Views

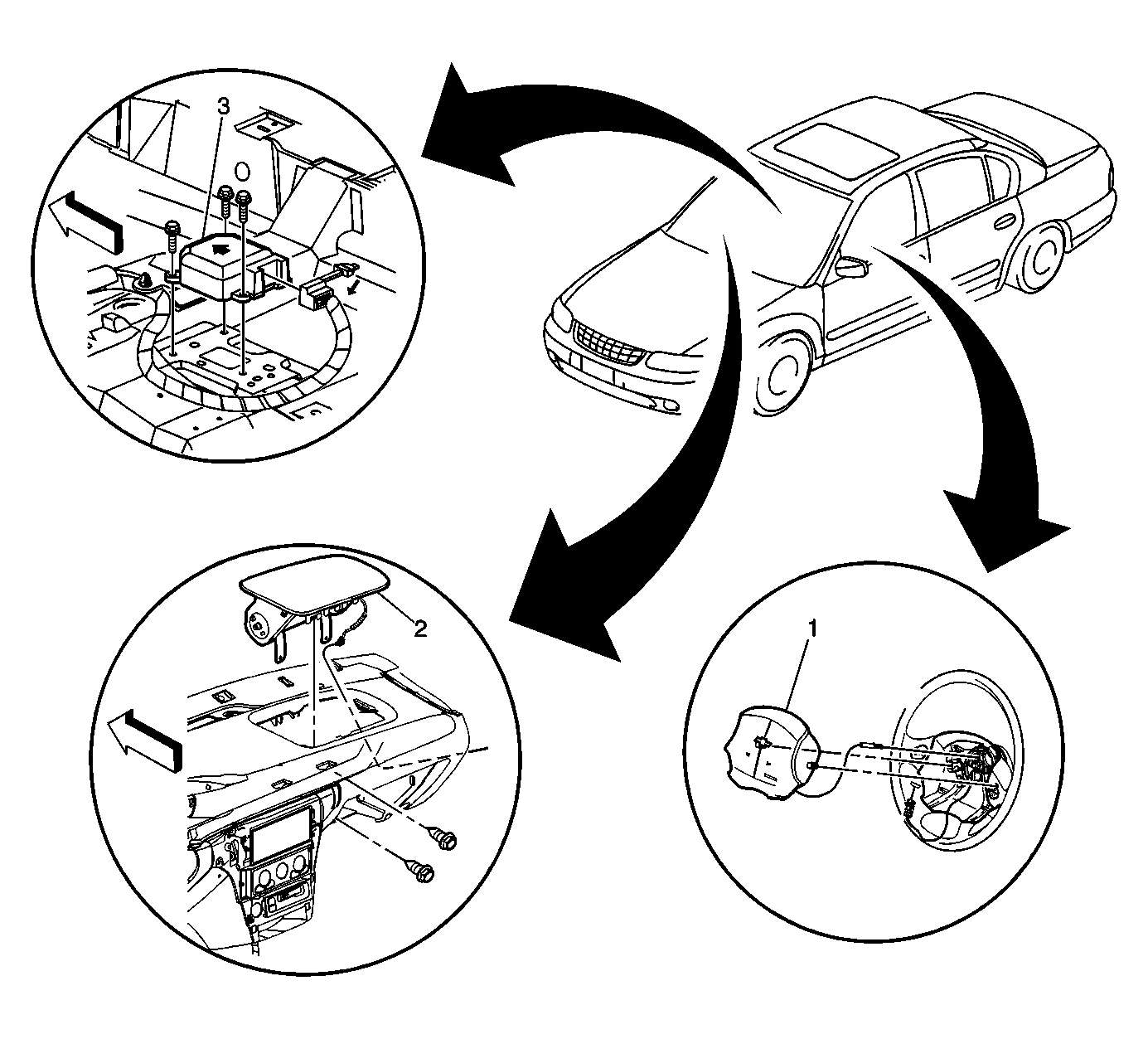

Fig 1: Inflatable Restraint Modules Component View

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Inflatable Restraint Steering Wheel Driver Inflator Module
2	Inflatable Restraint IP Module Passenger Inflator Module
3	Inflatable Restraint Sensing and Diagnostic Module (SDM)

Fig 2: Steering Wheel Assembly Component View

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Inflatable Restraint Steering Wheel Module
2	Horn Connectors
3	Cruise Control Switches
4	Inflatable Restraint Steering Wheel Module with Horn Switch

Fig 3: SIR Coil Assembly Component View

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Inflatable Restraint Steering Wheel Module Coil
2	Steering Column Assembly
