Power Window Switch: Locations

Center Of The I/P:

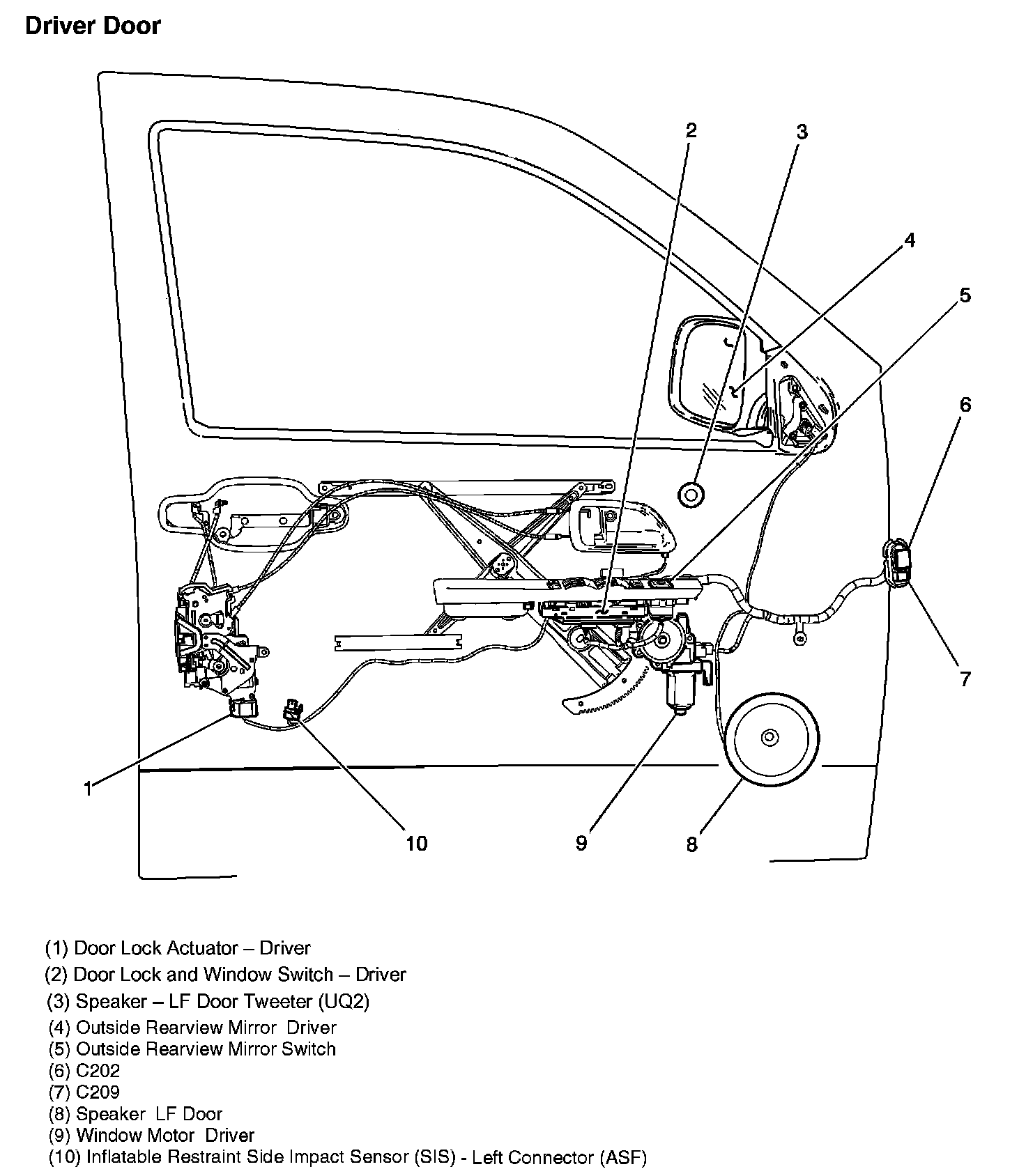

Driver Door:

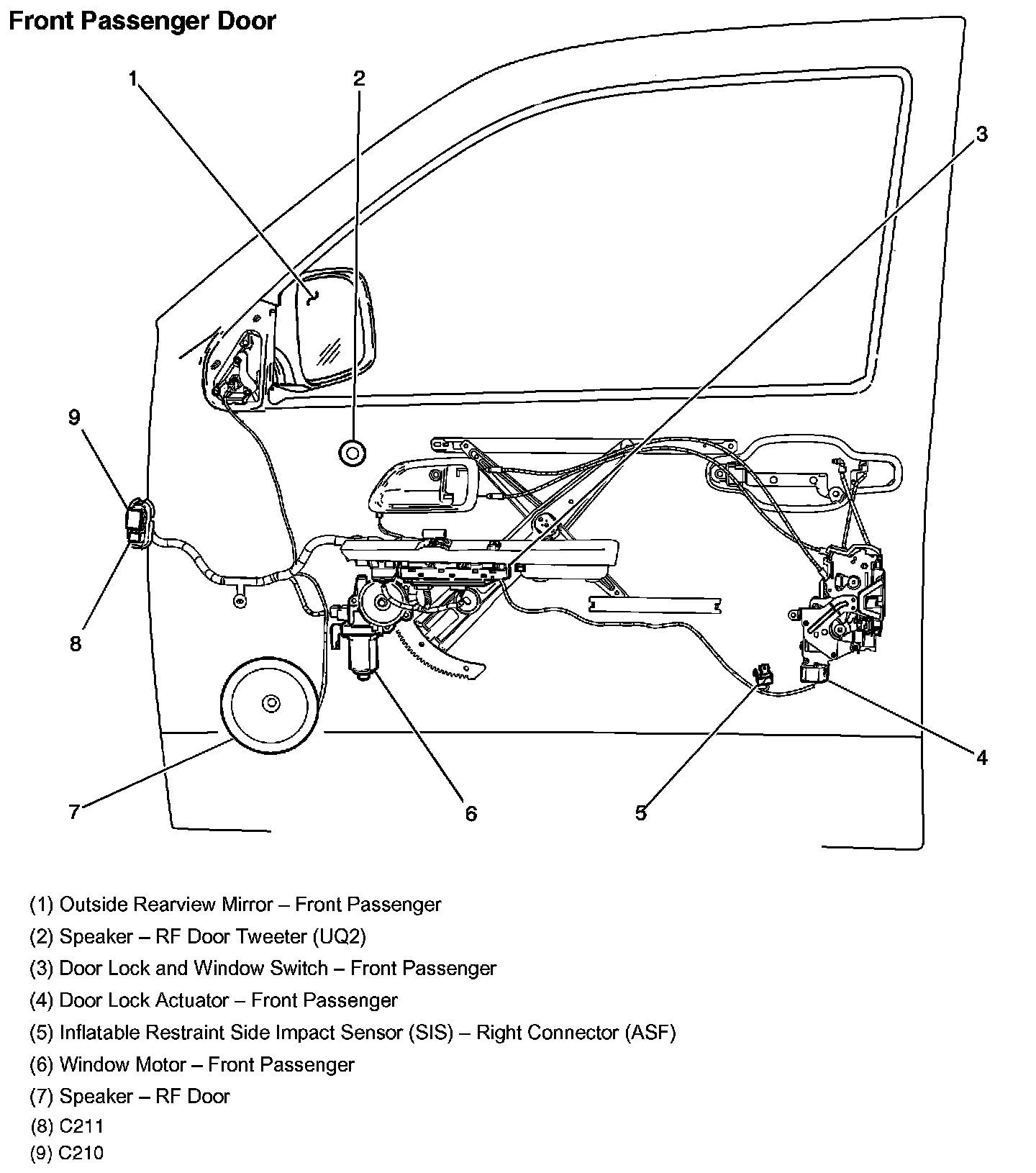

Front Passenger Door:

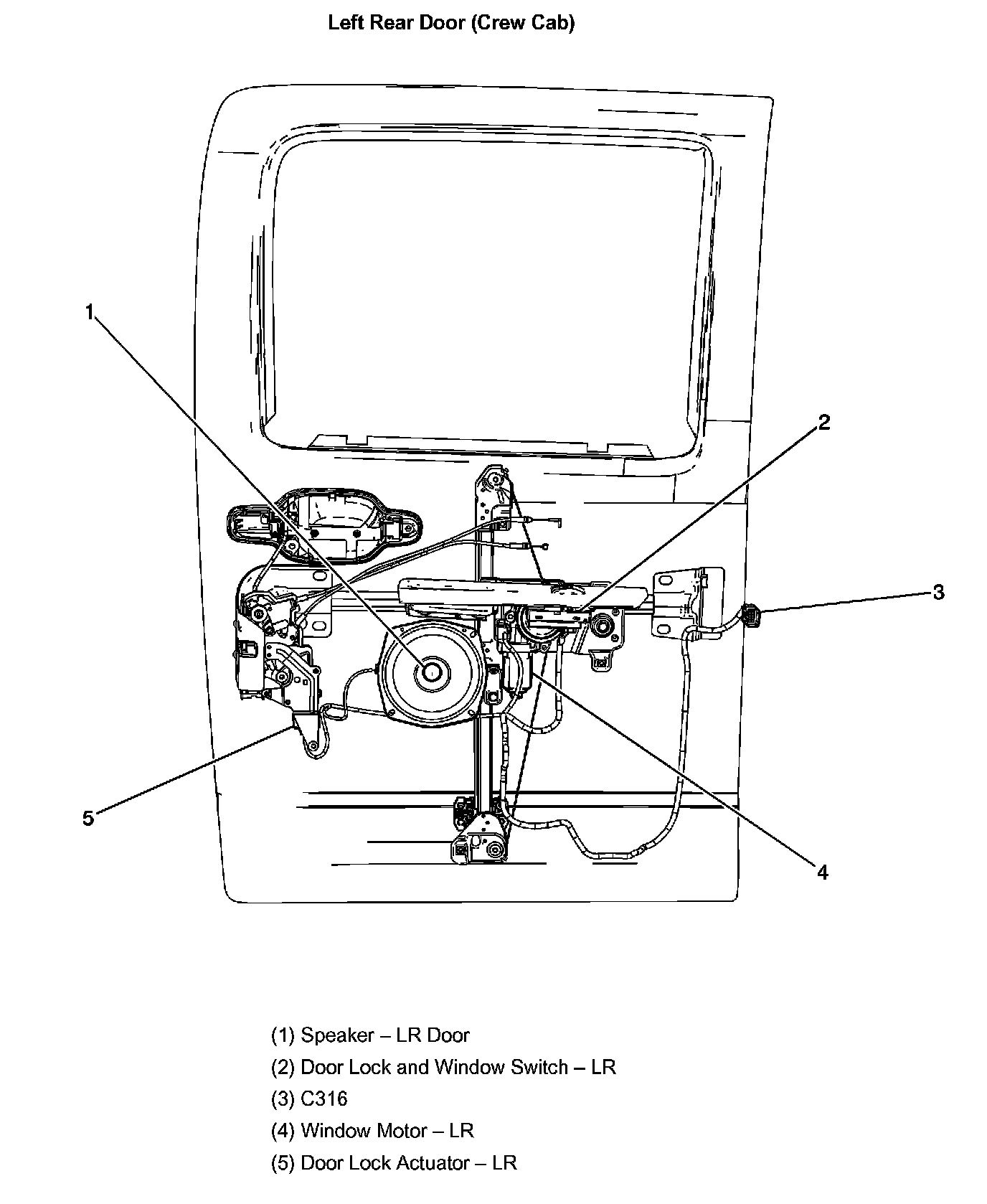

Left Rear Door (Crew Cab):

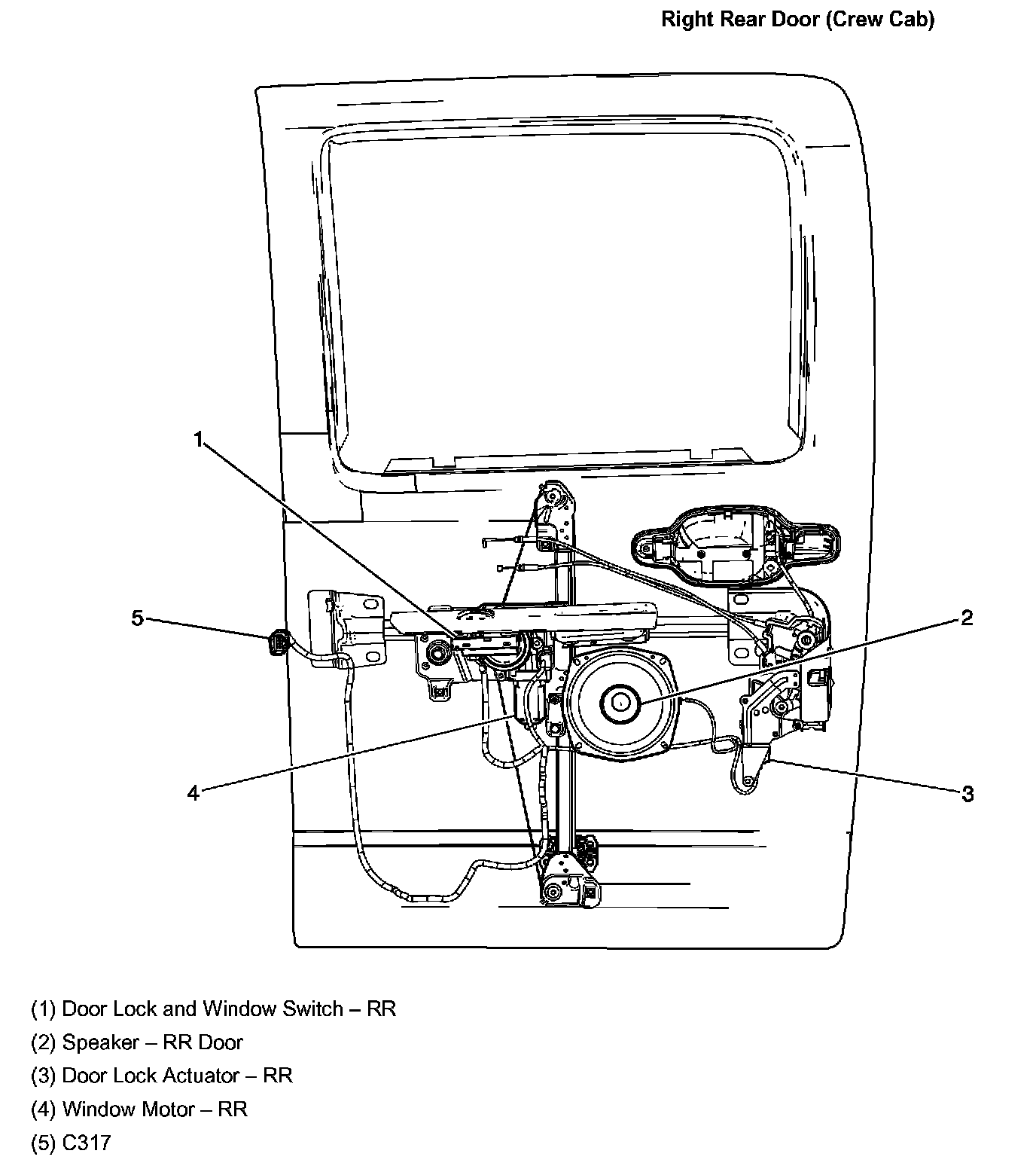

Right Rear Door (Crew Cab):

Center Of The I/P:

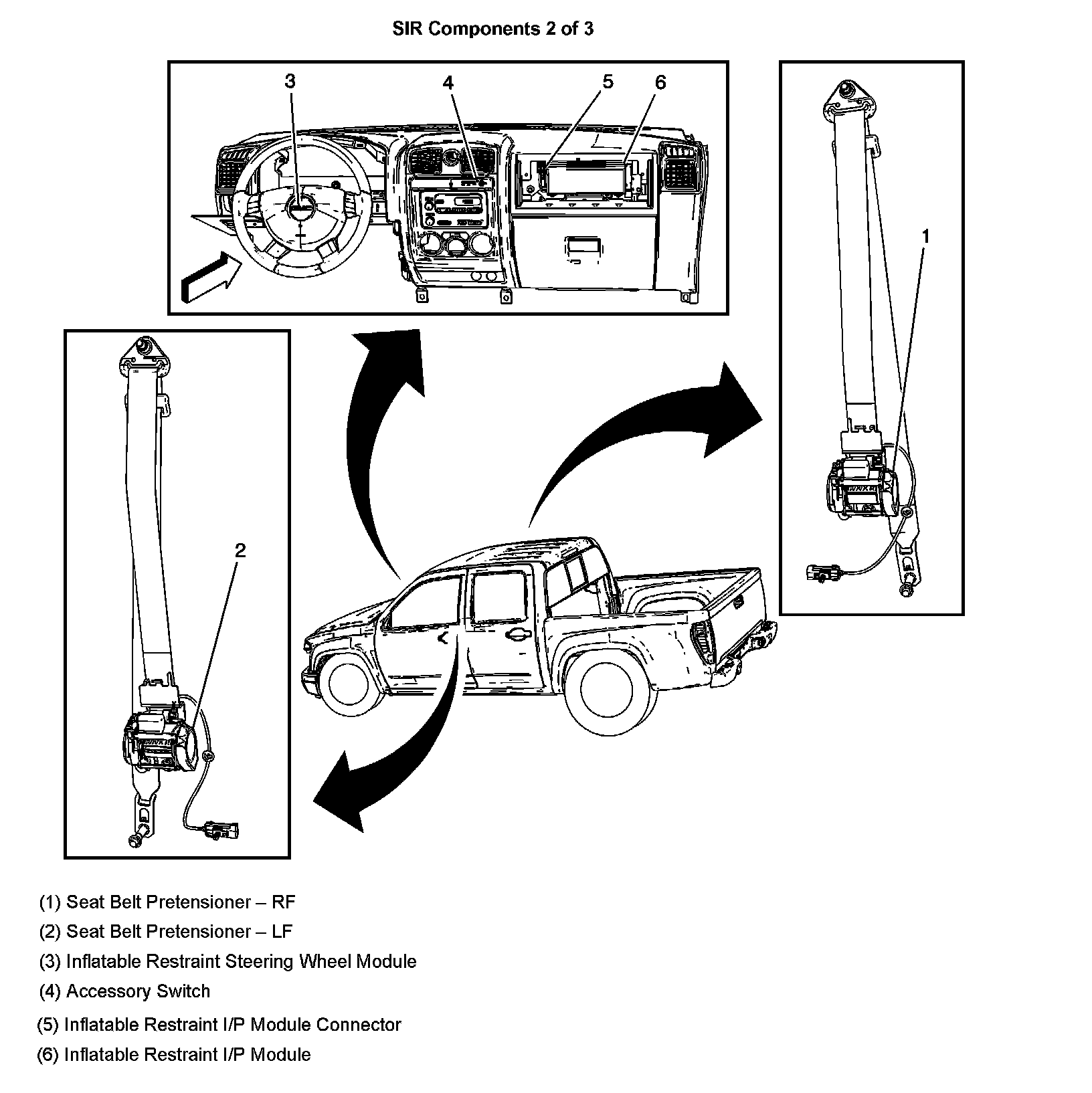

SIR Components 2 Of 3:

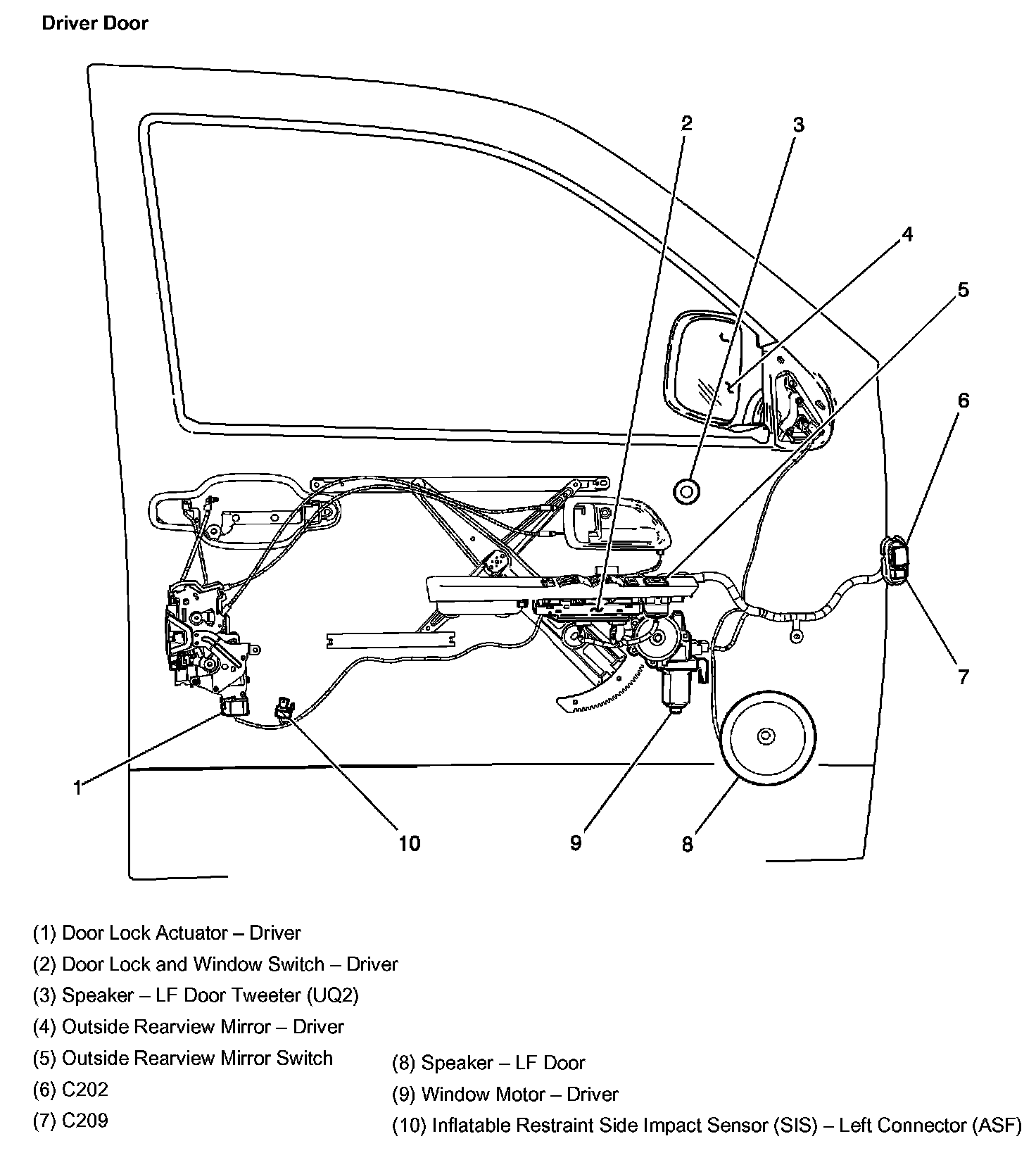

Driver Door:

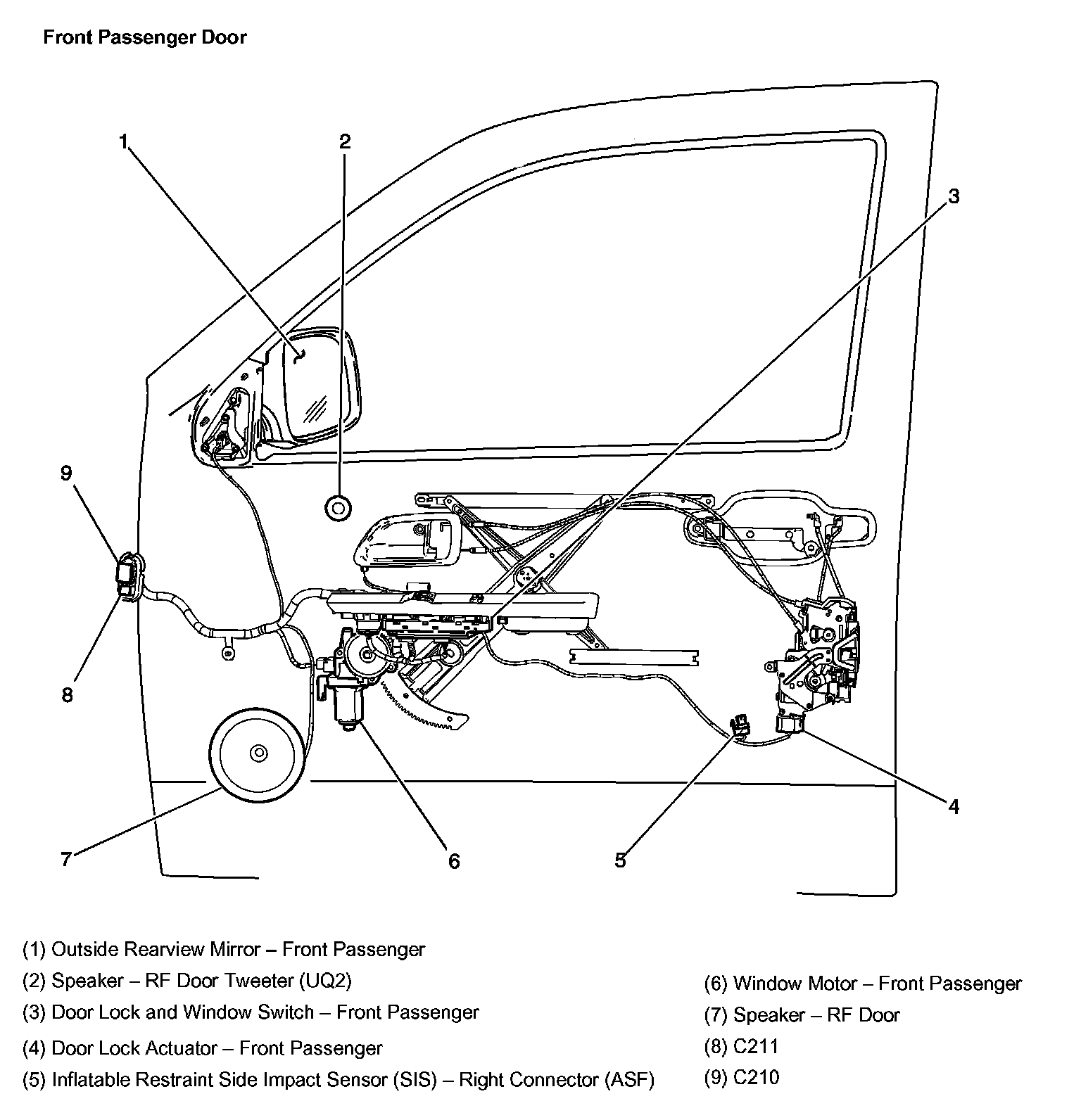

Front Passenger Door:

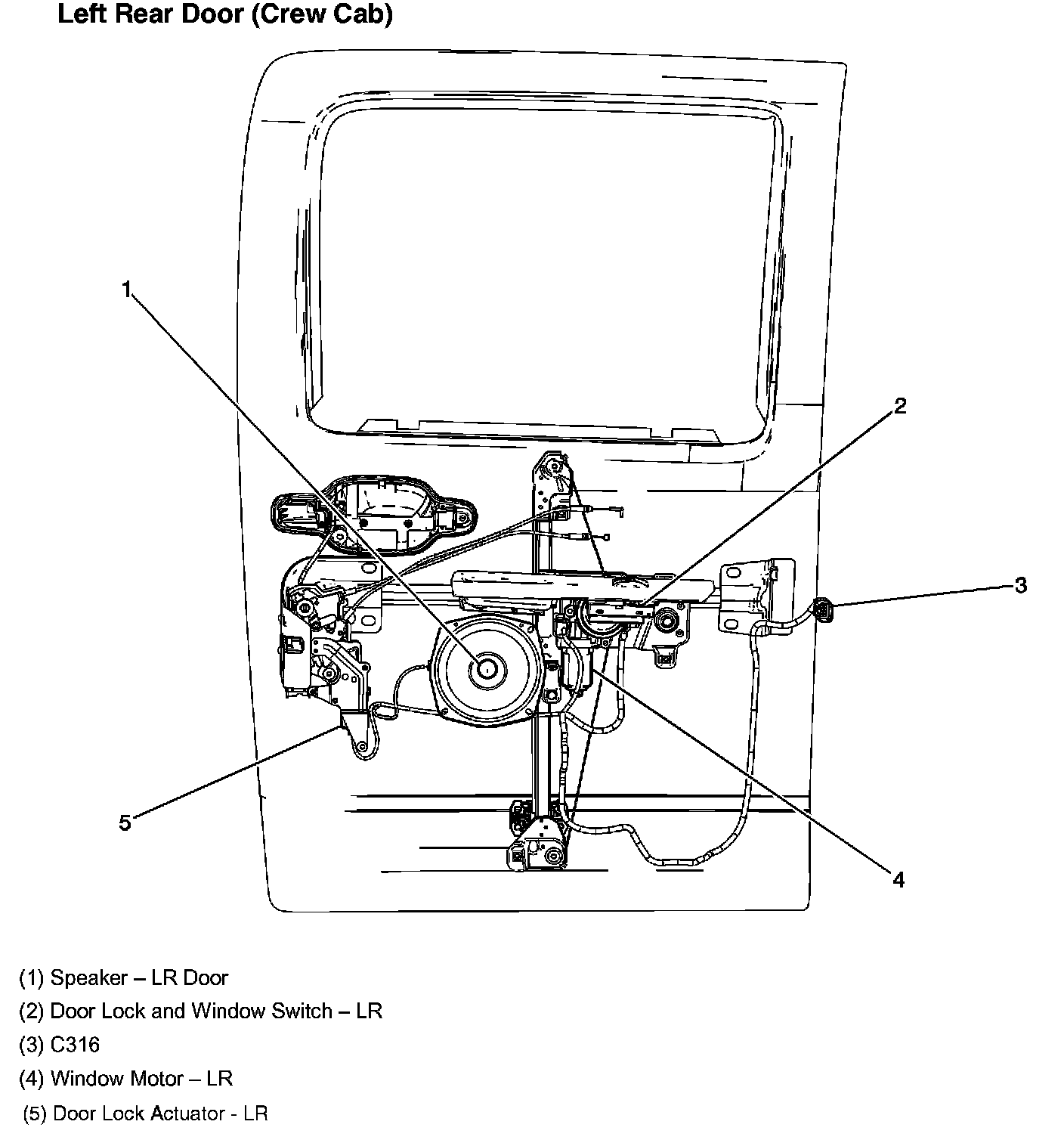

Left Rear Door (Crew Cab):

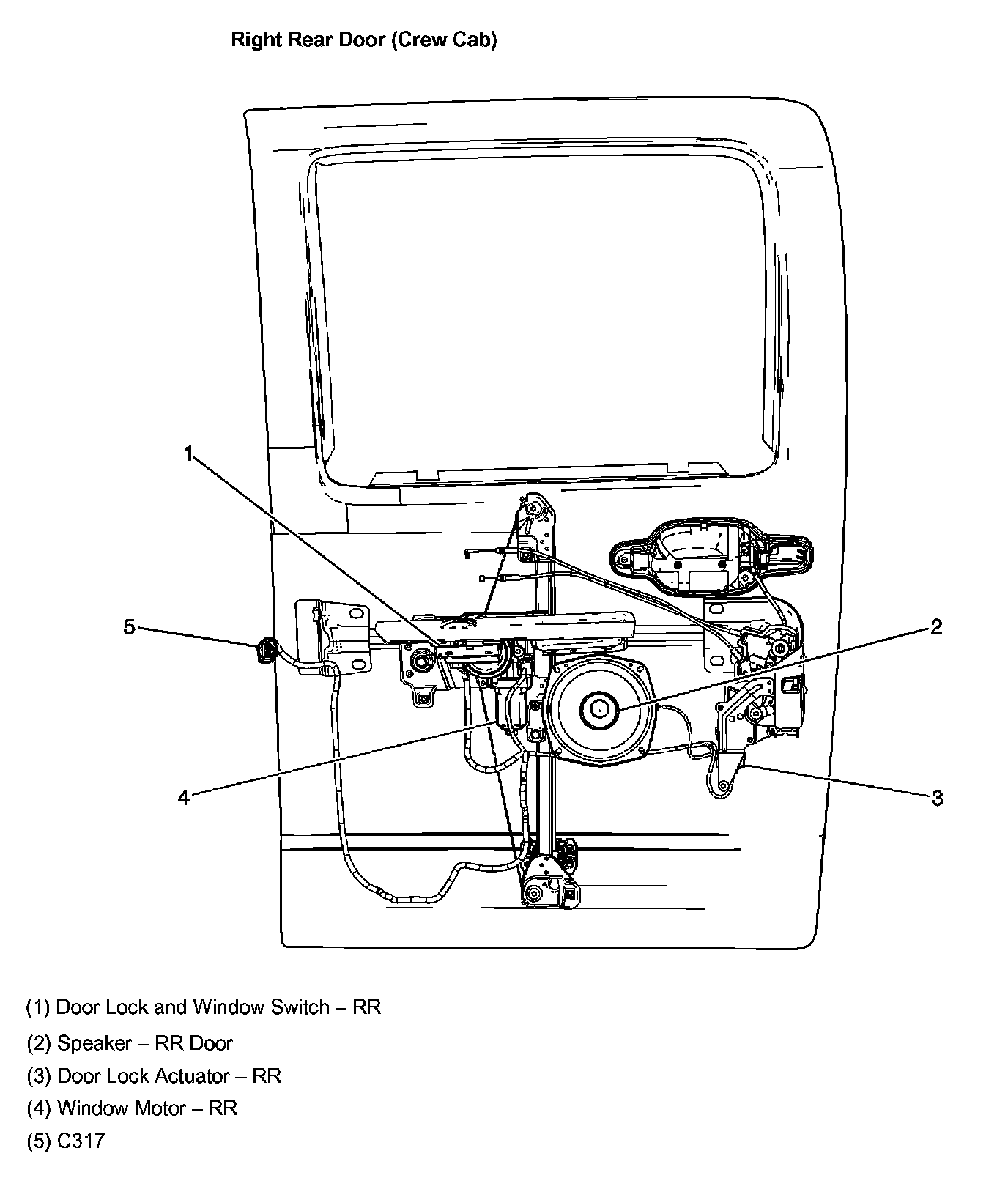

Right Rear Door (Crew Cab):
