Exhaust System

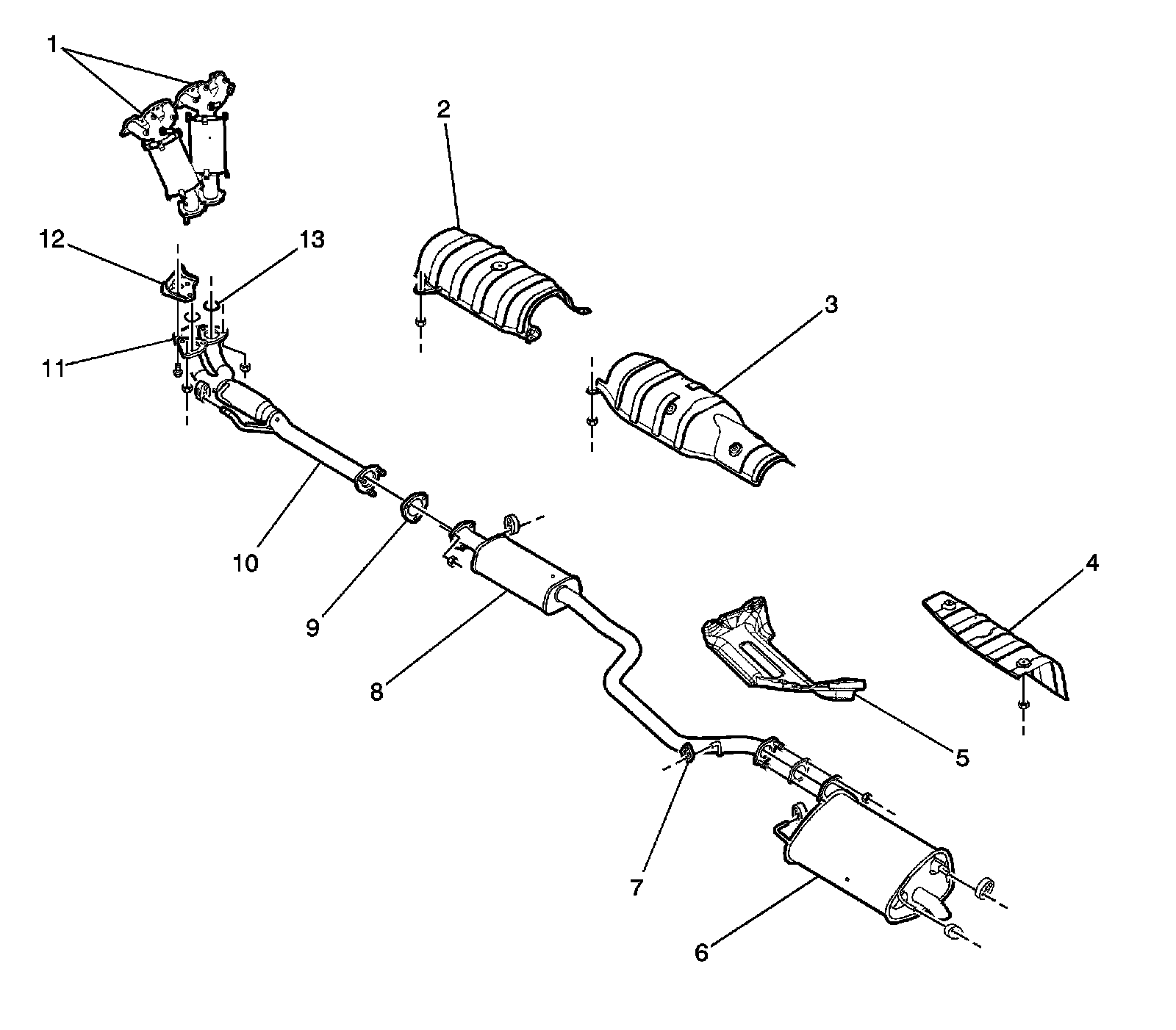

Engine Exhaust System Component Views (2.5L)




1 - Exhaust Manifold
2 - Exhaust Front Pipe Protective Shield
3 - Exhaust Front Muffler Protective Shield
4 - Exhaust Rear Muffler Protective Shield
5 - Fuel Tank Shield
6 - Exhaust Rear Muffler
7 - Rubber Hanger
8 - Exhaust Front Muffler
9 - Exhaust Front Pipe-to-Exhaust Front Muffler Gasket
10 - Exhaust Front Pipe
11 - Exhaust Lower Bracket
12 - Exhaust Upper Bracket
13 - Catalytic Converter Gasket
