Suspension

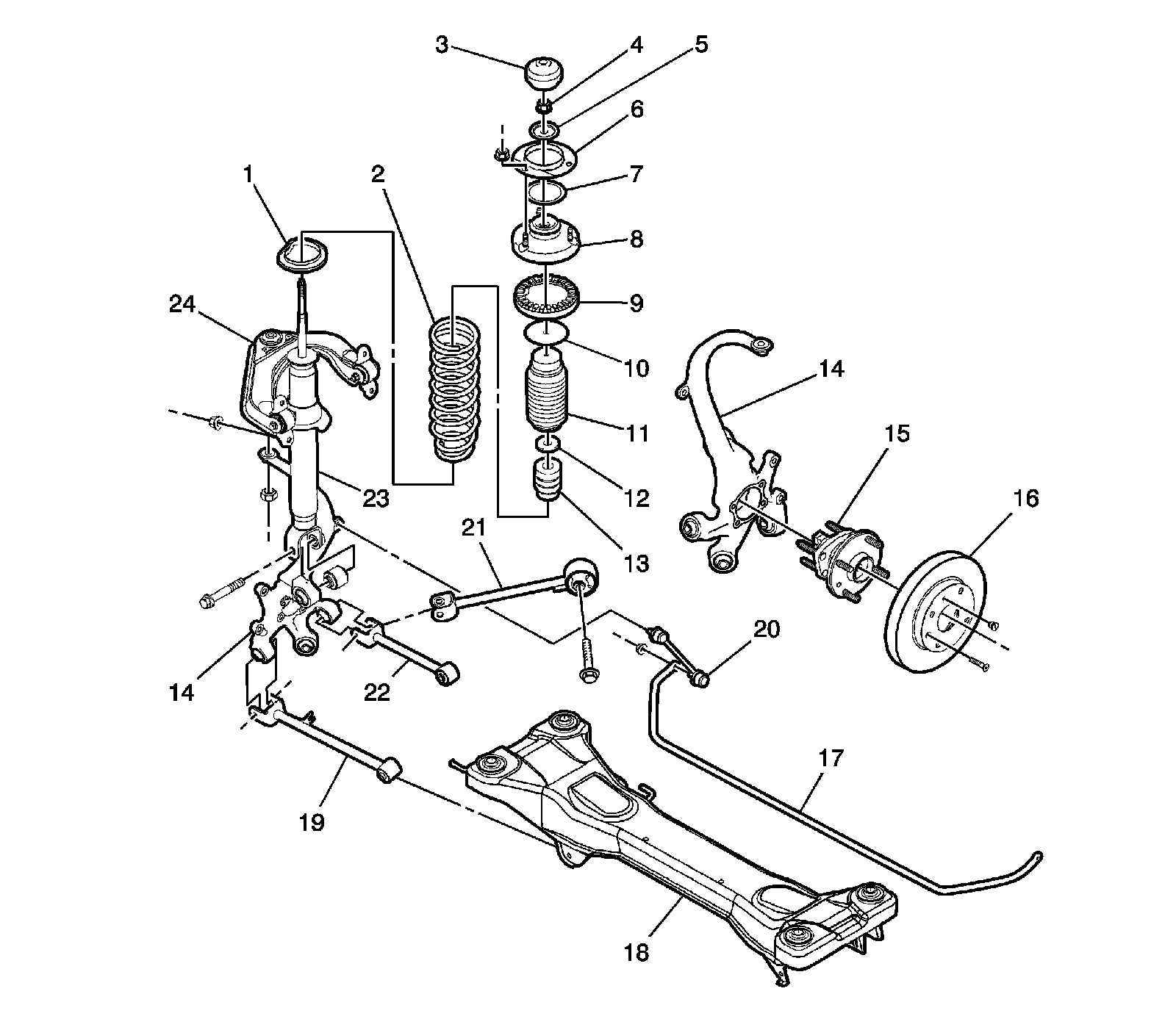

Rear Suspension Disassembled View




1 - Rear Spring Lower Insulator
2 - Rear Spring
3 - Strut Mount Cap
4 - Nut
5 - Washer
6 - Rear Strut Insulator
7 - Ring
8 - Rear Strut Mount
9 - Rear Spring Upper Insulator
10 - Washer
11 - Rear Dust Cover
12 - Stop Bumper Plate
13 - Hollow Bumper
14 - Rear Knuckle
15 - Rear Hub Unit
16 - Rear Disc Brake
17 - Stabilizer Bar
18 - Rear Axle
19 - Front Parallel Link
20 - Stabilizer Link
21 - Rear Trailing Link
22 - Rear Parallel Link
23 - Rear Strut Damper
24 - Upper Arm
