Air Temperature Sensor ( Ambient / Intake ): Service and Repair

Intake Air Temperature Sensor Replacement

Removal Procedure





Caution: Refer to Battery Disconnect Caution Battery Disconnect Caution.

1. Disconnect the negative battery cable.

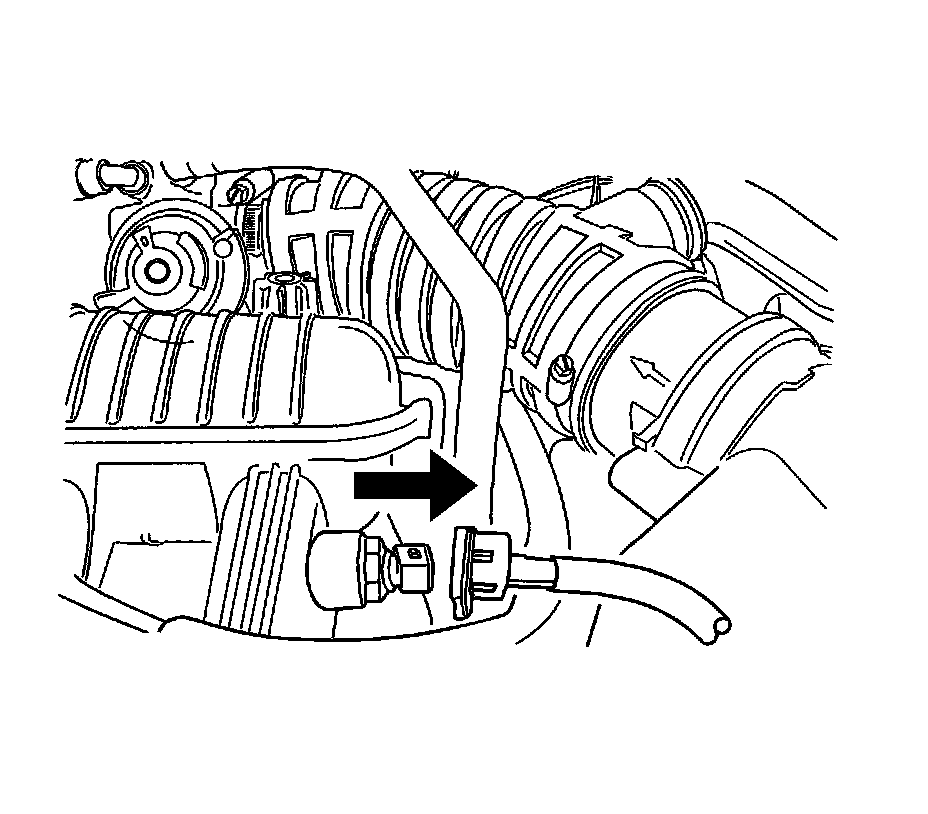

2. Disconnect the intake air temperature (IAT) sensor connector.
3. Remove the IAT sensor.

Installation Procedure





Notice: Refer to Fastener Notice Fastener Notice.

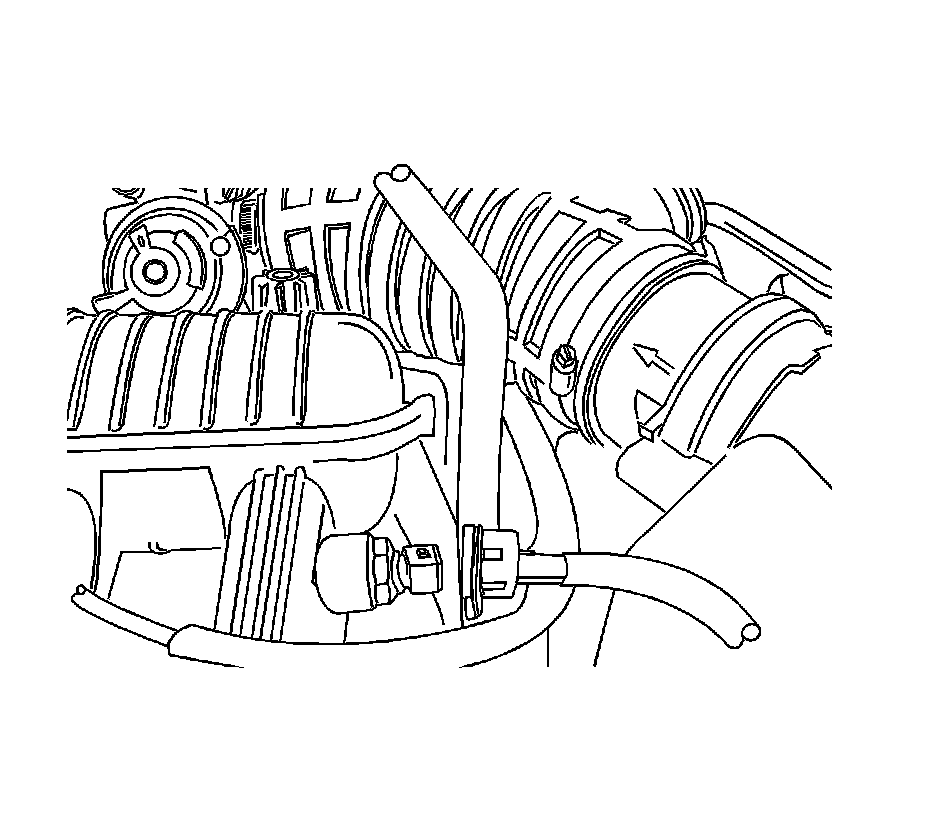

1. Install the IAT sensor.

Tighten the IAT sensor to 25 Nm (18 lb ft).

2. Connect the IAT connector.
3. Connect the negative battery cable.
