Camshaft Position Sensor: Service and Repair

Camshaft Position Sensor Replacement

Removal Procedure





Caution: Refer to Battery Disconnect Caution Battery Disconnect Caution.

1. Disconnect the negative battery cable.
2. Disconnect the camshaft position (CMP) sensor connector.

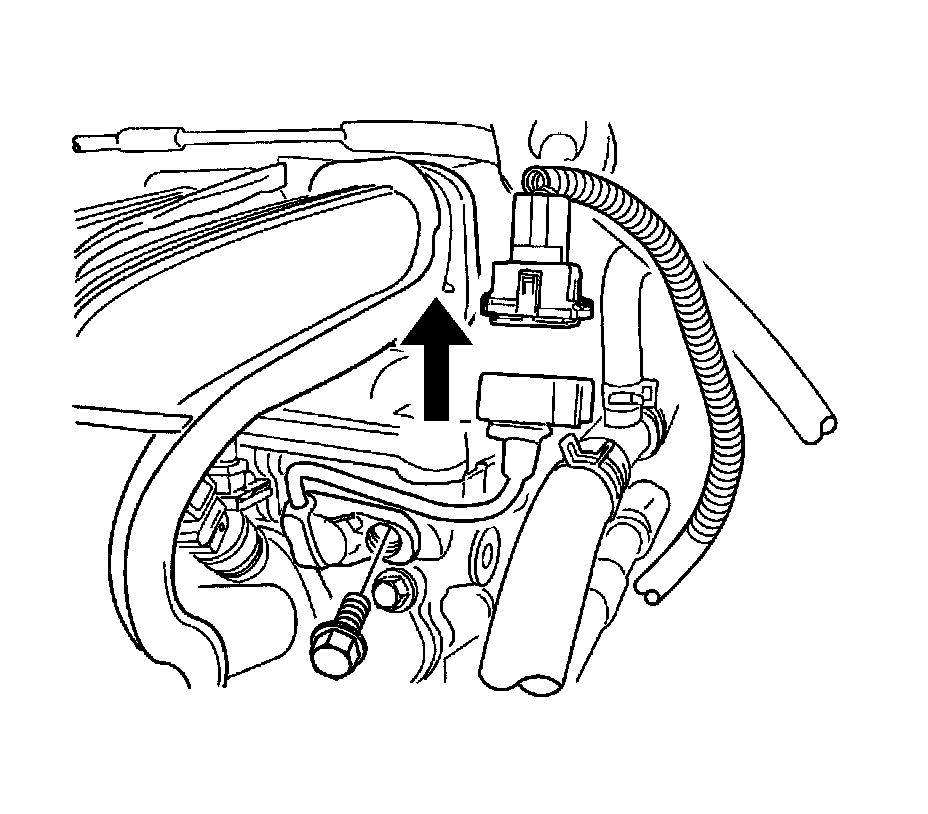

3. Remove the CMP sensor.

Installation Procedure





Notice: Refer to Fastener Notice Fastener Notice.

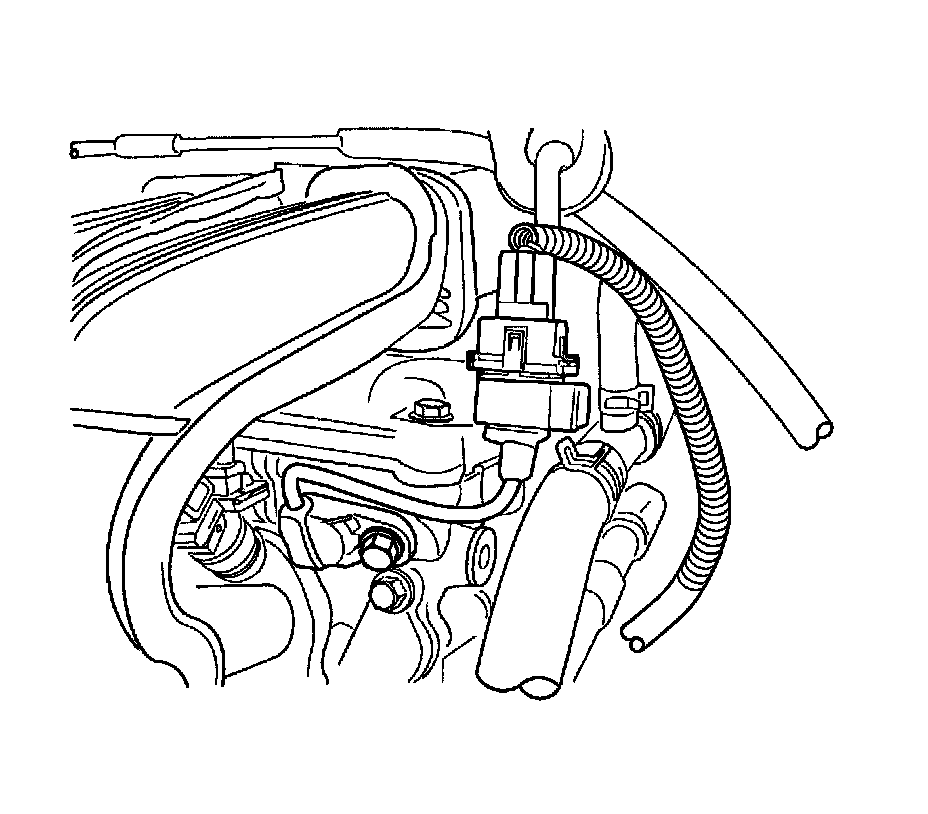

1. Install the CMP sensor.

Tighten the CMP sensor retaining bolt 12 Nm (106 lb in).

2. Connect the CMP sensor connector.
3. Connect the negative battery cable.
