Door Window Channel Replacement

Door Window Channel Replacement

Removal Procedure




1. Lower the window completely.

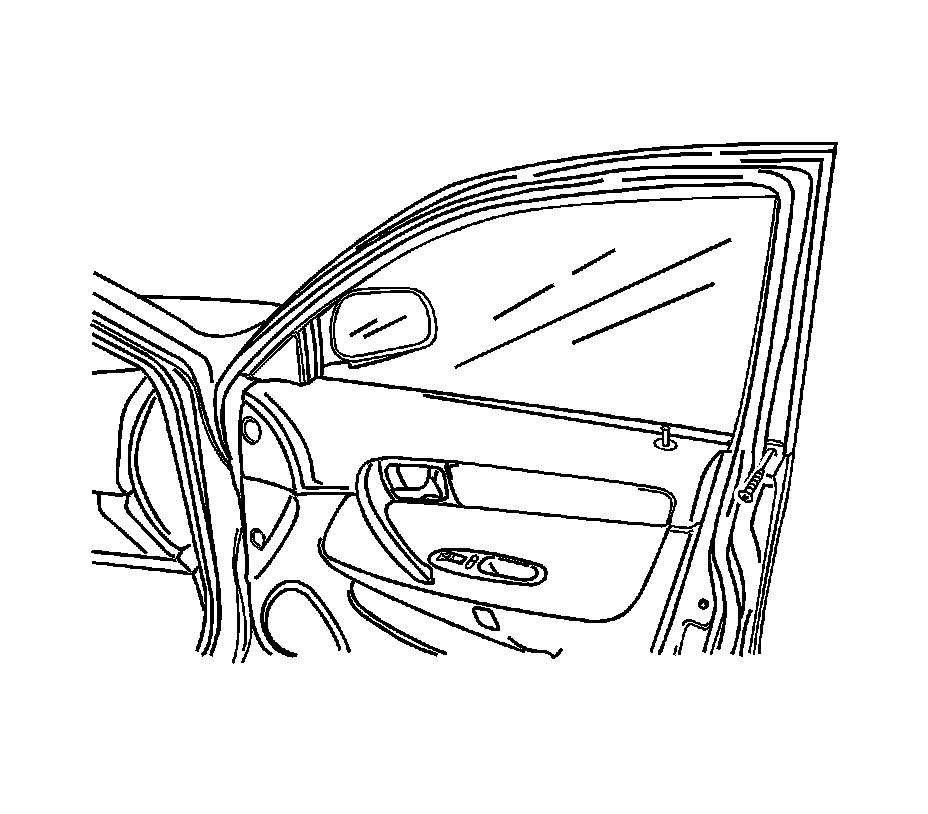

2. Remove the outside channel molding screw.
3. Remove the outside rearview mirror. Refer to Power Mirror Replacement Power Mirror Replacement.
4. Lift the outside channel molding off the door.

Installation Procedure




1. Press the outside channel molding onto the door.

Notice: Refer to Fastener Notice Fastener Notice in Cautions and Notices.

2. Install the outside channel molding screw.

Tighten the outside channel molding screw to 1.3 Nm (12 lb in).

3. Install the outside rearview mirror. Refer to Power Mirror Replacement Power Mirror Replacement.
4. Raise the window.
