Power Seat Systems Connector End Views

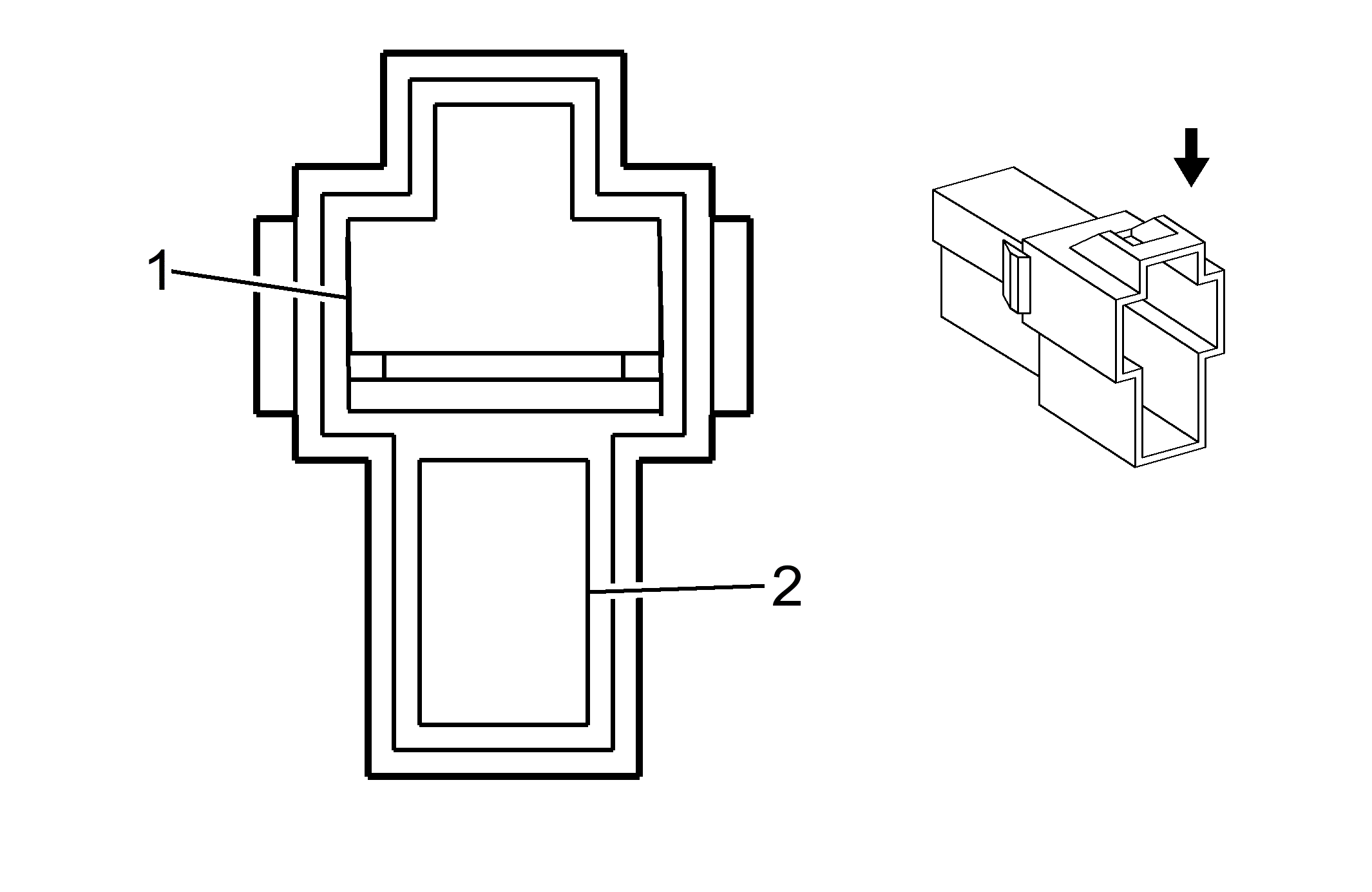

Heated Seat Cushion Element - Left (w/ Heated Seats)

Courtesy of GENERAL MOTORS CORP.
Connector Part Information		KET MG 620042 2-Way M 250 Series
Pin	Wire Color	Circuit Number	Function
1	PK/BK	2501	Heated Seat Supply Voltage
2	BK	-	Ground

Heated Seat Cushion Element - Right (w/ Heated Seats)

Courtesy of GENERAL MOTORS CORP.
Connector Part Information		KET MG 620042 2-Way M 250 Series
Pin	Wire Color	Circuit Number	Function
1	D-B/BK	2505	Heated Seat Supply Voltage
2	BK	750	Ground

Heated Seat Switch - Left (w/ Heated Seats)

Courtesy of GENERAL MOTORS CORP.
Connector Part Information		KET MG 651044-2 6-Way F (BU)
Pin	Wire Color	Circuit Number	Function
1	-	-	Not Used
2	PK/BK	2501	Heated Seat Supply Voltage - Left
3	BN/WH	309	Right Park Lamp Supply Voltage
4	D-GN	44	Instrument Panel Lamps Dimmer Switch Signal
5	YE/BK	343	Accessory Voltage
6	BK	1250	Ground

Heated Seat Switch - Right (w/ Heated Seats)

Courtesy of GENERAL MOTORS CORP.
Connector Part Information		KET MG 651044 6-Way F 090 II Series (WH)
Pin	Wire Color	Circuit Number	Function
1	-	-	Not Used
2	D-BU/BK	2505	Heated Seat Supply Voltage - Right
3	BN/WH	309	Right Park Lamp Supply Voltage
4	D-GN	44	Instrument Panel Lamps Dimmer Switch Signal
5	YE/BK	343	Accessory Voltage
6	BK	1250	Ground

Power Seat Connector (w/ Power Seats)

Courtesy of GENERAL MOTORS CORP.
Connector Part Information		KET MG 610267 4-Way F 250 D/L Series (WH)
Pin	Wire Color	Circuit Number	Function
1	BK	450	Ground
1	BK	450	Ground
2	BK	450	Ground
3	OG/BK	740	Battery Positive Voltage
3	OG/BK	740	Battery Positive Voltage
4	BN/WH	238	Seat Belt Switch - Left

Power Seat Test Connector

Courtesy of GENERAL MOTORS CORP.
Connector Part Information		KET MG 610043 2-Way F 250 Series (WH)
Pin	Wire Color	Circuit Number	Function
1	OG/BK	740	Battery Positive Voltage
2	BK	450	Ground
