Defogger Schematics

Fig 1: Defogger Schematic
GM1257187Courtesy of GENERAL MOTORS CORP.

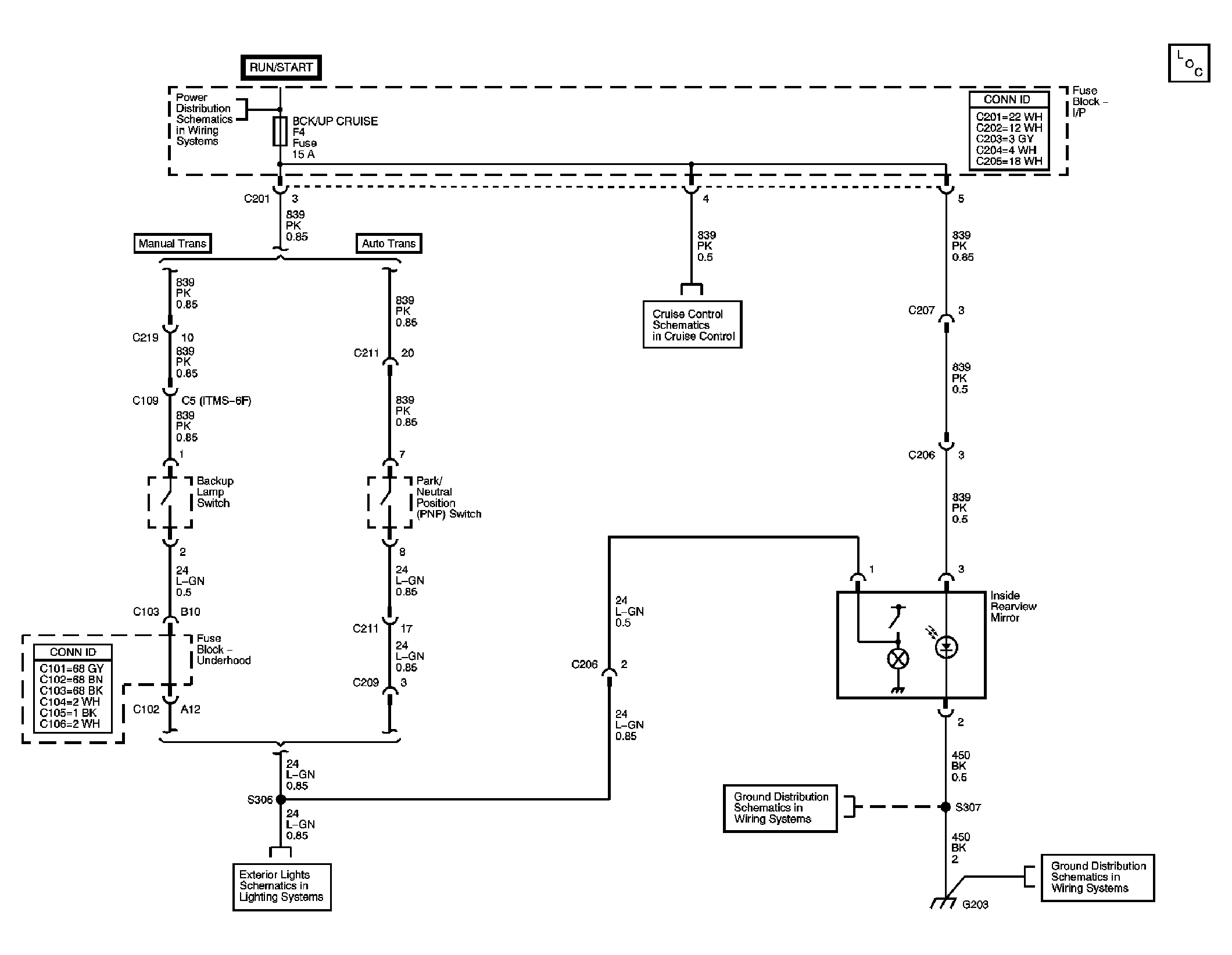

Fig 2: Inside Rearview Mirror Schematic
GM1376490Courtesy of GENERAL MOTORS CORP.
