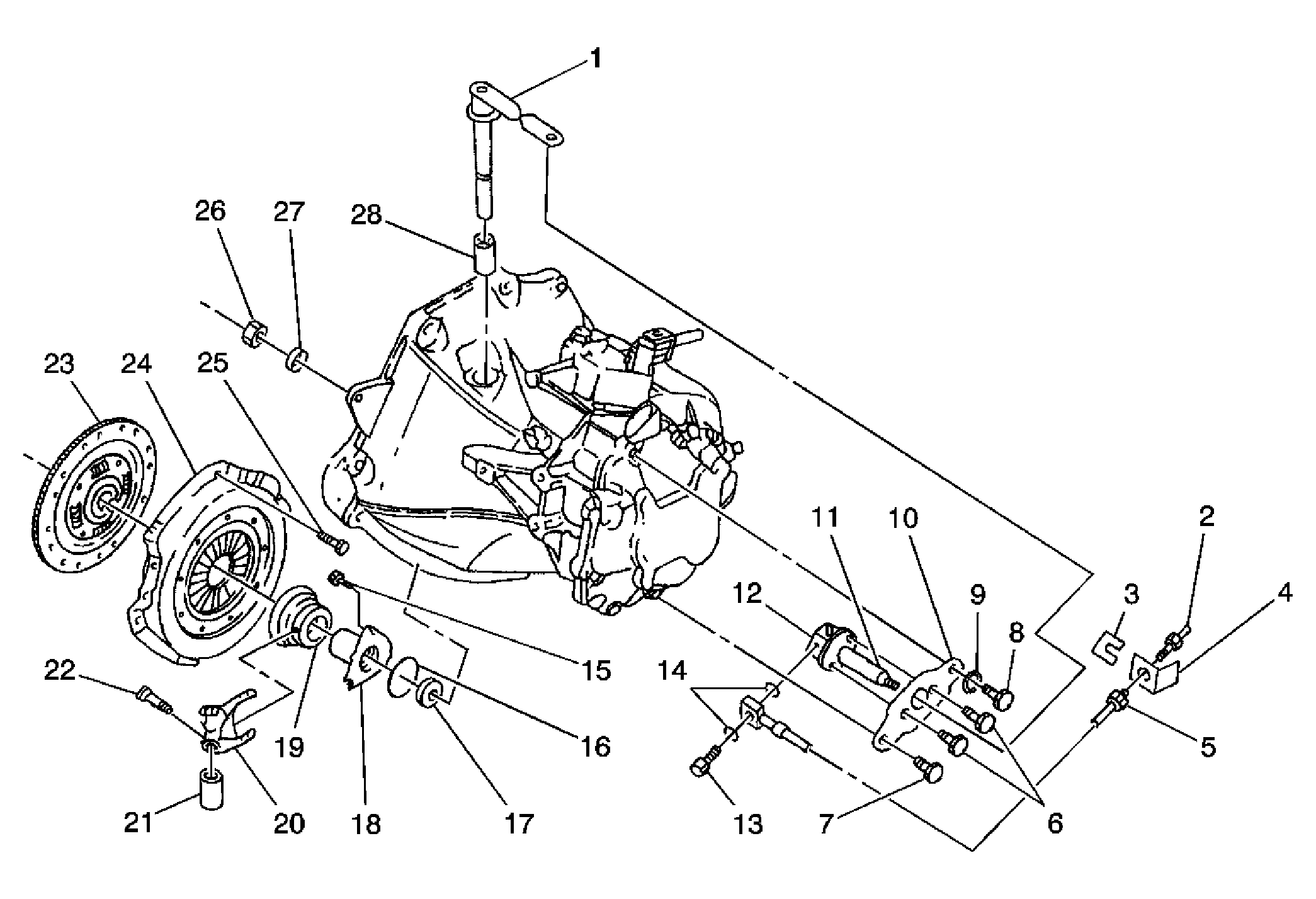

Clutch Component Locator View
Courtesy of GENERAL MOTORS CORP.
| Callout |
Component Name |
| 1 |
Release Lever |
| 2 |
Pipe |
| 3 |
Clip |
| 4 |
Clamp |
| 5 |
Hose |
| 6 |
Bolt |
| 7 |
Bolt |
| 8 |
Bolt |
| 9 |
Spring Washer |
| 10 |
Release Cylinder Bracket |
| 11 |
Release Cylinder |
| 12 |
Air Bleeder |
| 13 |
Bolt |
| 14 |
Copper Washer |
| 15 |
Bolt |
| 16 |
O-ring |
| 17 |
Input Shaft Seal |
| 18 |
Bearing Guide Sleeve |
| 19 |
Release Bearing |
| 20 |
Fork |
| 21 |
Bushing |
| 22 |
Bolt |
| 23 |
Bolt |
| 24 |
Pressure Plate |
| 25 |
Clutch Disc |
| 26 |
Nut |
| 27 |
Spring Washer |
| 28 |
Bushing |
Courtesy of GENERAL MOTORS CORP.

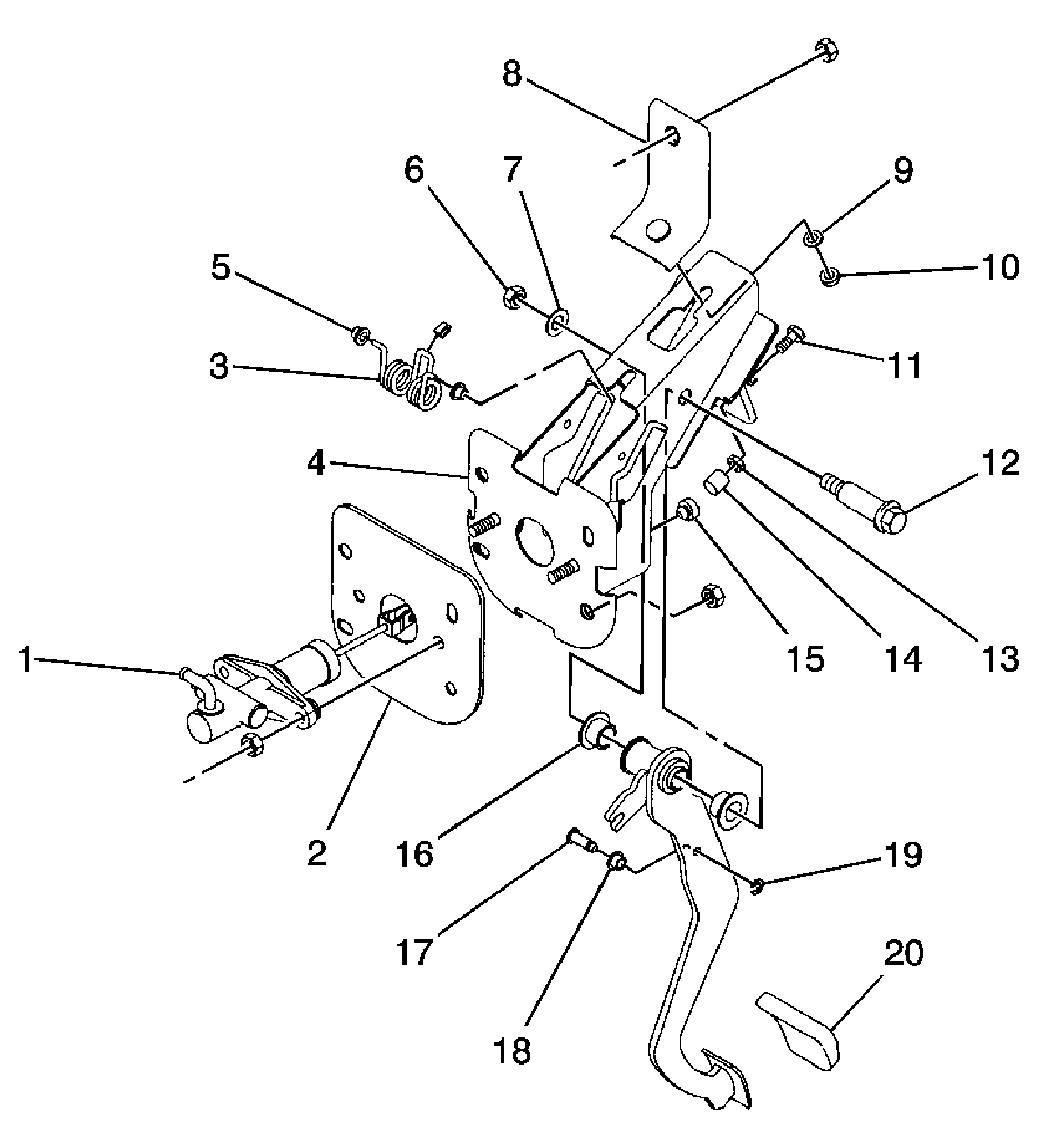

| Callout |
Component Name |
| 1 |
Clutch Master Cylinder |
| 2 |
Gasket |
| 3 |
Turn Over Spring |
| 4 |
Clutch Pedal Brace |
| 5 |
Bushing |
| 6 |
Nut |
| 7 |
Washer |
| 8 |
Clutch Pedal Bracket |
| 9 |
Washer |
| 10 |
Nut |
| 11 |
Bolt |
| 12 |
Pedal Shaft |
| 13 |
Nut |
| 14 |
Clutch Pedal Buffer |
| 15 |
Clutch Pedal Buffer |
| 16 |
Bushing |
| 17 |
Pin |
| 18 |
Bushing |
| 19 |
Clutch Pedal |
| 20 |
Pedal Cover |
Courtesy of GENERAL MOTORS CORP.

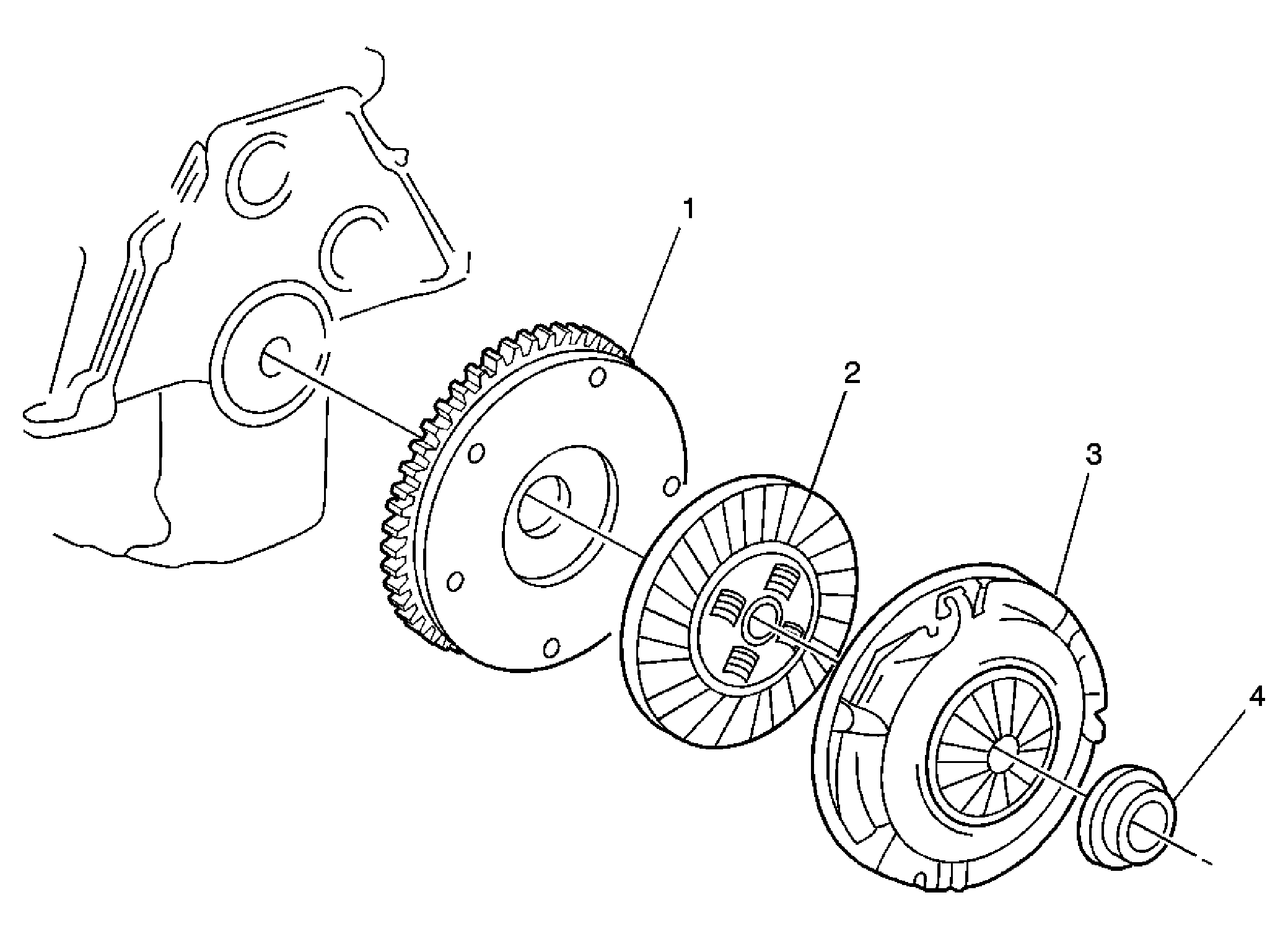

| Callout |
Component Name |
| 1 |
Flywheel |
| 2 |
Clutch Disc |
| 3 |
Pressure Plate |
| 4 |
Release Bearing |
