Inflatable Restraint Steering Wheel Module Replacement

WARNING: This page is about a different car, the 2008 Chevrolet Malibu. However, it is still accessible from the selected car via links, so may be relevant.

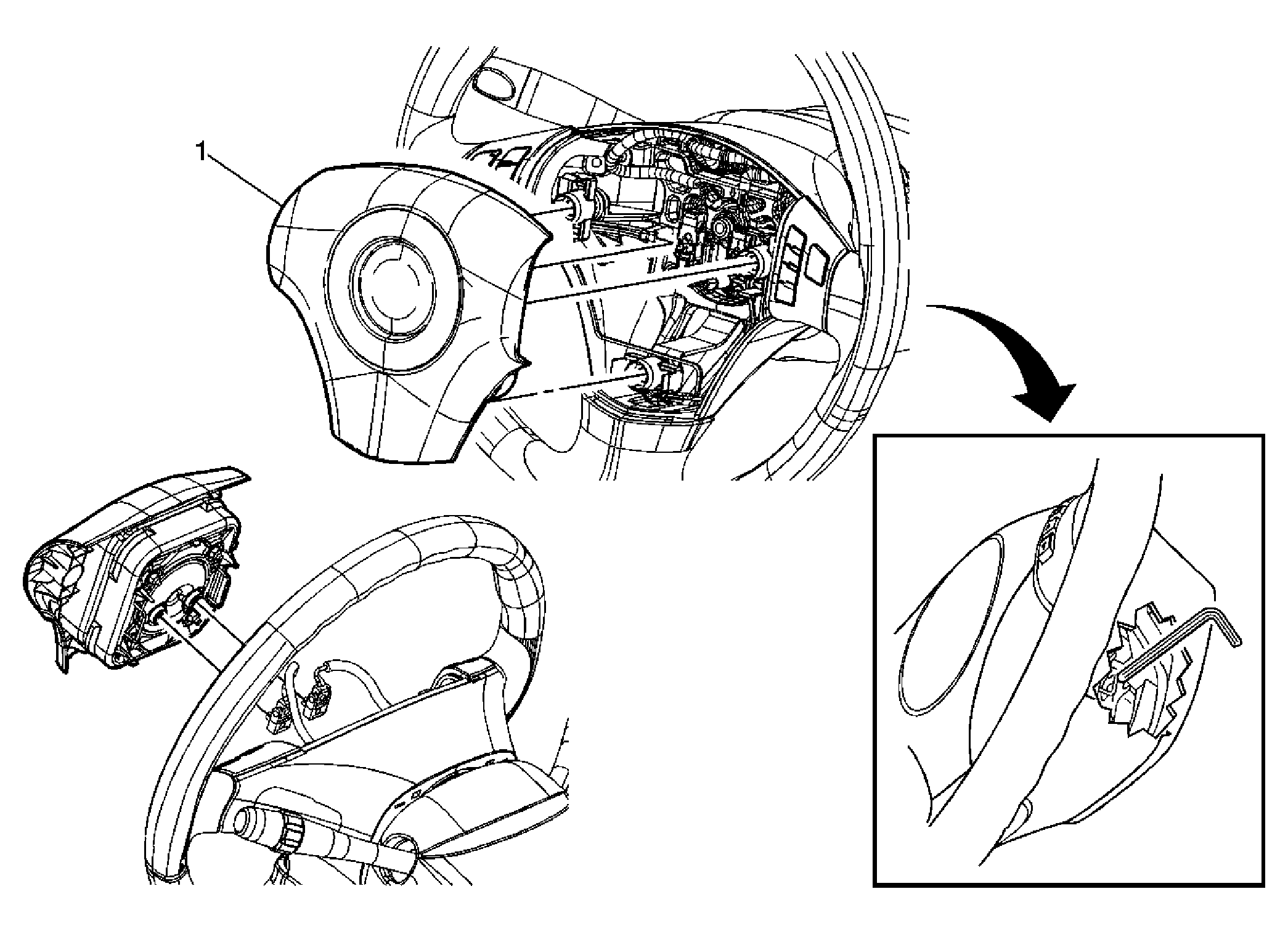

Fig 1: View Of Inflatable Restraint Steering Wheel Module

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
CAUTION: Refer to SIR Inflator Module Handling and Storage Caution . CAUTION: Refer to SIR Caution . Preliminary Procedures Disable the supplemental inflatable restraint (SIR) system. Refer to SIR Disabling and Enabling . Insert a small blunt ended punch, or equivalent tool, through the access opening on either side of steering wheel. Insert it approximately 48mm to contact spring. Once contact has been made with the spring, push the spring fastener inward approximately 5mm to clear the steering wheel inflator retainer spring from the steering wheel. Keep inboard pressure on the spring until you pull the module loose. On the side that the spring is released on pull rearward sharply with moderate pressure to release the module completely from the steering wheel.
1	Steering Wheel Inflatable Restraint Module Procedure: Fully deploy the module before disposal. If the module was replaced under warranty, fully deploy and dispose of the module after the required retention period. Refer to Inflator Module Handling and Scrapping

Callout

Component Name

CAUTION: Refer to SIR Inflator Module Handling and Storage Caution .

CAUTION: Refer to SIR Caution .

Preliminary Procedures

Disable the supplemental inflatable restraint (SIR) system. Refer to SIR Disabling and Enabling .
Insert a small blunt ended punch, or equivalent tool, through the access opening on either side of steering wheel. Insert it approximately 48mm to contact spring.
Once contact has been made with the spring, push the spring fastener inward approximately 5mm to clear the steering wheel inflator retainer spring from the steering wheel. Keep inboard pressure on the spring until you pull the module loose.
On the side that the spring is released on pull rearward sharply with moderate pressure to release the module completely from the steering wheel.

Steering Wheel Inflatable Restraint Module
Procedure:
Fully deploy the module before disposal. If the module was replaced under warranty, fully deploy and dispose of the module after the required retention period. Refer to Inflator Module Handling and Scrapping
