Power Seat Component Views
WARNING: This page is about a different car, the 2007 Buick Lucerne. However, it is still accessible from the selected car via links, so may be relevant.

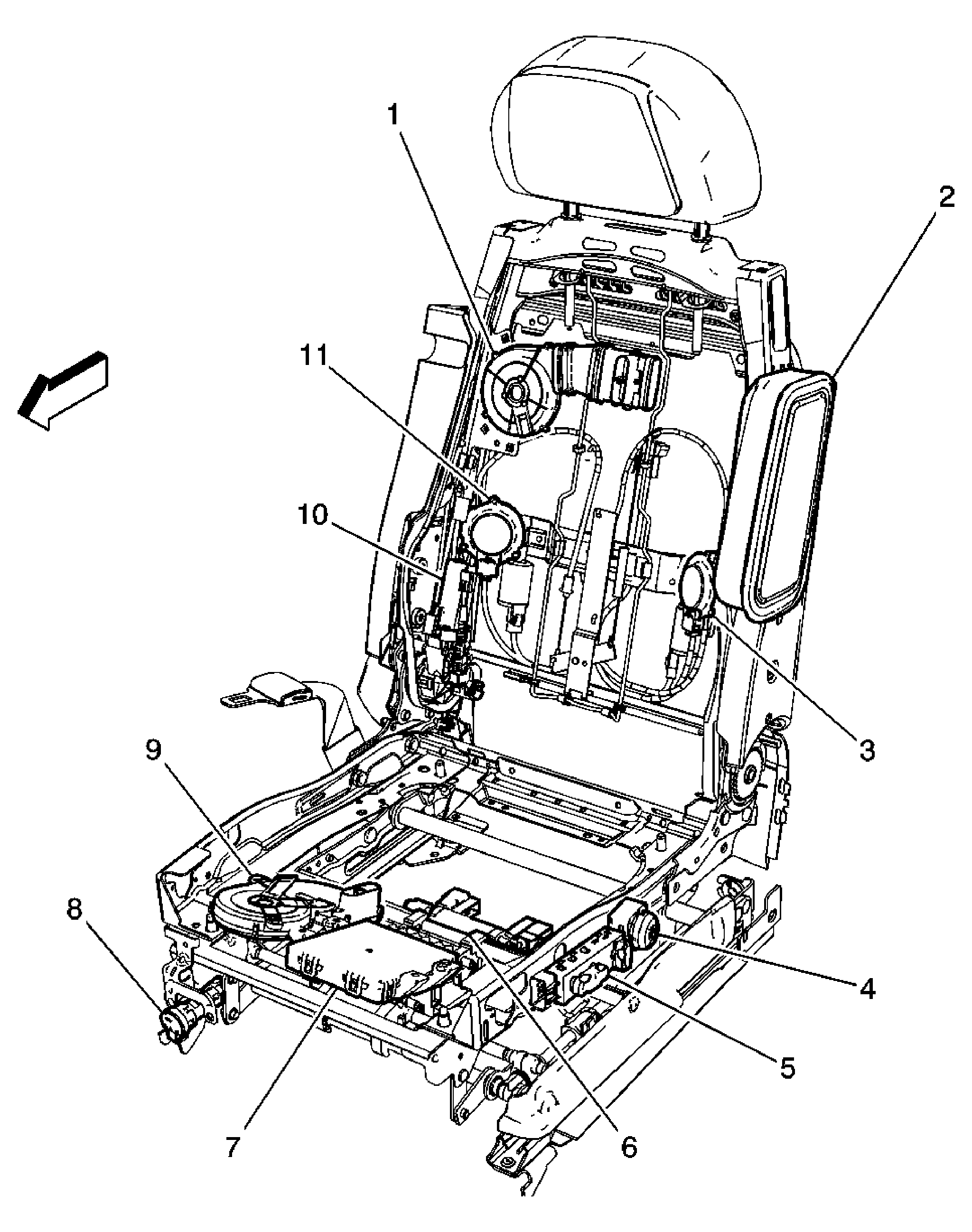

Courtesy of GENERAL MOTORS CORP.
| Callout |
Component Name |
| 1 |
Seat Back Ventilation Heat & Cool Module - Driver (KB6) |
| 2 |
Inflatable Restraint Side Impact Module - Left |
| 3 |
Seat Lumbar Massage Motor - Driver (AM3) |
| 4 |
Lumbar Adjuster Switch - Driver (AE8, A45) |
| 5 |
Seat Adjuster Switch - Driver (AE8, A45) |
| 6 |
Seat Adjuster Motor Assembly - Driver (AE8, A45) |
| 7 |
Memory Seat Module (MSM) |
| 8 |
Auxiliary Power Outlet |
| 9 |
Seat Cushion Ventilation Heat & Cool Module - Driver (KB6) |
| 10 |
Seat Recline Motor - Driver (AE8, A45) |
| 11 |
Seat Lumbar Motor - Driver (AE8) |

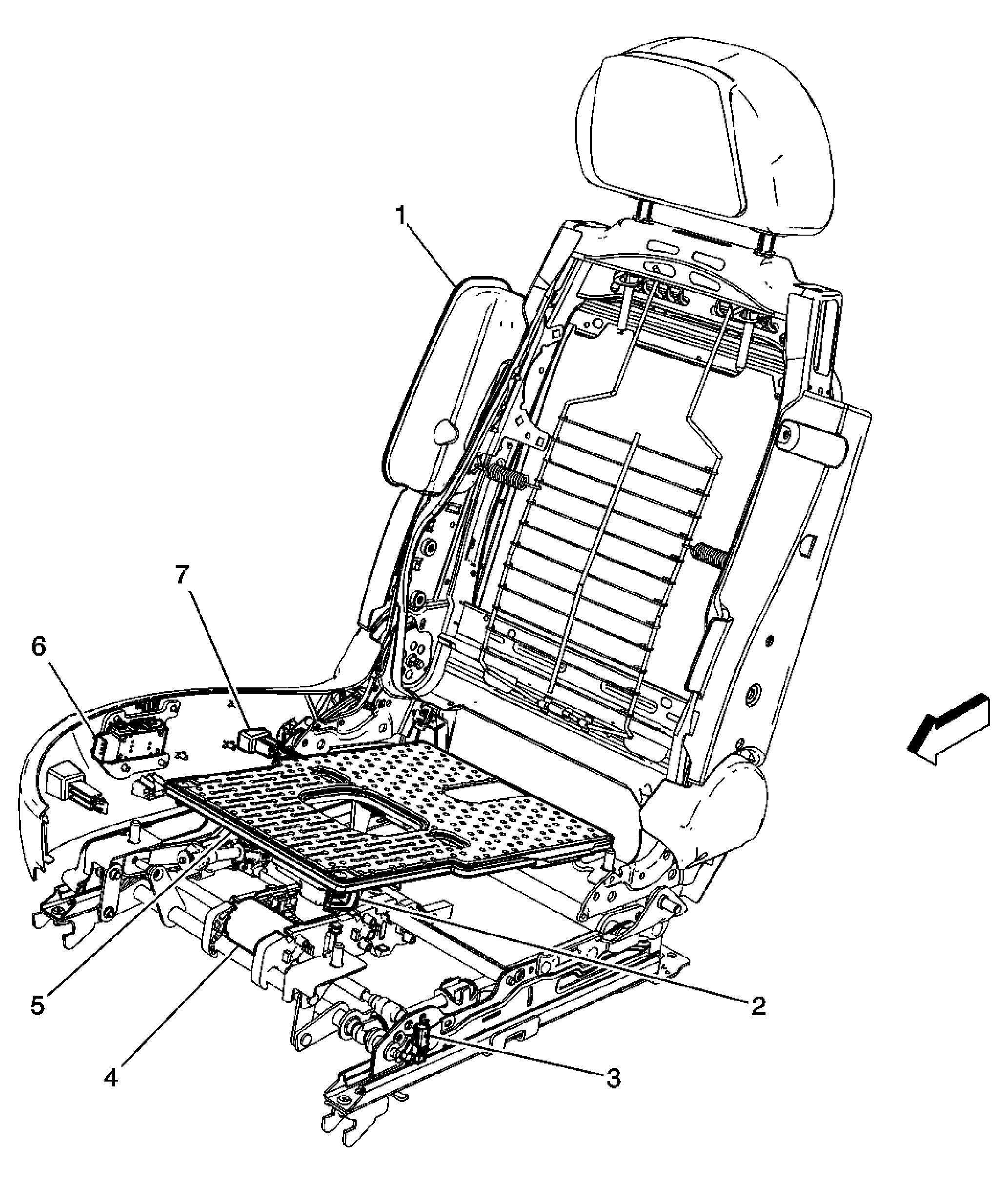

Courtesy of GENERAL MOTORS CORP.
| Callout |
Component Name |
| 1 |
Inflatable Restraint Side Impact Module - Right |
| 2 |
Inflatable Restraint Passenger Presence System (PPS) Module |
| 3 |
Inflatable Restraint Seat Position Sensor (SPS)-Right |
| 4 |
Seat Adjuster Motor Assembly - Front Passenger (AH8) |
| 5 |
Seat Adjuster Switch - Passenger (AG2, AH8) |
| 6 |
Inflatable Restraint Passenger Presence System (PPS) Sensor |
