Power Window Switch: Locations

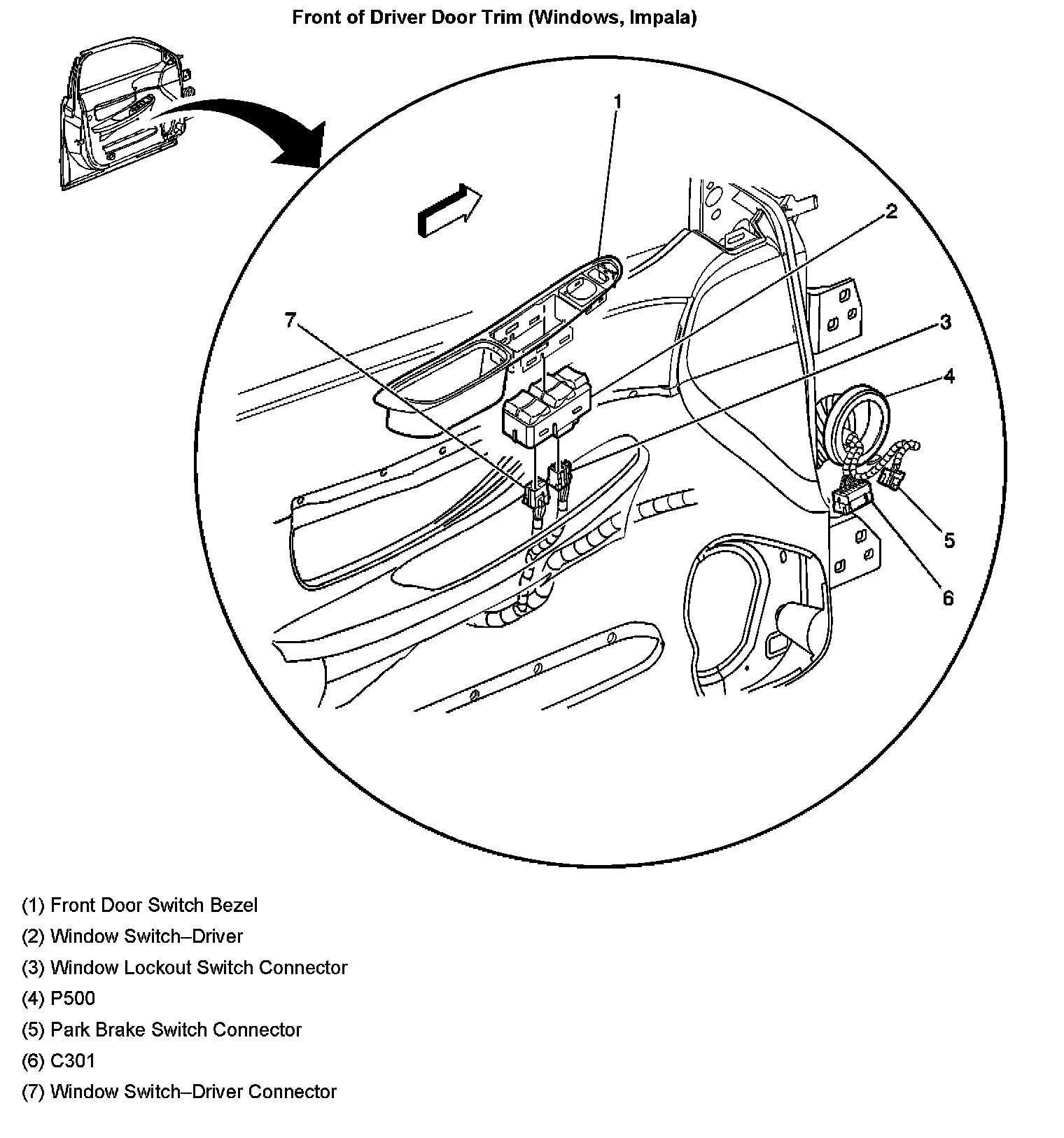

Front Of Driver Door Trim (Windows):

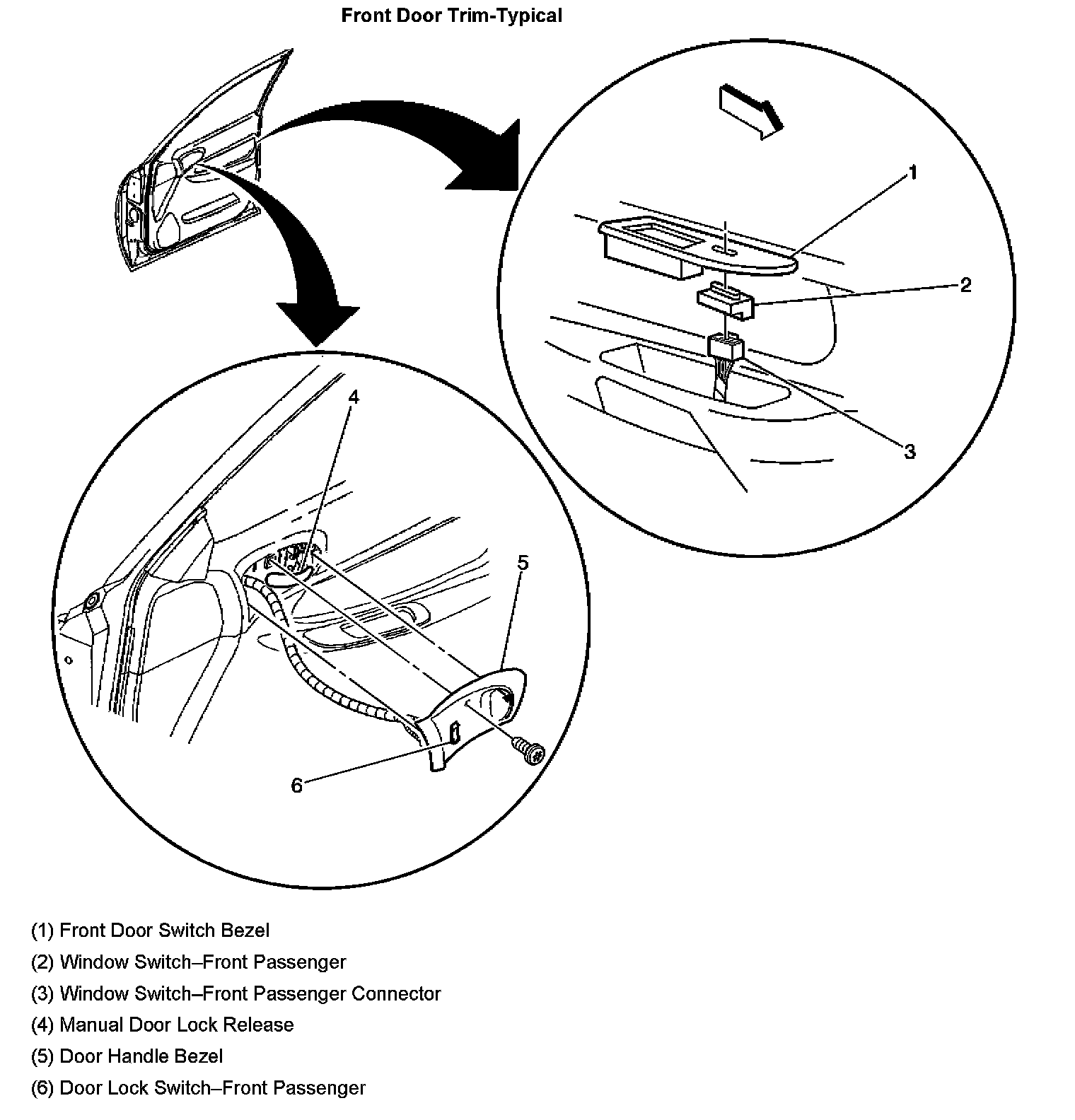

Front Door Trim-Typical:

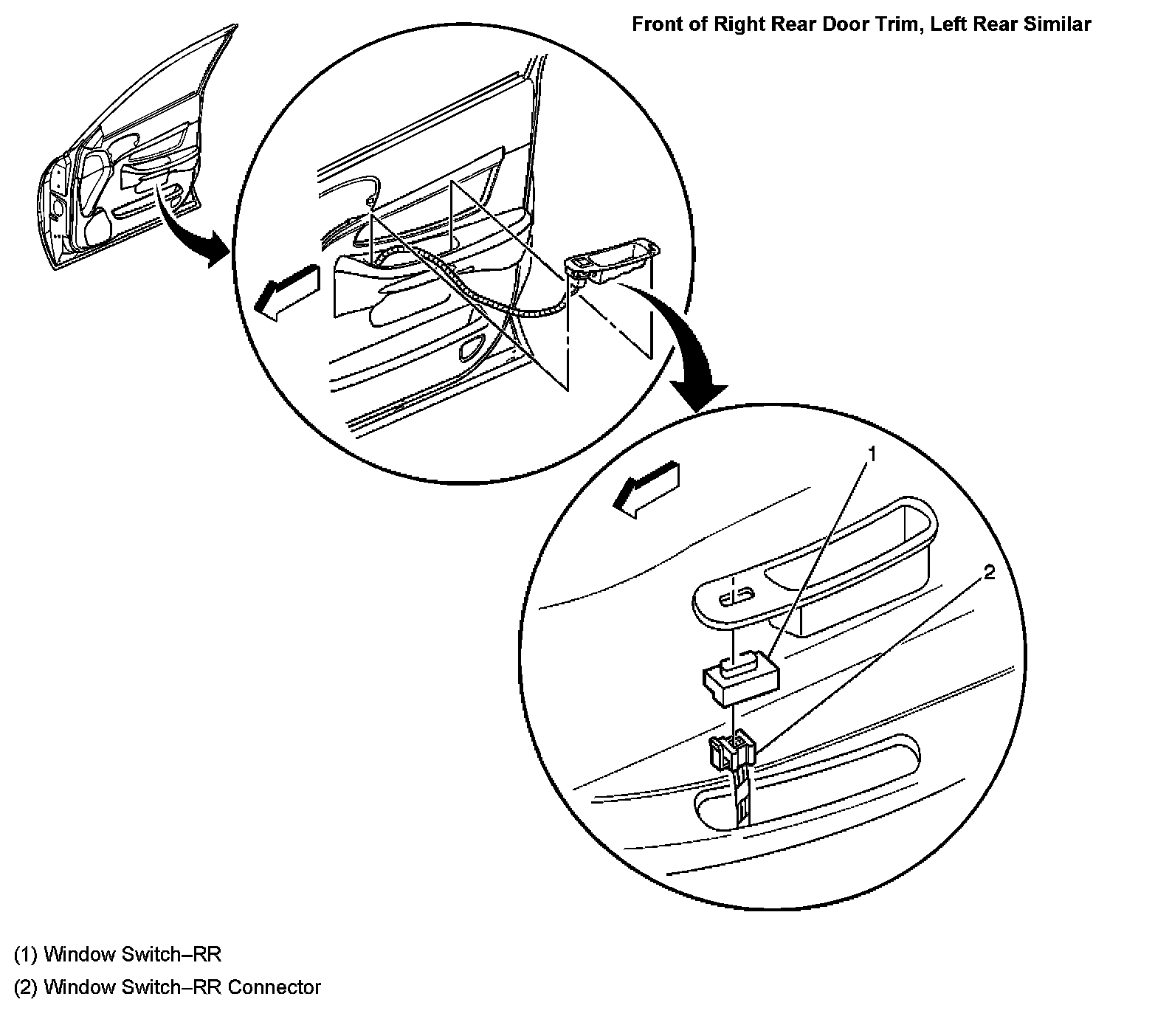

Front Of Right Rear Door Trim, Left Rear Similar:
