Installation Procedure

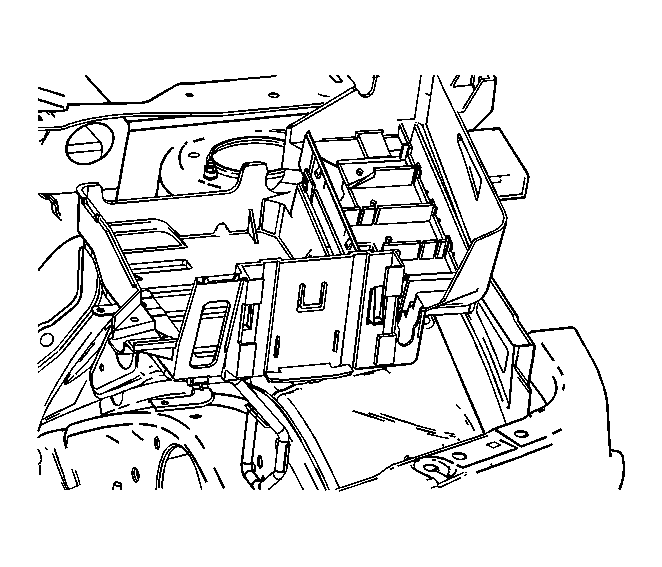

    Fig 1: Positioning Battery Bracket
    GM1239101Courtesy of GENERAL MOTORS CORP.
    NOTE: Refer to Fastener Notice in Cautions and Notices.
  1. Position the battery bracket and tighten the bolts.

    Tighten:  Tighten the battery tray bracket bolts to 16 N.m (12 lb ft).

    2. Fig 2: Installing Battery And Battery Tray Cover
    GM1239095Courtesy of GENERAL MOTORS CORP.
  2. Install the battery and battery tray cover. Refer to Battery Replacement .
