Cruise Control Inoperative/Malfunctioning




Cruise Control Inoperative/Malfunctioning

Test Description

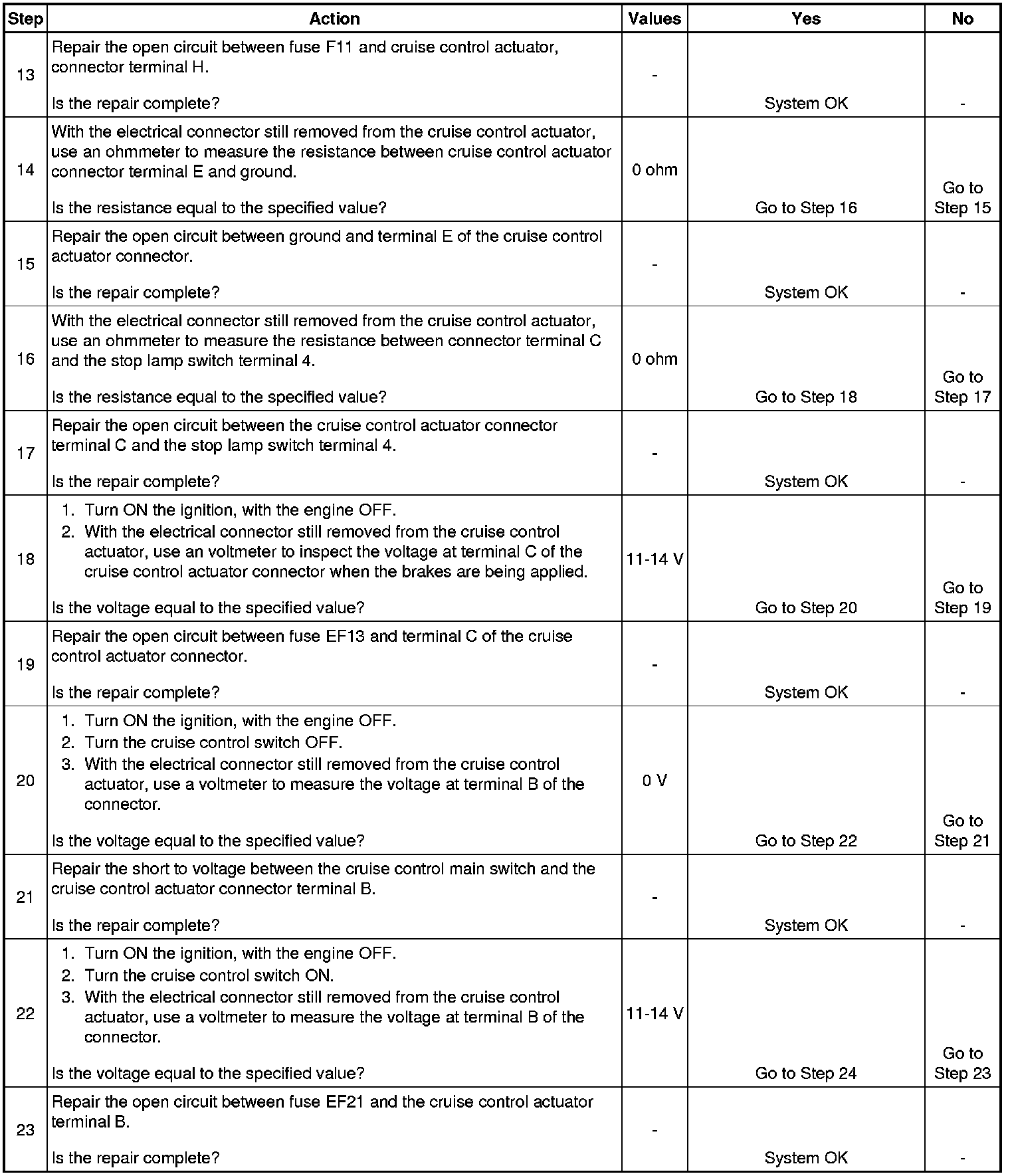

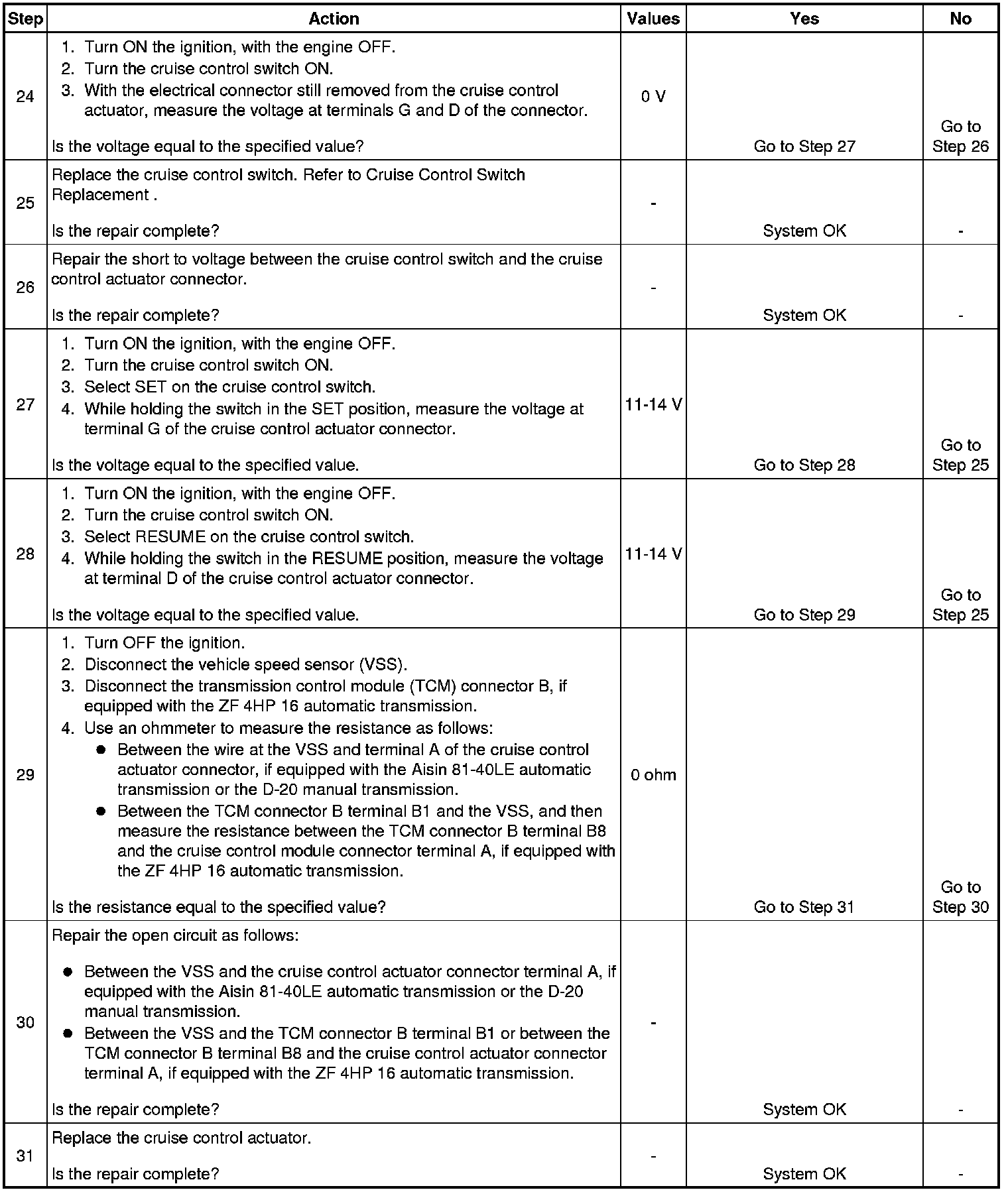

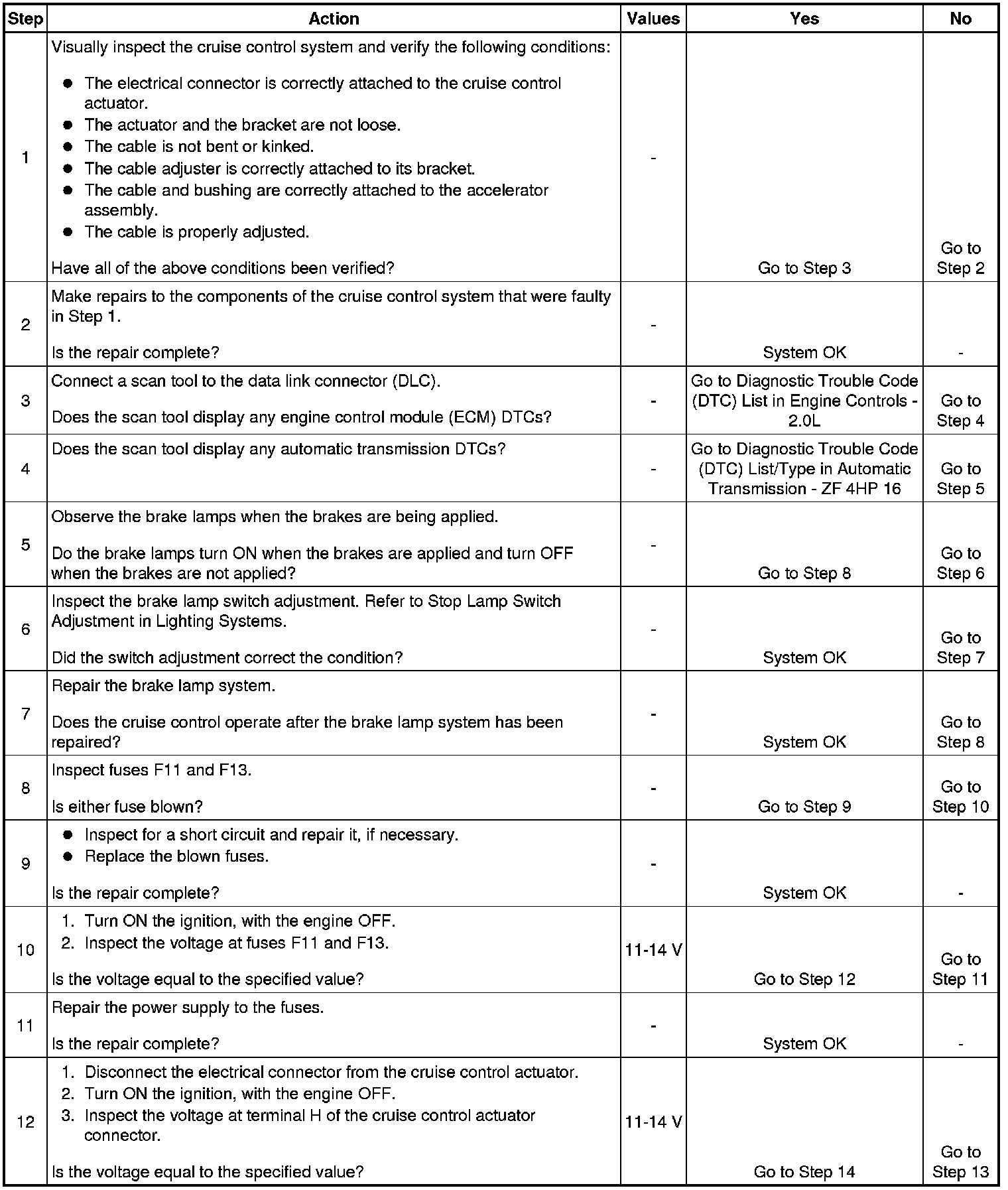

The numbers below refer to the step numbers on the diagnostic table.
5. The electromagnetic clutch in the cruise control actuator is grounded through the brake lamps.
